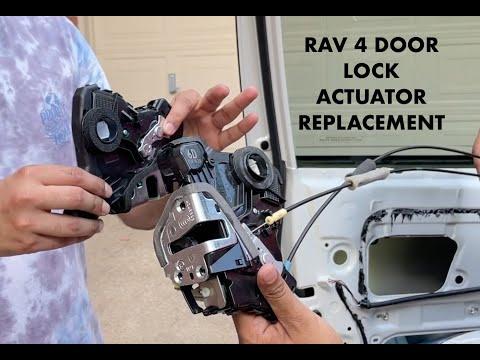

🔧 RAV4 - Rear Door Lock Actuator Replacement

The rear door lock actuator is usually built into the latch assembly, so the repair means removing the door trim panel, disconnecting the linkages, and swapping the latch/actuator unit. On your RAV4, this is a detailed but manageable job if you work carefully around the clips, wiring, and door handle rods.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. This helps prevent accidental short circuits and door lock operation.
• Be careful around the side airbag area inside the door. Do not probe yellow airbag connectors.
• Support the door trim panel as you remove it so you do not break the clips or stretch the wiring.
• Use care with the moisture barrier inside the door. Tear it and you may get water leaks later.
• Keep fingers clear of the latch and lock rods when testing the actuator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch ratchet
• Phillips screwdriver
• Trim panel tool
• Flat-blade screwdriver
• Needle-nose pliers
• Pick tool (specialty)
• Torque wrench
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Moisture barrier butyl tape - Qty: 1 roll

---

📋 Before You Begin

• Park on level ground and open the rear door fully.
• Turn the ignition off and remove the key/fob from the vehicle.
• Disconnect the negative battery cable and wait 90 seconds before touching door wiring.
• Roll the window fully up before disconnecting power.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel tool to pop the clips around the rear door panel.
• Use a Phillips screwdriver to remove the screws in the pull handle and behind any covers.
• Lift the panel upward to release it from the window ledge.
• Disconnect the electrical connectors for the window switch and courtesy light.

Step 2: Remove the moisture barrier

• Use a flat-blade screwdriver or pick tool (specialty) to carefully lift the butyl seal.
• Peel the barrier back slowly and keep it clean so it can be reused.
• Do not tear the seal.

Step 3: Disconnect the actuator linkages

• Use a pick tool (specialty) and needle-nose pliers to unclip the lock rod retainers.
• Disconnect the inside handle rod, outside handle rod, and lock rod from the latch assembly.
• Unplug the actuator electrical connector.

Step 4: Remove the latch/actuator assembly

• Use a 10mm socket and 1/4-inch ratchet to remove the latch mounting bolts from the door edge.
• Carefully guide the latch assembly out of the door cavity.
• If the rods hang up, move them gently rather than forcing them.
• Torque on installation: 7.5 Nm (66 in-lbs)

Step 5: Transfer rods and install the new assembly

• Move the rods and clips to the new latch/actuator assembly one at a time.
• Install the new assembly into the door and start all bolts by hand.
• Use the 10mm socket to tighten the bolts evenly.
• Torque to 7.5 Nm (66 in-lbs)

Step 6: Reconnect the electrical connector and test movement

• Reconnect the actuator electrical connector.
• Use your hand to cycle the lock lever and handle rods to make sure they move freely.
• Restore the battery connection briefly and test lock/unlock operation before reinstalling the door panel.
• Test before reassembly.

Step 7: Reinstall the moisture barrier and door panel

• Press the moisture barrier back into place using the existing butyl seal or new butyl tape.
• Reconnect the trim panel electrical connectors.
• Hang the panel on the window ledge and press the clips back in place.
• Use the Phillips screwdriver to reinstall all screws and covers.

---

✅ After Repair

• Cycle the rear door lock several times with the key fob, master switch, and inside lock knob.
• Open and close the rear door from inside and outside to confirm proper latch engagement.
• Check that the window switch, speaker, and courtesy light still work.
• Listen for abnormal clicking or binding from the latch.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
