🔧 Rear Door Lock Actuator - Replacement

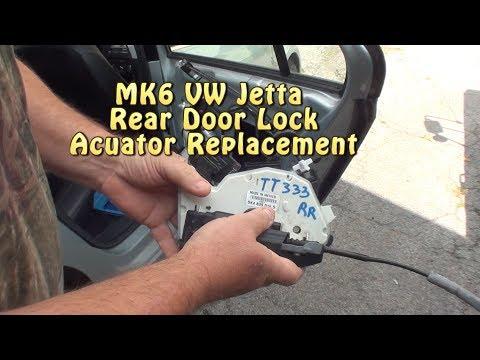

Your Jetta’s rear door lock actuator is inside the door latch assembly. To replace it, you’ll remove the rear door trim panel, disconnect the latch wiring, remove the latch from the door, and install the new actuator/latch assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work with the window fully up before starting.
• Disconnect the negative battery terminal if you want to avoid accidental power lock movement.
• The door trim has sharp edges and brittle clips. Pry slowly.
• Support the door panel as you remove the last fasteners so it does not drop.
• If your door has side airbag wiring, do not turn the ignition on with connectors unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool set
• Torx T20 screwdriver
• Torx T30 screwdriver
• 10mm socket
• Ratchet
• Extension bar
• Small flat-blade screwdriver
• Needle-nose pliers
• Flashlight
• Safety glasses
• Work gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator assembly - Qty: 1
• Door trim clip set - Qty: 1
• Vapor barrier adhesive or butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the rear window slightly if needed for trim access, then raise it fully before removal.
• If disconnecting the battery, save radio settings first.
• Keep all screws sorted by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim fasteners

• Use the Torx T20 screwdriver to remove the screws in the pull handle and lower door trim area.
• Use the small flat-blade screwdriver to carefully pry out any screw covers first.
• Remove the visible fasteners and set them aside in order.

Step 2: Pop off the door panel

• Use the trim removal tool set to release the door panel clips around the edges.
• Work slowly around the panel until all clips release.
• Lift the panel upward to unhook it from the window ledge.
• Start at a lower corner for easier clip release.

Step 3: Disconnect the wiring

• Use the small flat-blade screwdriver if needed to release the connector locks.
• Disconnect the door handle cable and any electrical connectors for the speaker or switch panel.
• Set the door panel aside on a soft surface.

Step 4: Peel back the vapor barrier

• Use your hands and the small flat-blade screwdriver to carefully lift the vapor barrier.
• Do not tear it. You will reuse it if it is still sealing well.
• If the adhesive is weak, plan to reseal it with vapor barrier adhesive or butyl tape.

Step 5: Remove the latch/actuator assembly

• Use the Torx T30 screwdriver to remove the door latch retaining bolts on the door edge.
• Use the 10mm socket with the ratchet and extension bar if your door uses 10mm fasteners at the latch bracket.
• Unclip the actuator rod or cable linkage carefully with the needle-nose pliers.
• Remove the latch/actuator assembly through the door access opening.
• Torque on installation: tighten the latch fasteners to 8 Nm (71 in-lbs).

Step 6: Install the new actuator/latch assembly

• Position the new rear door lock actuator assembly into the door.
• Reconnect the linkage rods or cables first, then seat the assembly fully.
• Install the fasteners by hand before tightening with the Torx T30 screwdriver or 10mm socket.
• Make sure the actuator wiring is routed exactly like the original.

Step 7: Test the latch before reassembly

• Reconnect the electrical connector and battery if you disconnected it.
• Use the door lock switch and key fob to test lock and unlock operation.
• Open and close the door several times to confirm smooth latch action.
• Test now to avoid double work.

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place and seal any gaps with vapor barrier adhesive or butyl tape.
• Reconnect all electrical connectors and the handle cable.
• Hook the door panel over the window ledge, then press the clips back in with the trim removal tool set.
• Reinstall all screws with the Torx T20 screwdriver.
• Torque on reassembly: snug the door panel screws to 2-3 Nm (18-27 in-lbs).

---

✅ After Repair

• Test the rear door lock with the key fob, interior switch, and manual lock knob.
• Check that the door opens from both inside and outside.
• Listen for any binding or clicking from the latch.
• Confirm the door panel sits flush and no clips are loose.

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹3,500-₹9,000 (parts only)

You Save: ₹4,500-₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,500-₹6,000/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
