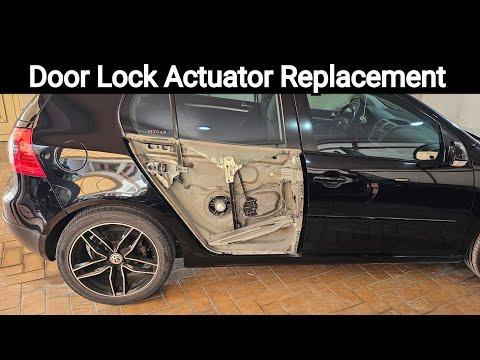

🔧 Rear Door Lock Actuator - Replacement

The rear door lock actuator is built into the latch assembly on your Golf. Replacing it means removing the interior door trim, disconnecting the latch cable and electrical connector, and installing the new actuator/latch assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before unplugging the door harness. This helps avoid module faults and accidental short circuits.
• Work with the window fully up and the door open.
• The door panel has clips that can break if forced. Pry gently and evenly.
• The latch is sharp and the door edge can pinch fingers. Keep hands clear while testing the lock.
• If the rear door has a side airbag in the trim, do not use a test light on airbag wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim removal tool set
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• 3mm flat trim tool
• Ratchet
• Small pick tool
• Needle-nose pliers
• 10mm wrench
• Torque wrench
• Plastic panel clip tool
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator assembly - Qty: 1
• Door panel clip set - Qty: 1
• Door latch sealing tape or foam barrier material - Qty: 1
• Door handle cable clip - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the affected rear door fully.
• Lower the window before disconnecting the battery if the window is currently not in a safe position.
• Turn the ignition off and remove the key/fob from the cabin.
• Disconnect the negative battery terminal using a 10mm wrench.
• Keep track of every screw and clip.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door panel trim pieces

• Use a trim removal tool set to pry off the small trim caps around the interior pull handle and door panel screws.
• Use a Torx T20 screwdriver to remove the exposed screws.
• If your door has a lower speaker or courtesy light, disconnect the electrical connector carefully.

Step 2: Release the door panel clips

• Use a plastic panel clip tool to pop the panel away from the door shell, starting at the bottom edge.
• Work around the perimeter one clip at a time.
• Do not yank the panel upward first.

Step 3: Disconnect the panel and cables

• Lift the panel upward to unhook it from the top window ledge.
• Use a small pick tool to release the interior handle cable from the handle lever.
• Unplug any remaining connectors from the door panel and set the panel aside.

Step 4: Peel back the moisture barrier

• Use a 3mm flat trim tool to carefully lift the adhesive moisture barrier without tearing it.
• Peel back only as far as needed to reach the latch area.
• Keep the adhesive clean for reassembly.

Step 5: Remove the outer handle and latch connections

• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove the latch access fasteners visible through the door openings.
• Use a small pick tool to release the Bowden cable and connector locks from the latch/actuator assembly.
• Disconnect the electrical connector from the actuator.

Step 6: Remove the lock actuator/latch assembly

• Use a Torx T30 screwdriver to remove the latch mounting screws from the door edge.
• Support the latch with one hand as you remove the last screw.
• Slide the actuator/latch assembly out through the service opening in the door.
• Watch the cable routing before pulling it free.

Step 7: Install the new actuator/latch assembly

• Transfer any cable guides or brackets from the old unit if the new part does not include them.
• Slide the new actuator/latch assembly into position.
• Reconnect the electrical connector and latch cable.
• Install the latch screws with the Torx T30 screwdriver.
• Torque to factory specification.

Step 8: Test the latch before closing the door

• Reconnect the battery temporarily if needed.
• Use the interior handle and the remote lock button to verify the latch opens and locks correctly.
• Make sure the door opens from inside and outside before reinstalling the trim.
• Test now to avoid removing the panel twice.

Step 9: Reinstall the moisture barrier and door panel

• Press the moisture barrier back into place.
• Hang the door panel on the top window ledge first.
• Reconnect all connectors and the interior handle cable.
• Use your hands to press the clips into place around the panel edge.
• Reinstall the Torx screws with the Torx T20 screwdriver.
• Torque to factory specification.

---

✅ After Repair

• Lock and unlock the rear door several times with the key fob.
• Test the inside handle, outside handle, and child lock function.
• Check that the door closes cleanly and sits flush with the body.
• If a door module fault was stored, clear codes with a scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
