🔧 Versa - Rear Door Lock Actuator Replacement

You’ll remove the rear door interior trim panel, access the latch/actuator inside the door, swap the faulty actuator (often built into the latch), then reassemble and test the power lock. This fixes issues like the rear door not locking/unlocking with the switch or key fob, or making weak clicking noises.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

Assumption: Your Versa has power locks and the rear actuator is part of the door latch assembly (most common).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce short-circuit risk.
• ⚠️ Watch for sharp inner-door metal edges; wear gloves.
• ⚠️ Don’t tear the moisture barrier (plastic sheet); it prevents water leaks into the cabin.
• ⚠️ Support the door panel as you unplug connectors so you don’t pull wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Phillips #2 screwdriver
• Flat-blade screwdriver (small)
• 10mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Torx T30 bit
• Needle-nose pliers
• Pick tool (small)
• Torque wrench (in-lb or low Nm range)
• Painter’s tape
• Flashlight
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator - Qty: 1
• Rear door latch assembly (if actuator is integrated) - Qty: 1
• Door panel retainer clips - Qty: 6-10
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key from the car.
• Lower the rear window about halfway so you can grip the panel and work comfortably.
• Use a 10mm socket to disconnect the negative battery terminal and isolate it so it can’t spring back. Wait 2 minutes before unplugging connectors.
• Put painter’s tape around the interior pull handle and door edges to help prevent scuffs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch/trim pieces

• Use a trim removal tool set (a plastic pry tool) to gently pry up the rear window switch bezel.
• Unplug the switch connector by releasing the tab with a pick tool (small).
• Use a flat-blade screwdriver (small) to pop off any small screw covers in the pull handle area.

Step 2: Remove the rear door panel screws

• Use a Phillips #2 screwdriver to remove the screw(s) in the interior pull handle pocket.
• If equipped, remove any lower-edge panel screw(s) with the Phillips #2 screwdriver.
• Place screws in a magnetic parts tray so they don’t disappear inside the door.

Step 3: Pop the door panel clips free

• Start at the bottom corner. Slide in a trim removal tool set and pop each clip loose one-by-one.
• When all clips are released, lift the panel straight up to unhook it from the window ledge.
• Support the panel and disconnect any remaining connectors using a pick tool (small).

Step 4: Remove the moisture barrier (plastic sheet)

• Use a trim removal tool set to peel the barrier back slowly.
• If the sticky sealant stretches, use a pick tool (small) to help separate it without tearing the plastic.
• Keep the barrier clean; dirt prevents it from resealing and can cause water leaks.

Step 5: Locate the latch/actuator and unplug it

• Shine a flashlight into the rear edge of the door (near the latch) to find the latch/actuator assembly.
• Unplug the electrical connector by pressing the tab with a pick tool (small) and pulling straight off.

Step 6: Disconnect the lock/unlock linkage

• Inside the door, you’ll see metal rods (linkages) going to the latch. Use needle-nose pliers to rotate the small plastic retaining clips off the rod.
• Slide the rod out of the clip hole and move the rod aside.
• Tip: Take a quick photo before removing rods.

Step 7: Remove the door latch screws at the door edge

• Open the rear door and locate the 3 latch screws on the door’s trailing edge.
• Use a Torx T30 bit with a 1/4" ratchet and 6" extension for 1/4" ratchet to remove the latch screws.
• Hold the latch from inside the door as the last screw comes out so it doesn’t drop.

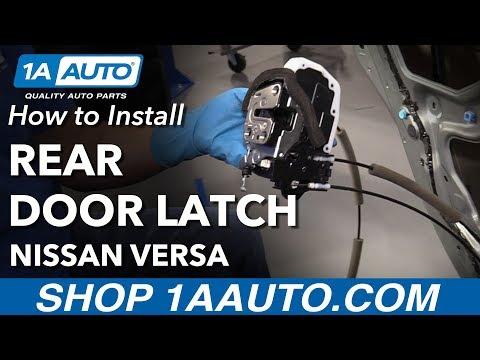

Step 8: Remove the latch/actuator assembly from the door

• Carefully maneuver the assembly out through the service opening using your hands and a flashlight for visibility.
• If it snags, check for a missed linkage clip and release it using needle-nose pliers.

Step 9: Swap the actuator (two common designs)

• Most common (integrated unit): Install the new rear door latch assembly (actuator built-in) in the same orientation as the old one.
• Less common (separate actuator on latch): Use a 10mm socket or Phillips #2 screwdriver (varies by part) to remove the actuator fasteners, transfer it, then reinstall.

Step 10: Reinstall the latch and torque the latch screws

• Position the assembly back into the door and align it to the door-edge holes.
• Start all latch screws by hand to avoid cross-threading, then tighten with a Torx T30 bit.
• Torque to 7.5 Nm (66 in-lb) using a torque wrench (in-lb or low Nm range).

Step 11: Reconnect linkages and the electrical connector

• Reinsert each rod into its hole, then rotate the plastic clip back over the rod using needle-nose pliers.
• Plug the actuator connector back in until it clicks.
• Before closing the door, move the inside handle and lock rod by hand to confirm nothing binds.

Step 12: Reinstall the moisture barrier

• Press the barrier back onto the original adhesive.
• If it won’t stick well, apply butyl tape (moisture barrier adhesive) for a continuous seal along the perimeter.

Step 13: Reinstall the door panel

• Reconnect the window switch connector using your hands (no force).
• Hook the top of the panel onto the window ledge, then press down to seat it.
• Line up the clips and smack around the edges with the palm of your hand to fully seat them.
• Reinstall screws with a Phillips #2 screwdriver (snug only).
• Snap the trim covers back on using a trim removal tool set.

Step 14: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Test the rear door lock with the key fob, driver switch, and the inside lock knob.
• Open/close the rear door several times and confirm it latches securely every time.
• Confirm the rear window switch works and the door panel sits flush with no rattles.
• If water leaks happen later, recheck the moisture barrier seal and add butyl tape as needed.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $190-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
