🔧 TITAN XD - Rear Door Lock Actuator Replacement

On your TITAN XD, the rear door lock actuator is typically built into (or attached to) the door latch assembly. Replacement involves removing the interior door panel, peeling back the moisture barrier, disconnecting the linkage rods and electrical connector, then swapping the actuator/latch and reassembling.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Rear actuator is part of the rear door latch assembly (most common).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before unplugging door wiring to help prevent accidental airbag/SRS issues and avoid shorts.
• ⚠️ Use a trim tool to avoid cutting your hands on sharp door metal edges.
• ⚠️ Do not tear the moisture barrier; it prevents water leaks into the cab.
• ⚠️ Keep the window fully up while working inside the door.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Door panel clip pliers
• Phillips screwdriver #2
• Flat screwdriver 5mm
• Pick tool set
• Needle-nose pliers
• Ratchet 3/8"
• Socket 10mm
• Extension 6"
• Torx T30 bit socket
• Torque wrench 3/8" (10-80 Nm range)
• Painter’s tape 1"
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator / door latch assembly - Qty: 1
• Door panel retaining clips - Qty: 6-12
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the rear window fully up.
• Open the rear door you’re working on and leave it open.
• Use a 10mm socket to disconnect the battery negative cable and isolate it so it can’t spring back.
• Put painter’s tape 1" along the door edge/paint where tools may touch.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door handle trim

• Use a trim removal tool set to gently pry off the small trim bezel around the inside door handle.
• If there’s a small cover hiding a screw, lift it with a pick tool set.

Step 2: Remove screws holding the door panel

• Remove visible screws in the pull handle/armrest area using a Phillips screwdriver #2 (some trucks may use 10mm socket instead).
• Keep screws organized by location. Egg carton works great.

Step 3: Pop the door panel clips loose

• Slide a trim removal tool set under the bottom edge of the panel and pry outward to release the clips.
• Use door panel clip pliers to pull stubborn clips straight out (this reduces breakage).

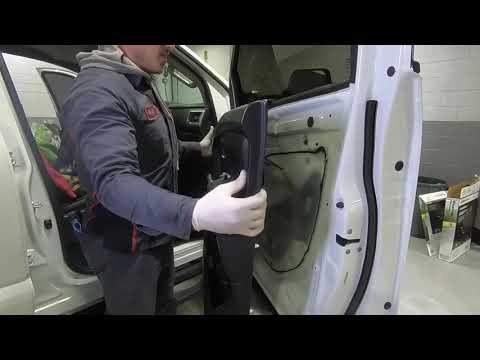

Step 4: Lift the door panel up and unplug electrical connectors

• Lift the panel straight up to unhook it from the top lip by the window.
• Support the panel and unplug connectors (window/lock switch, courtesy light) by pressing the tab and pulling using needle-nose pliers only if needed.
• A pick can help press connector tabs. Use the pick tool set gently.

Step 5: Peel back the moisture barrier

• Carefully peel the plastic moisture barrier back from the rear-latch area using a trim removal tool set.
• Try to keep the black sticky adhesive (butyl) on the door, not on the plastic.

Step 6: Disconnect the linkage rods from the latch

• Locate the metal rods going to the latch (inside handle rod, lock rod).
• Each rod usually has a colored plastic retainer clip. Use a pick tool set to flip the retainer open, then lift the rod out.
• Uncommon term: A “linkage rod” is the metal rod that transfers handle/lock movement to the latch.

Step 7: Unplug the latch/actuator electrical connector

• Unplug the actuator connector by pressing the lock tab and pulling straight off.
• If it’s tight, use a pick tool set to press the tab while pulling the connector (do not pull on wires).

Step 8: Remove the latch/actuator from the door

• At the door’s rear edge (latch side), remove the latch mounting screws using a Torx T30 bit socket with a ratchet 3/8" and extension 6".
• Support the latch inside the door with your free hand so it doesn’t drop.
• Work the latch assembly out through the access opening.
• Torque on install (typical for Nissan door latch fasteners): Torque to 7-9 Nm (62-80 in-lbs)

Step 9: Swap the actuator (if separate) or install the new latch/actuator assembly

• If your replacement is the full assembly, skip disassembly and move to installation.
• If the actuator is separate on your version, transfer it from the latch using a Phillips screwdriver #2 or Torx T30 bit socket (fasteners vary), then install the new actuator onto the latch.
• Make sure the actuator is fully seated and not pinching any wiring.

Step 10: Reinstall the latch/actuator and reconnect everything

• Position the latch back into the door and start the Torx screws by hand.
• Tighten using a Torx T30 bit socket and ratchet 3/8", then Torque to 7-9 Nm (62-80 in-lbs) with a torque wrench 3/8".
• Reconnect the electrical connector until it clicks.
• Reconnect linkage rods and snap the colored retainers fully closed.

Step 11: Re-seal the moisture barrier

• Press the moisture barrier back into the butyl adhesive.
• If the butyl is messy or won’t stick, apply butyl tape to reseal gaps.

Step 12: Reinstall the door panel

• Plug in all door electrical connectors (switches/lights) before hanging the panel.
• Hang the panel on the top lip by the window, then press the clips in around the perimeter.
• Reinstall screws using a Phillips screwdriver #2 or 10mm socket (whichever your door uses).
• Torque for small interior screws (safe guideline): Torque to 2-3 Nm (18-27 in-lbs)

Step 13: Reconnect the battery

• Reconnect the negative cable using a 10mm socket.
• Make sure it’s snug and fully seated on the terminal.

---

✅ After Repair

• Test the rear door lock using the key fob, driver switch, and manual lock knob.
• Verify the inside and outside handles open the door normally.
• Turn the child safety lock on/off (rear door edge switch) and confirm it works.
• Check the window switch and door courtesy light operation.
• Listen for smooth actuator operation (no grinding/clicking).

---
