🔧 Grand Cherokee - Rear Door Lock Actuator Replacement

The rear door lock actuator is built into the rear door latch assembly on your Grand Cherokee. Replacing it means removing the inner door panel, disconnecting the handle/lock cables and wiring, then swapping the latch/actuator and reassembling.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce the chance of an airbag/BCM fault.
• ⚠️ Do not probe yellow airbag connectors; avoid pulling on wiring.
• ⚠️ Support the window glass if you loosen any window carrier fasteners.
• ⚠️ Keep the key/fob away from the vehicle while working to prevent accidental locking/unlocking cycles.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torx T20 screwdriver
• Torx T30 screwdriver
• Trim/panel removal tool set
• Small flat-blade screwdriver
• Pick tool
• Needle-nose pliers
• Painters tape
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly - Qty: 1
• Rear door trim panel clips - Qty: 4-10
• Butyl tape for vapor barrier - Qty: 1

---

📋 Before You Begin

• Park on level ground and lower the rear window glass about halfway.
• Turn ignition OFF and keep the key/fob at least 15 feet away.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Put painters tape along the door edge and around the handle area to protect paint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which rear door and handle type

• Before you start ordering/tearing down: is this the left rear or right rear door?
• Does that door have Passive Entry (a small black button/sensor on the outside door handle)?

Step 2: Remove the inner door pull/trim fasteners

• Use a trim/panel removal tool set to carefully pry off the small trim covers in the door pull and behind the inner handle area (if equipped).
• Remove screws using a Torx T20 screwdriver and/or Torx T30 screwdriver (screw type varies by build/options).

Step 3: Pop the door panel loose

• Start at the bottom edge: slide in a trim/panel removal tool set and pop the clips out one by one.
• Lift the whole panel straight up to unhook it from the window ledge.
• Work slowly—clips break easily.

Step 4: Disconnect switches and the inner handle cable

• Unplug the door switch connectors using a pick tool or small flat-blade screwdriver to release the lock tabs.
• Disconnect the inner door handle cable: rotate the cable housing out of its bracket, then unhook the cable end from the handle lever (use needle-nose pliers if tight).

Step 5: Remove the vapor barrier (water shield)

• Carefully peel the vapor barrier back using a trim/panel removal tool set.
• If the adhesive tears, plan to reseal it with butyl tape during reassembly.

Step 6: Disconnect the latch/actuator electrical connector

• Locate the latch connector near the rear door latch area and unplug it using a pick tool to release the tab.
• Free the harness from any plastic retainers using a small flat-blade screwdriver.

Step 7: Detach the exterior handle linkage (if required)

• Some builds use a cable/rod from the exterior handle to the latch that must be released for latch removal.
• Use a pick tool to open the plastic retainer, then unhook the rod/cable end (use needle-nose pliers if needed).
• Note the routing before removing.

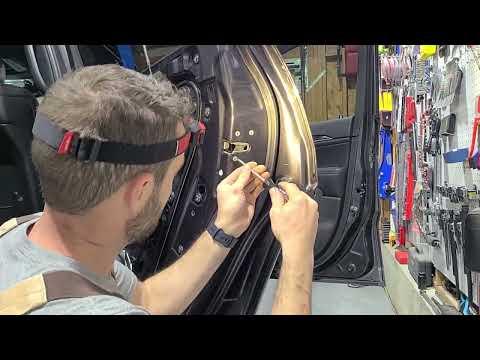

Step 8: Remove the door latch/actuator assembly

• At the door edge, remove the latch mounting screws using a Torx T30 screwdriver.
• Support the latch with your hand and pull it inward through the access opening.
• Torque to 8 Nm (71 in-lbs) on reinstallation.

Step 9: Transfer any brackets and install the new latch/actuator

• If the old latch has a bracket or foam isolator, move it over to the new unit (use a small flat-blade screwdriver as needed).
• Position the new latch into the door and align it to the mounting holes.
• Install the latch screws using a Torx T30 screwdriver, then Torque to 8 Nm (71 in-lbs).

Step 10: Reconnect linkages and the electrical connector

• Reconnect the exterior handle linkage and snap the retainer fully closed (use a pick tool to verify it’s seated).
• Plug in the latch connector until it clicks.
• Re-secure harness retainers using a small flat-blade screwdriver.

Step 11: Reinstall vapor barrier

• Press the vapor barrier back into place by hand.
• If it won’t stick, apply butyl tape and press firmly around the perimeter.

Step 12: Reinstall the door panel

• Reconnect the inner handle cable and all electrical connectors (use a pick tool if lock tabs are stubborn).
• Hang the door panel on the upper window ledge and push straight down to seat it.
• Press the clips in around the perimeter using your palms.
• Reinstall screws using a Torx T20 screwdriver / Torx T30 screwdriver as removed.
• Torque to 2.5 Nm (22 in-lbs) for door-trim screws (snug, do not overtighten).

Step 13: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 6 Nm (53 in-lbs).

---

✅ After Repair

• With the door open, test: lock/unlock from the switch, from the key/fob, and by pulling both inner and outer handles.
• Close the door and confirm it latches smoothly and doesn’t bounce back.
• Verify the rear door “ajar” warning works correctly.
• If a warning light appears after reconnecting the battery, use a capable scan tool to check for stored body/door module codes.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $160-$300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
