🔧 Transit Connect - Rear Door Lock Actuator Replacement

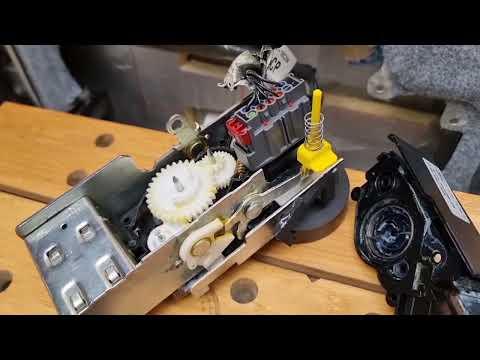

The rear door lock actuator is the electric motor/gear unit that locks and unlocks the rear door. When it fails, you may hear clicking, get intermittent locking, or the door won’t lock/unlock with the fob or switch.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.5 hours

Assumption: Rear door is either a liftgate or split rear cargo doors—steps below cover both.

---

⚠️ Safety & Precautions

• 🧯 Disconnect the negative battery cable before unplugging door wiring to prevent accidental shorting.
• 🧤 Wear gloves—door inner panels and stamped metal edges can be sharp.
• 👓 Use eye protection when popping trim clips; they can release suddenly.
• 🔥 If the vehicle was running, let the rear area cool before working near interior plastics.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Phillips screwdriver
• Flat-blade screwdriver
• Torx T20 driver
• Torx T25 driver
• Torx T30 driver
• 1/4" drive ratchet
• 6" 1/4" drive extension
• 8mm socket
• 10mm socket
• Pick tool
• Needle-nose pliers
• Magnetic pickup tool
• Flashlight
• Painter’s tape
• Small torque wrench (inch‑pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator (rear door/liftgate as equipped) - Qty: 1
• Rear door trim panel clips (as needed) - Qty: 1 set
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and remove the key/fob from the vehicle.
• 🔋 Open the hood and disconnect the negative battery terminal using a 10mm socket.
• 💡 Open the rear door you’re working on and support it fully (don’t let it swing while the trim is off).
• 🧷 Put painter’s tape around trim edges to help prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior rear door trim panel

• Use a flashlight to locate any screws hidden behind small covers.
• Remove screws using a Phillips screwdriver or Torx T20/T25 driver (varies by panel).
• Use a trim removal tool set (plastic) to pop the panel clips free. A trim tool is a plastic pry tool that releases clips without damaging the panel.
• If a clip won’t release, use a flat-blade screwdriver gently at the clip location, then continue with the trim tool.
• Lift the panel up and off (some panels hook over an edge), then set it aside.

Step 2: Peel back the vapor barrier (water shield)

• Carefully peel the plastic vapor barrier back using your hands and a trim removal tool set (plastic).
• If the adhesive stretches, use a pick tool to separate it without tearing the plastic.
• Tip: Keep the barrier clean for resealing.

Step 3: Identify your rear door style (choose A or B)

• A: Liftgate — actuator/lock is usually centered at the latch area.
• B: Split rear cargo doors — actuator/lock is on the door’s latch edge.

Step 4: Disconnect the actuator electrical connector

• Locate the lock actuator connector near the latch.
• Press the tab and unplug it by hand; if it’s stubborn, use a pick tool to gently lift the tab while pulling.
• Use a flashlight so you don’t break the connector lock.

Step 5: Disconnect the lock rods/cables

• Look for metal rods (or a cable) running from the handle/lock cylinder to the latch/actuator.
• Use needle-nose pliers to rotate the plastic retaining clip open, then lift the rod out.
• For a cable-style connection, use a pick tool to release the cable end from its bracket, then unhook the cable ball end.
• Tip: Take a quick photo before disassembly.

Step 6: Remove the latch/actuator fasteners

• From the door edge, remove the latch/actuator screws using a Torx T30 driver.
• If there are additional mounting bolts inside the door, remove them using an 8mm socket with a 1/4" drive ratchet and 6" 1/4" drive extension.
• Use a magnetic pickup tool to catch any fastener that tries to fall into the door.
• Torque: Tighten fasteners to Ford service specification using a small torque wrench (inch‑pound).

Step 7: Remove the actuator assembly

• Work the latch/actuator out through the access opening.
• If it hangs up, re-check for one more rod/cable or a hidden screw using a flashlight.

Step 8: Install the new actuator

• Position the new actuator/latch assembly the same way the old one came out.
• Start all screws/bolts by hand first to prevent cross-threading.
• Tighten using a Torx T30 driver and/or 8mm socket.
• Torque: Tighten fasteners to Ford service specification using a small torque wrench (inch‑pound).

Step 9: Reconnect rods/cables and electrical connector

• Reconnect each rod and close the plastic retaining clips using needle-nose pliers if needed.
• Plug the actuator connector back in until it clicks.

Step 10: Function-check before reassembly

• Reconnect the battery negative terminal using a 10mm socket.
• Test lock/unlock using the key fob and the interior lock switch.
• Test the exterior handle operation with the door open (simulate closed latch carefully by hand only).
• Disconnect the battery again with a 10mm socket before reinstalling the vapor barrier and trim.

Step 11: Reinstall the vapor barrier and trim panel

• Press the vapor barrier back into place; use butyl tape where adhesive is no longer sticky.
• Align the trim panel and press clips in firmly by hand.
• Reinstall screws using a Phillips screwdriver or Torx T20/T25 driver.

Step 12: Final battery connection

• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• 🔒 Verify the rear door locks/unlocks 10+ times with the fob and switch (consistent operation).
• 🚪 Confirm the door opens from inside/outside and fully latches when closed.
• 💧 After the next car wash or rain, check the inside of the rear door for moisture (vapor barrier seal check).
• 🛑 If the lock works but the door won’t open, stop and re-check rod/cable routing (it may be mis-clipped).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $190-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
