🔧 Expedition - Rear Door Lock Actuator Replacement

On your Expedition, the rear door “lock actuator” is part of the door latch assembly (the mechanism on the door edge that actually grabs the striker and locks/unlocks). Replacing it means removing the interior door panel, peeling back the water shield, swapping the latch/actuator unit, then reassembling carefully so the door locks and opens correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: procedure applies to either rear door; steps are the same for left or right.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce risk of short circuits and accidental airbag issues.
• ⚠️ Watch for sharp metal edges inside the door; wear gloves.
• ⚠️ Support the door panel as you remove it; don’t let it hang by the wiring.
• ⚠️ Keep the water shield (vapor barrier) intact; it prevents leaks and window fogging.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim panel removal tool set
• Panel clip pliers
• Pick tool
• Phillips screwdriver #2
• Flat-blade screwdriver (small)
• Torx T20 bit
• Torx T30 bit
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension
• Torque wrench (in-lb or Nm)
• Needle-nose pliers
• Flashlight
• Painter’s tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly (Rear Left) - Qty: 1
• Rear door latch/lock actuator assembly (Rear Right) - Qty: 1
• Door panel retaining clips - Qty: 4-10
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key away from the vehicle.
• Lower the rear window about halfway (gives you hand room inside the door).
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• Put painter’s tape along painted edges near the door panel to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

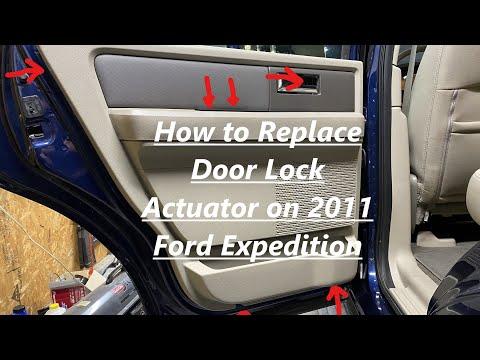

Step 1: Remove the rear interior door trim panel

• Use a trim panel removal tool set to gently pry up the window/lock switch bezel.
• Unplug the switch connector(s) by pressing the lock tab (use a pick tool if needed).
• Remove any visible door pull/handle screws using a 7mm socket or Phillips screwdriver #2 (some panels use Phillips; use what matches your screws).
• Starting at the bottom edge, use the trim panel removal tool set and/or panel clip pliers to pop the panel clips free.
• Lift the door panel straight up to unhook it from the window ledge, then support it close to the door.
• Unplug remaining connectors (courtesy light, speaker, etc.).
• Tip: pop clips near the corners first.

Step 2: Remove the water shield (vapor barrier)

• Use a trim panel removal tool set to peel the water shield back slowly.
• If the butyl adhesive is stubborn, warm it slightly by hand and work gradually—don’t rip the shield.
• Peel back only what you need to access the latch area at the rear of the door.
• Tip: keep the shield clean for resealing.

Step 3: Disconnect the latch/actuator electrical connector

• Locate the latch/actuator connector near the rear edge of the door (wiring runs to the latch).
• Press the tab and unplug it; use a pick tool gently if the tab is hard to reach.

Step 4: Disconnect the inside handle cable/rod from the latch

• Find the inside handle linkage going to the latch (often a cable with a clipped-in housing).
• Use a flat-blade screwdriver (small) to open the retaining clip, then lift the cable housing out of its bracket.
• Unhook the cable end from the latch lever using needle-nose pliers if needed.
• Tip: take a photo before removal.

Step 5: Remove the latch/actuator assembly from the door

• On the door edge (rear seam), remove the latch mounting screws using a Torx T30 bit and 1/4" drive ratchet.
• Support the latch inside the door as you remove the last screw so it doesn’t drop.
• Work the latch assembly out through the access opening in the door.
• Torque on install: Torque to 8 Nm (71 in-lbs) for the latch mounting screws.

Step 6: Install the new latch/lock actuator assembly

• Compare the old and new units (connector location, levers, and mounting points).
• Slide the new latch into position inside the door.
• Start all latch screws by hand, then tighten with a Torx T30 bit.
• Torque: Torque to 8 Nm (71 in-lbs).

Step 7: Reconnect the cable/rod and electrical connector

• Hook the inside handle cable end back onto the latch lever.
• Seat the cable housing into its bracket and lock the retaining clip using a flat-blade screwdriver (small).
• Plug the latch/actuator connector back in until it clicks.

Step 8: Quick functional check (before reassembly)

• Reconnect the negative battery cable using a 10mm socket.
• With the door open, use the key fob to lock/unlock and listen/feel for solid actuator movement.
• Carefully “simulate” a closed door by rotating the latch with a flat-blade screwdriver (small), then test the inside handle release.
• After testing, open the latch again (pull handle while moving latch back) so you don’t slam the door shut with the latch in the closed position.
• Disconnect the negative battery cable again using a 10mm socket before final reassembly.

Step 9: Reinstall the water shield and door panel

• Press the water shield back into the butyl; add butyl tape where it no longer sticks well.
• Reconnect all door panel electrical connectors.
• Hang the top of the door panel on the window ledge, then press the panel inward to seat the clips.
• Reinstall screws with a 7mm socket / Phillips screwdriver #2 as removed.
• Snap the switch bezel back in place using your hands (no tools if possible).
• Torque (small interior fasteners): Torque to 2 Nm (18 in-lbs) (snug, do not over-tighten).

Step 10: Final battery connection

• Reconnect the negative battery cable using a 10mm socket and tighten securely.

---

✅ After Repair

• Test from all controls: key fob lock/unlock, driver door lock switch, and the inside rear door lock switch.
• Confirm the rear door opens from inside and outside, and that the child safety lock (if equipped) behaves normally.
• Drive once and recheck: listen for rattles (a loose clip) and verify the water shield is sealed (no wind noise or water leaks).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
