🔧 Express - Rear Door Lock Actuator Replacement

On your Express, the rear door power lock actuator is typically part of (or attached to) the rear door latch assembly inside the door. Replacement involves removing the inside trim panel, peeling back the water shield, swapping the latch/actuator, then reattaching the link rods and wiring.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: rear swing (barn) door latch/actuator assembly.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable to prevent accidental airbag/shorts while unplugging door wiring.
• ⚠️ Watch for sharp door edges inside the door shell; wear gloves.
• ⚠️ Support the rear door so it won’t swing while you work (wind can slam it).
• ⚠️ Keep the water shield (plastic sheet) intact; it prevents leaks and corrosion.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Flat trim clip pry tool
• Ratchet
• 3/8" drive extension set
• 7mm socket
• 10mm socket
• Torx T30 bit
• Phillips screwdriver #2
• Small pick tool
• Needle-nose pliers
• Painter’s tape
• Torque wrench (inch-pound or small Nm range)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator / latch assembly - Qty: 1
• Door trim panel retainer clips - Qty: 6-12
• Butyl sealant tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• 🧰 Open the rear door you’re repairing fully, and keep it from swinging (use a door strap or have a helper steady it).
• 🔋 Disconnect the negative battery cable using a 10mm socket, then wait 2 minutes.
• 🧼 Put painter’s tape around the latch area to protect paint while working.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior rear door trim panel

• Use a Phillips screwdriver #2 or 7mm socket (varies by panel) to remove any visible screws in the pull handle, strap, or panel edges.
• Use a trim removal tool set (a plastic pry tool that pops clips without breaking them) to pry around the panel perimeter and release the push-clips.
• Lift the panel up and off the door.
• If there’s a courtesy light or switch connector, unplug it using a small pick tool to release the locking tab.

Step 2: Peel back the water shield (plastic sheet)

• Use a flat trim clip pry tool to gently separate the plastic water shield from the door.
• Peel it back only as much as needed to reach the latch/actuator area.
• Try not to tear the plastic sheet.

Step 3: Disconnect the actuator electrical connector

• Locate the latch/actuator wiring plug near the latch.
• Use a small pick tool to lift the lock tab (if equipped), then unplug the connector.

Step 4: Disconnect the lock/handle link rods

• Find the metal rods going to the outside handle and lock mechanism.
• Use needle-nose pliers to rotate the small plastic retainer clip off the rod, then lift the rod out of its hole.
• Take a quick photo before removing rods.

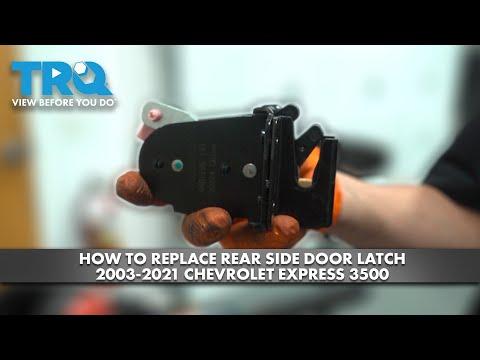

Step 5: Remove the rear door latch/actuator assembly

• On the door edge (where the latch grabs the striker), remove the latch screws using a Torx T30 bit with a ratchet and extension.
• Support the latch from inside the door as the last screw comes out.
• Slide the latch/actuator assembly out through the access opening.

Step 6: Transfer parts (if your replacement isn’t complete)

• If your new part is actuator-only, move any brackets or levers from the old unit to the new one using a 7mm socket or 10mm socket as needed.
• If your new part is a complete latch/actuator assembly, skip this step.

Step 7: Install the new latch/actuator assembly

• Position the new latch/actuator in the door and start all Torx screws by hand.
• Tighten the latch screws using a Torx T30 bit and torque wrench: Torque to 9 Nm (80 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 8: Reconnect link rods and verify smooth movement

• Reinsert each rod into its lever hole, then rotate the plastic retainer clip back over the rod using needle-nose pliers.
• Manually operate the handle and lock lever to confirm nothing binds.

Step 9: Reinstall the water shield

• Press the water shield back into the butyl adhesive.
• If the adhesive no longer sticks, apply butyl sealant tape and press firmly all around the edges.

Step 10: Reinstall the trim panel

• Reconnect any electrical connectors you unplugged.
• Line up the panel and press the clips in by hand around the perimeter.
• Reinstall screws using a Phillips screwdriver #2 or 7mm socket.

Step 11: Reconnect battery

• Reconnect the negative battery cable using a 10mm socket.
• Snug the terminal (do not overtighten): Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• 🔒 Test the rear door power lock with the key fob and the interior lock switch (lock/unlock 5–10 times).
• 🚪 Confirm the door opens from outside and inside, and that the lock actually prevents opening when locked.
• 💧 After your next car wash/rain, check the inside of the door panel for moisture (water shield sealing issue).
• 🛠️ If the lock works backward (locks when it should unlock), recheck rod routing and connector seating.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $220-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
