🔧 Encore - Rear Door Lock Actuator Replacement

Replacing the rear door lock actuator means removing the rear interior door panel, disconnecting the latch/lock linkages, and swapping the actuator/latch assembly. This is usually needed when the rear door won’t lock/unlock consistently with the key fob, power lock switch, or it makes a weak “click” but doesn’t move the lock.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn ignition OFF and remove the key fob from the vehicle area before starting.
• ⚠️ Disconnect the negative battery cable to prevent accidental airbag deployment (side-impact airbags can be in the door on some trims).
• ⚠️ Wear safety glasses; door clips can pop loose suddenly.
• ⚠️ Don’t pull on wiring; always unplug connectors by the lock tab.
• ⚠️ Support the window glass if you loosen any window guide fasteners (avoid glass drop).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4")
• Torx T20 screwdriver
• Torx T30 screwdriver
• Trim/panel removal tool (specialty)
• Small flat-blade screwdriver
• Pick tool (specialty)
• Needle-nose pliers
• Masking tape
• Flashlight
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 6-10
• Butyl door vapor barrier tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the rear door you’re working on fully.
• Lower the window all the way using the window switch (gives more room inside the door).
• Disconnect the battery: use a 10mm socket to remove the negative cable and set it aside so it can’t spring back.
• Tip: Keep screws in labeled cups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a small flat-blade screwdriver to gently pop off the small cover behind the interior door handle (it hides a screw).
• Remove the exposed screw using a Torx T20 screwdriver.
• Check the armrest/pull handle area for another fastener; remove it with a Torx T20 screwdriver if equipped.
• Use a trim/panel removal tool (specialty) to pop the panel clips around the edges of the door panel.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug any connectors (window switch/courtesy light) by pressing the lock tab; use a pick tool (specialty) if the tab is tight. A pick tool is a small pointed tool used to release clips safely.

Step 2: Remove the vapor barrier (water shield)

• Peel the plastic water shield back slowly by hand; use a trim/panel removal tool (specialty) to help separate the sticky butyl.
• Use masking tape to hold the barrier out of the way without tearing it.
• Tip: Try not to stretch the plastic.

Step 3: Disconnect the interior handle cable/rod from the latch

• Look inside the door at the latch area (rear edge of the door). Use a flashlight for visibility.
• If your Encore uses a cable: rotate the cable retainer clip open using a small flat-blade screwdriver, then lift the cable end out of the lever.
• If it uses a metal rod: use a pick tool (specialty) to flip the colored plastic retainer off the rod, then slide the rod out.
• A “retainer clip” is the small plastic lock that holds a rod/cable in place.

Step 4: Remove the latch/actuator assembly from the door

• At the rear edge of the door, remove the latch screws using a Torx T30 screwdriver.
• Unplug the actuator electrical connector by pressing the tab; use a pick tool (specialty) if needed.

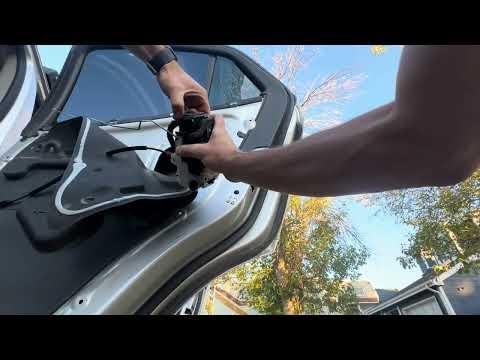

• Carefully work the latch/actuator out through the access opening in the door.

Step 5: Transfer any brackets or cables (if your new part doesn’t include them)

• Compare the old and new latch/actuator on a flat surface.
• Move over any small brackets using a 10mm socket and 1/4" drive ratchet as needed.
• Move the interior handle cable/rod onto the same lever position as the original.

Step 6: Install the new latch/actuator

• Slide the latch/actuator into the door and align it to the rear edge mounting holes.
• Install the latch screws by hand first, then tighten with a Torx T30 screwdriver.
• Torque to 9 Nm (80 in-lbs) using an inch-pound torque wrench with the correct bit adapter.
• Reconnect the electrical connector until it clicks.
• Reconnect the interior handle cable/rod and snap the retainer clip fully closed.

Step 7: Function test before reassembly

• Reconnect the battery negative cable using a 10mm socket and snug it.
• Torque to 15 Nm (11 ft-lbs) using a foot-pound torque wrench.
• With the door still open, use the key fob and the power lock switch to lock/unlock several times.
• Pull the inside handle to confirm it releases properly.
• Disconnect the battery negative cable again using a 10mm socket before putting the panel back on.
• Tip: If it “clicks” but won’t move, recheck the rod clip.

Step 8: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add butyl door vapor barrier tape where the original adhesive is missing.
• Reconnect the door panel electrical connectors by hand.
• Hang the door panel on the window ledge and press down to seat it.
• Press all the panel clips in around the edges using your hands (firm, even pressure).
• Reinstall screws using a Torx T20 screwdriver and snap the covers back in.

Step 9: Final battery reconnect

• Reconnect the battery negative cable using a 10mm socket.
• Torque to 15 Nm (11 ft-lbs) using a foot-pound torque wrench.

---

✅ After Repair

• Lock/unlock the doors 10+ times with the key fob and the inside switch.
• Verify the door opens from inside and outside normally.
• Confirm the door ajar light works and the interior light responds correctly.
• Drive and recheck: listen for rattles (a missed clip is common).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
