🔧 A3 - Rear Door Lock Actuator Replacement

The rear door lock actuator is the motor/gear unit built into the door latch that locks/unlocks the door. When it fails, you’ll get issues like the rear door not locking, not unlocking, or acting intermittent.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before working in the door. Your A3 can have a side airbag in the door, and you don’t want accidental deployment.
• ⚠️ Keep the key/fob away from the car while working so the locks don’t cycle unexpectedly.
• ⚠️ Support the door glass/regulator if you loosen the carrier panel. Don’t let the glass drop.
• ⚠️ Wear gloves—inner door metal edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Pick tool set
• Torx T20 driver
• Torx T25 driver
• Torx T30 driver
• Ratchet
• 1/4" torque wrench (2–25 Nm range)
• 10mm socket
• Small flat-blade screwdriver
• Painter’s tape
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door panel trim clips - Qty: 3-8
• Butyl seal tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and open the rear door fully.
• Use 10mm socket to disconnect the negative battery terminal, then wait 5 minutes.
• Put painter’s tape along the door edge and near the handle area to protect paint.
• Trim tool = plastic pry tool to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Rear left or rear right procedure is the same; only parts side changes.

Step 1: Remove the rear door interior trim panel

• Use a trim removal tool set to pry up the small trim cover in the interior door pull/handle area.
• Use a Torx T30 driver to remove the main screw(s) hidden behind that cover.
• Use a Torx T20 driver (or Torx T25 driver, depending on panel) to remove any screws along the bottom/side edge of the panel.
• Starting at the bottom corner, use the trim removal tool set to pop the panel clips free (you’ll hear snaps).
• Lift the panel straight upward to unhook it from the window ledge.
• Disconnect the electrical connectors using a pick tool set (press the tab, then pull).
• If equipped, unclip the interior handle cable using a small flat-blade screwdriver (flip the retainer open, then lift the cable end out).

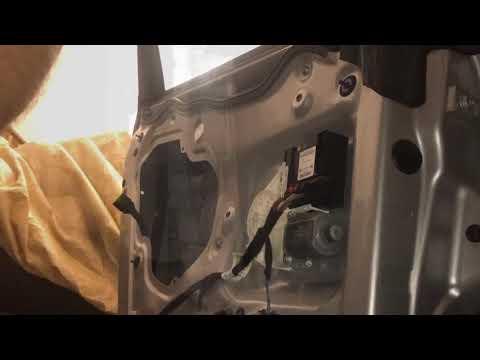

Step 2: Remove the vapor barrier (water shield) carefully

• Use a trim removal tool set to gently peel the vapor barrier back.
• Work slowly so the butyl adhesive stretches instead of tearing the barrier.
• If the adhesive gets messy or won’t reseal, plan to use butyl seal tape during reassembly.
• Keep the barrier clean—helps prevent water leaks.

Step 3: Disconnect the latch/actuator electrical connector

• Locate the latch wiring at the rear edge of the door (near the latch).
• Use a pick tool set to release the connector lock tab, then unplug it.

Step 4: Release the exterior door handle cable (common “gotcha”)

• On the door’s rear edge (near the latch), remove the small rubber plug using a pick tool set.
• Inside that access hole, use a Torx T20 driver to loosen the handle retaining screw (usually it stays captured—do not force it out).
• Slide the small exterior handle cap/cover rearward and remove it.
• Pull the exterior door handle slightly and unhook the cable end from the handle carrier.

Step 5: Remove the latch/actuator assembly from the door

• Use a Torx T30 driver to remove the latch mounting bolts on the door edge.
• Support the latch with your hand so it doesn’t drop inside the door.
• Maneuver the latch/actuator out through the access opening, guiding the cable(s) and wiring through carefully.
• Torque to 8 Nm (71 in-lbs) for the latch bolts during reinstall (typical Audi M6 door hardware).

Step 6: Transfer any brackets/cables (if your new actuator doesn’t include them)

• Compare the old and new latch/actuator on a clean surface under a work light.
• If a cable bracket or clip must be moved over, use a small flat-blade screwdriver to release the retaining tabs.
• Make sure all cable ends are fully seated and the clip locks click into place.

Step 7: Install the new latch/actuator

• Place the new unit into the door and align it with the bolt holes.
• Start the latch bolts by hand, then tighten with a Torx T30 driver.
• Finish tightening using a 1/4" torque wrench (2–25 Nm range): Torque to 8 Nm (71 in-lbs).
• Reconnect the latch electrical connector (push until it clicks).

Step 8: Reinstall the exterior handle cable and handle cover

• Hook the cable end back onto the exterior handle carrier.
• Reinstall the handle cap/cover and slide it into place.
• Use a Torx T20 driver to snug the retaining screw (do not overtighten).
• Reinstall the rubber access plug using your fingers or a trim removal tool set.

Step 9: Re-seal the vapor barrier

• Press the vapor barrier back into the butyl adhesive using clean hands.
• If needed, apply butyl seal tape to any gaps so the barrier seals 360° around.

Step 10: Reinstall the door panel

• Reconnect all electrical connectors (they should click) using your hands and a work light to confirm alignment.
• Reconnect the interior handle cable and lock the retainer using a small flat-blade screwdriver.
• Hang the panel on the top window ledge, then press the clips in around the edges using firm palm pressure.
• Reinstall screws with Torx T30 driver and Torx T20 driver/Torx T25 driver.
• Torque to 2 Nm (18 in-lbs) for door trim screws (snug, not tight).
• Reinstall the trim covers using a trim removal tool set.

Step 11: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket.
• Tighten securely (snug—do not strip the clamp).

---

✅ After Repair

• Test the rear door from inside and outside: lock/unlock and open/close several times.
• Use the key fob and the driver door lock switch to confirm the actuator responds every time.
• Check that the exterior handle returns smoothly and doesn’t feel “hung up.”
• If the window auto-up/down acts weird, cycle the window fully down and fully up once to re-learn (normal after battery disconnect).
• Confirm no water leaks: after a wash/rain, check the rear carpet area for dampness.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
