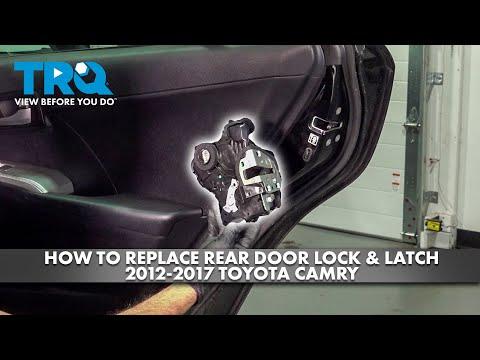

🔧 Camry - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor/gear unit inside the door latch that locks and unlocks the door. Replacement usually involves removing the interior door panel, peeling back the water shield, then swapping the latch/actuator assembly and reconnecting the linkages and wiring.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before unplugging door wiring to reduce short-circuit risk.
• ⚠️ After disconnecting the 12V battery, wait at least 90 seconds before working near SRS wiring/connectors.
• ⚠️ Keep the window fully up while working inside the door.
• ⚠️ Use trim tools (plastic prying tools) to avoid breaking clips and scratching panels.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension
• Phillips screwdriver #2
• Small flat trim screwdriver
• Plastic trim removal tool set
• Needle-nose pliers
• Pick tool
• Panel clip pliers
• Razor blade or plastic scraper
• Painters tape
• Flashlight
• Magnetic parts tray
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door panel retainer clips - Qty: 6-12
• Butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and switch the car OFF.
• Make sure the rear window is fully UP.
• Open the rear door you’re working on and leave it open.
• Use 10mm socket to disconnect the 12V battery negative terminal, then wait 90 seconds.
• Apply painters tape along the door edge and around the interior handle area to protect paint and trim.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door switch/handle trim

• Use a plastic trim removal tool set to pry up the window switch panel.
• Unplug the switch connector by pressing the tab with a pick tool, then pulling straight out.
• Use a small flat trim screwdriver to pop off any small trim covers hiding screws (usually near the inner door handle area).

Step 2: Remove door panel screws

• Use a Phillips screwdriver #2 to remove the screws in the armrest/handle area.
• Place screws in a magnetic parts tray so they don’t disappear.

Step 3: Release the door panel clips and lift the panel off

• Use a plastic trim removal tool set to start at the bottom edge of the panel.
• Work around the sides, popping clips free one at a time. Pull close to each clip.
• Lift the panel straight UP to unhook it from the window ledge.

Step 4: Disconnect cables/connectors from the door panel

• Unplug any remaining connectors using a pick tool to help press the locking tabs.
• If your Camry uses a cable for the inside handle, unhook it carefully using needle-nose pliers.
• Take a photo before disconnecting.

Step 5: Peel back the moisture barrier (water shield)

• Use a razor blade or plastic scraper to separate the black butyl adhesive.
• Peel the barrier back slowly and keep it clean so it can be reused.
• Do not tear the barrier.

Step 6: Disconnect the actuator/latch wiring

• Locate the door latch/actuator connector near the rear edge of the door.
• Press the connector tab using a pick tool, then unplug it.

Step 7: Disconnect the lock and handle linkages

• Find the metal control rods going to the latch (lock knob rod and handle rod).
• Use needle-nose pliers to flip the plastic retaining clips open, then lift the rod out.
• Don’t force the clips; they snap easily.

Step 8: Remove the latch/actuator assembly from the door

• At the rear edge of the door, remove the latch mounting bolts using a 10mm socket, 6" socket extension, and 1/4" drive ratchet.
• Support the latch with your hand as the last bolt comes out.
• Carefully wiggle the latch/actuator assembly out through the access opening.
• Torque to 7.5 Nm (66 in-lbs) when reinstalling the latch bolts.

Step 9: Install the new actuator/latch assembly

• Place the new assembly into the door through the access opening by hand.
• Start all latch bolts by hand first, then tighten using a 10mm socket and 1/4" drive ratchet.
• Torque to 7.5 Nm (66 in-lbs).
• Reconnect the control rods and snap the retaining clips closed using needle-nose pliers.
• Plug in the latch/actuator connector until it clicks.

Step 10: Reinstall the moisture barrier

• Press the barrier back into place by hand.
• If the butyl no longer sticks well, apply butyl seal tape to reseal the perimeter.

Step 11: Reinstall the door panel

• Reconnect all door panel connectors/cables before hanging the panel.
• Hook the top of the panel onto the window ledge, then press downward to seat it.
• Press around the edges to snap clips in place. Use panel clip pliers to replace any broken clips.
• Reinstall screws using a Phillips screwdriver #2, then reinstall trim covers using a plastic trim removal tool set.
• Reinstall the window switch panel and plug it in.

---

✅ After Repair

• Reconnect the 12V battery negative terminal using a 10mm socket.
• Test from outside: lock/unlock with the key fob and confirm the rear door locks/unlocks consistently.
• Test from inside: use the door lock switch and verify the inside handle opens the door normally.
• If the window auto-up/down stops working, initialize it: hold the window switch fully DOWN for 2 seconds, then fully UP for 2 seconds.
• Listen for rattles on a short drive; if you hear one, a clip may not be seated.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
