🔧 Civic - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor/mechanism that locks and unlocks your rear door when you use the key fob, inside lock switch, or auto-lock feature. Replacement involves removing the rear door trim panel, disconnecting the wiring and linkage, swapping the latch/actuator assembly, then testing operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first-timer)

Assumption: Rear actuator is integrated with the door latch (common on your Civic).

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground with the ignition OFF and key away from the car.
• ⚠️ Disconnect the battery negative cable before unplugging door wiring to reduce risk of accidental shorting.
• ⚠️ Wear gloves—door inner metal edges can be sharp.
• ⚠️ Don’t tear the vapor barrier (the plastic sheet). It prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Panel clip pliers
• Phillips #2 screwdriver
• Small flathead screwdriver
• 10mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Needle-nose pliers
• Pick tool
• Flashlight
• Painters tape

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly (correct side) - Qty: 1
• Rear door trim panel clips - Qty: 6-10
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the window fully up for easiest reassembly.
• Use painters tape to protect painted edges near the door panel.
• Disconnect the battery using a 10mm socket (negative terminal first) and wait 2 minutes.
• Have a clean spot ready for screws and clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim pieces

• Use a trim removal tool set (plastic) to gently pry up the trim behind/around the interior door handle area (small cover pieces hide screws).
• Use a small flathead screwdriver to pop any tiny screw covers, then remove screws with a Phillips #2 screwdriver.
• Tip: Pry slowly to avoid cracking trim.

Step 2: Remove the window switch connector

• Pry up the switch panel (if equipped) using a trim removal tool set (plastic).
• Unplug the connector by pressing the lock tab using a pick tool (a small hook used to lift/press locking tabs).

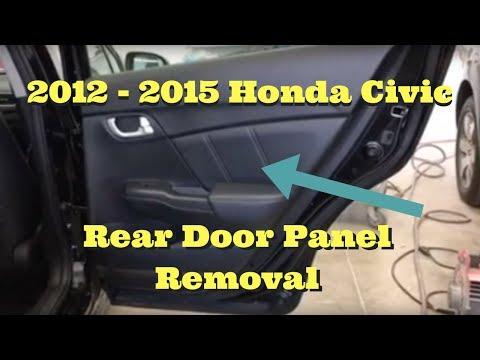

Step 3: Remove the rear door panel (main panel)

• Check for hidden screws (commonly in the pull handle pocket). Remove with a Phillips #2 screwdriver.
• Starting at the bottom edge, use a trim removal tool set (plastic) to pop the panel clips loose.
• If clips are stubborn, use panel clip pliers to pull them straight out.
• Lift the whole panel upward to unhook it from the window ledge.

Step 4: Disconnect handle/lock connections and set panel aside

• If there’s a cable/rod to the interior handle, unclip it using a pick tool and needle-nose pliers.
• Set the door panel somewhere safe where it won’t get stepped on.

Step 5: Remove the vapor barrier (plastic sheet)

• Use your fingers and a trim removal tool set (plastic) to peel the plastic back slowly.
• If the adhesive is messy, plan to reseal with butyl tape (vapor barrier adhesive) during reassembly.
• Tip: Don’t stretch the plastic—creases can cause leaks.

Step 6: Disconnect the actuator electrical connector

• Locate the latch/actuator at the rear edge of the door (inside). Use a flashlight.
• Press the connector tab with a pick tool and unplug it.

Step 7: Detach the lock/handle linkage from the latch

• You’ll see metal rods (linkage rods) going to the latch.
• Use a pick tool to open the small plastic retaining clips, then lift the rod out using needle-nose pliers.
• Tip: Take a photo before removing rods.

Step 8: Remove the latch/actuator from the door

• On the door edge (where the latch grabs the striker), remove the 3 latch mounting screws using a Phillips #2 screwdriver.
• If they’re tight, press hard and turn slowly to avoid stripping. (A stripped screw here is a big headache.)
• Inside the door, remove any latch bracket bolt(s) (if present) using a 10mm socket, 1/4" ratchet, and 6" extension.
• Wiggle and guide the latch/actuator assembly out through the access opening.

Step 9: Install the new actuator/latch assembly

• Slide the new latch/actuator into place the same way the old one came out.
• Start the 3 door-edge latch screws by hand, then tighten with a Phillips #2 screwdriver.
• Torque to 7.2 Nm (5.3 ft-lbs) for the latch mounting screws.
• Reinstall any 10mm bracket bolt(s) using a 10mm socket and 1/4" ratchet.
• Torque to 9 Nm (6.6 ft-lbs) for 10mm latch/bracket fasteners.

Step 10: Reconnect rods and electrical connector

• Reinstall each linkage rod into its lever hole, then close the plastic retaining clip over it using needle-nose pliers.
• Plug the actuator connector back in until it clicks (use a flashlight to confirm it’s fully seated).

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back onto the door. Use butyl tape (vapor barrier adhesive) anywhere it won’t stick.
• Hang the door panel on the top window ledge first, then press clips in around the edges with your hands.
• Reinstall all screws using a Phillips #2 screwdriver and snap trim covers back in using a trim removal tool set (plastic).
• Reconnect the switch connector and snap the switch panel back in.

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Test from outside: lock/unlock with the key fob and confirm the rear door locks and unlocks consistently.
• Test from inside: use the driver lock switch and confirm the rear door follows the command.
• Open/close the rear door and confirm the exterior and interior handles work normally.
• Check for wind noise or water leak risk: make sure the vapor barrier is sealed all the way around.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
