🔧 Highlander - Rear Door Lock Actuator Replacement

On your Highlander, the “rear door lock actuator” is typically part of the door latch assembly inside the rear door. Replacing it means removing the interior door panel, peeling back the moisture barrier, swapping the latch/actuator unit, then verifying the lock works from the switch, remote, and key.

Before I tailor this perfectly: Which rear door are we doing—left (driver-side rear) or right (passenger-side rear)?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent shorts.
• ⚠️ Support the door window glass—don’t pull or pry on the glass while the panel is off.
• ⚠️ Don’t tear the moisture barrier (plastic sheet). It prevents water leaks into the cabin.
• ⚠️ Keep the key fob away from the vehicle while working, so locks don’t cycle unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Phillips #2 screwdriver
• Torx T30 bit
• Trim removal tool set (plastic)
• Panel clip pliers
• Needle-nose pliers
• Pick tool
• Torque wrench (in-lb capable)
• Painter’s tape
• Flashlight
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 6-10
• Moisture barrier butyl adhesive tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and lower the window on the door you’re working on (if possible).
• Turn ignition OFF and keep the key fob at least 10 feet away.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• “Moisture barrier” = plastic sheet behind the door panel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner handle trim and switch panel

• Use a trim removal tool set (plastic) to gently pry off the small trim cover behind/around the interior door handle area.
• Use a trim removal tool set (plastic) to lift the window switch panel upward.
• Unplug the switch connector(s) by releasing the lock tab with a pick tool.

Step 2: Remove the door panel screws

• Remove the screw(s) in the armrest/pull handle area using a Phillips #2 screwdriver.
• If there’s a hidden screw behind a small cap, pop the cap with a trim removal tool set (plastic), then remove the screw with a Phillips #2 screwdriver.

Step 3: Pop the door panel clips and lift the panel off

• Start at the bottom edge. Use a trim removal tool set (plastic) to pop the panel clips free.
• If a clip is stubborn, use panel clip pliers to pull it straight out.
• Lift the entire door panel straight up to unhook it from the window ledge.
• Unplug any remaining connector(s) using a pick tool to release lock tabs.

Step 4: Peel back the moisture barrier (plastic sheet)

• Use painter’s tape to mark where the barrier sits, so it goes back in the same place.
• Carefully peel it back by hand. If the butyl adhesive strings, cut it with a pick tool and go slowly.
• Don’t cover drain holes at the bottom.

Step 5: Disconnect the lock/handle linkages from the latch

• Locate the latch/actuator at the rear edge of the door (near the striker).
• Disconnect the electrical connector from the actuator using a pick tool.
• For rod-style linkages: flip the plastic retaining clip open with a pick tool, then lift the rod out using needle-nose pliers.
• For cable-style linkages: unhook the cable end, then pop the cable housing out of its bracket by hand.

Step 6: Remove the latch/actuator from the door

• On the door edge, remove the three latch fasteners.
• Fastener type varies by build:
• Use a Torx T30 bit if your latch uses Torx screws, OR use a 10mm socket if it uses 10mm bolts.
• Support the latch with one hand while removing the last fastener so it doesn’t drop inside the door.

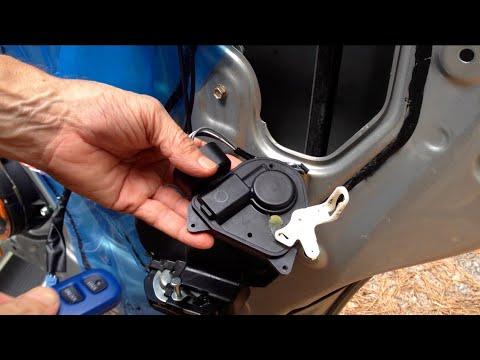

• Remove the latch/actuator assembly through the service opening.

Step 7: Install the new latch/actuator and reconnect everything

• Transfer any brackets/clips (if equipped) from the old unit to the new one using needle-nose pliers.
• Position the new latch/actuator into the door and start all fasteners by hand.
• Tighten latch fasteners using a torque wrench (in-lb capable): Torque to 7.5 N·m (66 in-lb).
• Reconnect the linkage rods/cables, ensuring each plastic clip fully locks.
• Reconnect the actuator electrical connector until it clicks.

Step 8: Reinstall the moisture barrier and door panel

• Press the moisture barrier back into the butyl. Add moisture barrier butyl adhesive tape anywhere it won’t stick.
• Hang the door panel on the top edge first, then align clips and press them in by hand around the perimeter.
• Reinstall screws using a Phillips #2 screwdriver.
• Reconnect the window switch connector(s) and snap the switch panel back in using a trim removal tool set (plastic).

Step 9: Reconnect the battery and function-check

• Reconnect the negative battery terminal using a 10mm socket.
• Before fully celebrating, test with the door open: lock/unlock from the driver switch and remote.
• Verify inside handle opens the door, and the child lock (if equipped) still works correctly.

---

✅ After Repair

• Confirm the door locks/unlocks with: driver switch, key fob, and key cylinder (if equipped).
• Open/close the door 5-10 times to ensure smooth latch operation and no binding.
• Check the window operation and verify the switch panel is fully seated.
• If you hear wind noise or see moisture later, re-check the moisture barrier seal.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $210-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
