🔧 Corolla - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor/gear unit that locks and unlocks your rear door when you use the key fob or power lock switch. On your Corolla, it’s mounted to (or integrated with) the door latch inside the rear door, so you’ll remove the interior door panel, then remove the latch/actuator assembly and swap it.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up; keep fingers clear of the window regulator (scissor/cable mechanism that moves the glass).
• ⚠️ Use trim tools gently to avoid breaking clips and cracking the door panel.
• ⚠️ Keep the water shield (vapor barrier) intact; it prevents water leaks into the cabin.
• ⚠️ Battery disconnect is recommended before unplugging door wiring: remove the negative terminal and isolate it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Flat trim/pick tool
• Plastic trim removal tool set
• Torx T30 bit
• Needle-nose pliers
• Razor blade or plastic scraper
• Painter’s tape
• Inch-pound torque wrench (20–200 in-lb range)
• Work gloves
• Safety glasses
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door panel trim clips - Qty: 5-10
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition off.
• Open the rear door you’re working on and leave it open.
• Use 10mm socket to disconnect the battery negative terminal (recommended).
• Put painter’s tape along the painted door edge to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear interior door panel

• Use a plastic trim removal tool set to pop off the trim behind the inside door handle (small cover hiding a screw).
• Use a Phillips #2 screwdriver to remove the screw behind the handle.
• Use a plastic trim removal tool set to lift the window switch panel (if equipped on that rear door) and unplug the connector by pressing the lock tab.
• Use a plastic trim removal tool set to pry around the bottom/sides of the door panel to release the push-clips.
• Lift the whole door panel straight up to unhook it from the window ledge, then set it aside.
• Tip: Pull near each clip, not the middle.

Step 2: Peel back the water shield (vapor barrier)

• Use a razor blade or plastic scraper to carefully separate the butyl adhesive and peel the water shield back only as much as needed.
• Do not tear it; if it rips, plan to reseal with butyl tape.

Step 3: Disconnect the inside handle and lock linkages

• Locate the metal rods going to the inside handle and door lock.
• Use a flat trim/pick tool to flip the colored retaining clips open (they rotate off the rod), then lift the rod out of the clip.
• Use needle-nose pliers if space is tight, but don’t bend the rods.
• Tip: Take a photo before removing rods.

Step 4: Unplug the actuator/latch electrical connector

• Find the latch/actuator connector near the rear edge of the door.
• Press the tab and unplug it by hand; use a flat trim/pick tool only if needed.

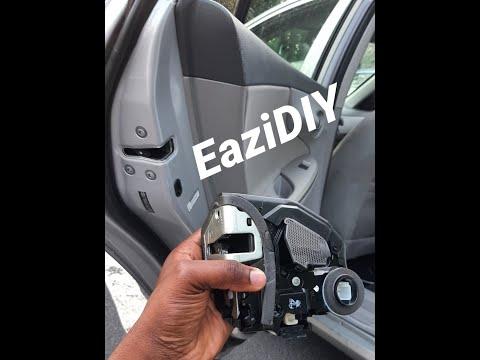

Step 5: Remove the latch/actuator from the door

• At the door’s rear edge, use a Torx T30 bit with a 1/4" drive ratchet to remove the 3 latch screws.
• Support the latch inside the door as the last screw comes out so it doesn’t drop.
• Work the latch/actuator assembly out through the access opening.
• Torque on installation: Torque to 66 in-lb (7.5 N·m) for the latch screws.

Step 6: Swap the actuator (if separate) or replace the complete latch assembly

• If your replacement is the full assembly: skip to Step 7.
• If the actuator is separate from the latch: use a 10mm socket or the appropriate driver (varies by part design) to remove the actuator mounting fasteners, then transfer it to the latch in the same orientation.
• Make sure the actuator lever/gear engages the latch mechanism exactly as the original.

Step 7: Reinstall the latch/actuator and reconnect everything

• Position the latch/actuator back into the door and start all 3 screws by hand.
• Use the Torx T30 bit to tighten the screws, then use an inch-pound torque wrench: Torque to 66 in-lb (7.5 N·m).
• Plug in the electrical connector until it clicks.
• Reconnect the linkage rods and rotate the retaining clips fully closed using a flat trim/pick tool.

Step 8: Function test before reassembly

• Reconnect the battery using a 10mm socket.
• With the door still open, test lock/unlock using the key fob and the power lock switch.
• Test inside and outside door handles for smooth operation.
• If the lock “moves” but won’t fully lock/unlock, recheck rod routing and clip seating.

Step 9: Reinstall the water shield and door panel

• Press the water shield back into the butyl; add butyl tape where it no longer sticks.
• Hang the door panel on the top lip first, then press clips in around the edges.
• Reinstall the screw(s) using a Phillips #2 screwdriver, then snap trim covers back on.

---

✅ After Repair

• Lock/unlock the rear door 10–15 times with the fob and the switch to confirm consistency.
• Confirm the rear door opens from inside and outside, and the child safety lock (if equipped) works correctly.
• Check that the door panel is fully seated and there are no rattles.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹14,000 (parts + labor)

DIY Cost: ₹2,500-₹9,000 (parts only)

You Save: ₹3,500-₹5,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
