🔧 Sierra 1500 - Rear Door Lock Actuator Replacement

On your Sierra 1500, the “door lock actuator” is typically part of the rear door latch assembly inside the door. Replacing it means removing the inner door trim panel, unplugging the actuator connector, and swapping the latch/actuator assembly so the power locks work reliably again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (one door)

---

⚠️ Safety & Precautions

• 🧤 Disconnect the battery negative cable to prevent shorts and accidental lock/window movement.
• Sharp edges inside the door can cut you; wear gloves.
• Support the door panel so it doesn’t hang by wiring.
• If your Sierra 1500 has rear power windows, keep keys out of ignition while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4")
• Torx T30 screwdriver
• Phillips #2 screwdriver
• Trim panel removal tool
• Pick tool
• Needle-nose pliers
• Razor blade
• Painter’s tape
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly - Qty: 1
• Door water shield butyl adhesive - Qty: 1
• Replacement door trim panel clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and open the rear door you’re working on.
• Use 10mm socket to disconnect the battery negative cable and isolate it so it can’t spring back.
• Apply painter’s tape along the painted door edge near the latch area to prevent scratches.
• Take phone photos as you unplug things.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

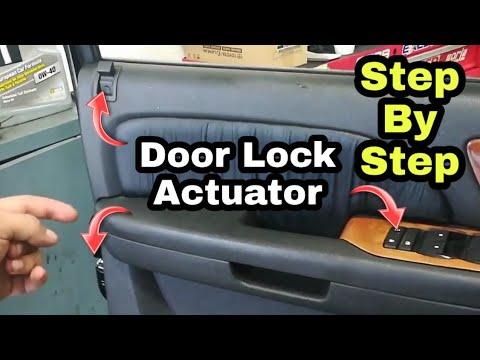

Step 1: Remove the rear door trim panel

• Use a trim panel removal tool to carefully pop off the small trim covers (typically near the interior handle/armrest area).
• Remove any visible screws using a Phillips #2 screwdriver (some trucks have one screw behind a trim cap).
• Slide the trim panel removal tool around the panel edges and pop the retaining clips out one-by-one.
• Lift the panel upward to unhook it from the window channel.
• Unplug electrical connectors (window switch/speaker) using a pick tool to release the locking tabs. A “locking tab” is a small plastic catch that must be pressed to unplug the connector.

Step 2: Remove the water shield (vapor barrier)

• Use a razor blade to gently cut/separate the sticky butyl adhesive as you peel the water shield back.
• Peel it back only as much as needed to reach the latch area, and keep it clean so it can reseal.

Step 3: Disconnect the latch/actuator electrical connector

• Locate the latch/actuator wiring at the rear edge of the door (inside the door, near the latch).
• Press the connector lock using a pick tool, then unplug it.

Step 4: Disconnect the door handle/lock linkages

• Find the metal rods/cables going to the latch (from the inside handle and outside handle).
• Use needle-nose pliers to rotate the small plastic retaining clips off the rod, then lift the rod out of the hole.
• If your Sierra 1500 uses a cable-style inner handle, unhook the cable end by hand and release the cable housing clip.
• Don’t force rods—plastic clips break easily.

Step 5: Remove the latch/actuator assembly from the door

• At the door’s trailing edge (where the latch grabs the body striker), remove the latch fasteners using a Torx T30 screwdriver.
• Support the latch with your hand, then work it out through the large access opening in the door.

Step 6: Install the new latch/actuator assembly

• Transfer any clips/brackets from the old unit to the new one (use needle-nose pliers if needed).
• Position the new latch/actuator in the door and align it to the door edge.
• Install the latch fasteners with a Torx T30 screwdriver, then Torque to 8 Nm (71 in-lbs).
• Reconnect all rods/cables exactly as they were, then lock the plastic retainers back over the rods.
• Plug in the electrical connector until it clicks.

Step 7: Reseal the water shield

• Press the water shield back into the butyl.
• If the adhesive is torn or won’t stick, apply door water shield butyl adhesive and press firmly all the way around.

Step 8: Reinstall the door trim panel

• Reconnect all electrical connectors by hand (make sure each one clicks).
• Hook the top of the panel onto the window channel, then press the panel into place.
• Press around the edges to snap the clips in.
• Reinstall screws using a Phillips #2 screwdriver, then reinstall trim caps.

Step 9: Reconnect battery and function test

• Reconnect the battery negative cable using a 10mm socket.
• Test lock/unlock from the key fob and the interior switch.
• Open/close the door multiple times to confirm the latch releases smoothly and the power lock cycles every time.

---

✅ After Repair

• Confirm the door locks/unlocks with: key fob, door switch, and (if equipped) automatic locking behavior.
• Make sure the outside handle opens the door normally and the inside handle isn’t sticking.
• Listen for rattles; a loose rod clip will rattle inside the door.
• If the lock still acts up, the next common issue is broken wiring in the door jamb boot.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$280 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
