🔧 Silverado 1500 - Rear Door Lock Actuator Replacement

The rear door lock actuator is the electric motor that locks and unlocks the rear door latch. On your Silverado, it is built into the latch assembly, so the repair usually means removing the door panel and replacing the latch/actuator assembly as one unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The door has power lock and window circuits.
• Use care around the side impact airbag in the door area. Do not probe yellow airbag connectors.
• Support the door panel while removing the last fasteners so it does not drop.
• Keep track of small clips and screws. Broken door panel clips can cause rattles.
• If the rear door has a child lock engaged, make sure you understand its position before testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 10mm socket
• 1/4-inch ratchet
• 1/4-inch extension
• Torx T30 screwdriver
• Trim panel removal tool
• Phillips screwdriver
• Flat-blade trim tool
• Needle-nose pliers
• Pick tool
• Torque wrench
• Safety glasses
• Work gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door panel clip set - Qty: 1
• Plastic vapor barrier adhesive or butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the rear window fully if the door still operates.
• Disconnect the negative battery cable and wait at least 2 minutes before working in the door area.
• Have a container ready for screws and clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door panel fasteners

• Use the 7mm socket to remove the screws around the perimeter of the rear door panel and near the handle area.
• Use the Phillips screwdriver if any trim screws are present in your panel design.
• Use the trim panel removal tool to gently pop loose the retaining clips around the edge.

Step 2: Lift off the door panel

• Use the flat-blade trim tool to carefully separate the panel from the door if it is stuck.
• Lift the panel straight up to unhook it from the top window ledge.
• Disconnect the electrical connectors for the window switch and any speaker or courtesy light.
• Pull straight, not outward.

Step 3: Remove the vapor barrier

• Peel back the plastic vapor barrier slowly by hand.
• Use the flat-blade trim tool if the adhesive is holding tight.
• Keep the barrier clean so it can be reused or resealed later.

Step 4: Disconnect the latch cables and electrical connector

• Locate the lock actuator/latch assembly at the rear door edge.
• Use the pick tool or needle-nose pliers to release the cable ends from the latch.
• Unplug the actuator electrical connector by pressing the lock tab and pulling straight out.

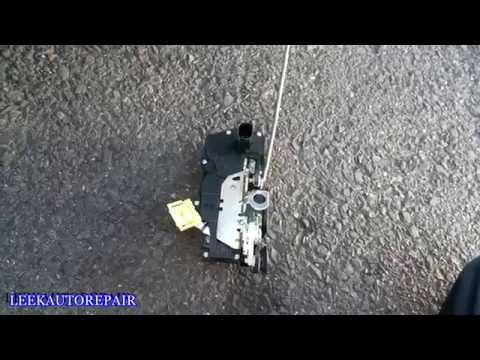

Step 5: Remove the latch/actuator assembly

• Use the Torx T30 screwdriver to remove the latch mounting screws from the door edge.
• Support the assembly with one hand while removing the last screw.
• Work the latch/actuator assembly out through the access opening in the door.
• Note cable routing before removal.

Step 6: Install the new latch/actuator assembly

• Position the new rear door lock actuator/latch assembly in the door.
• Reconnect the actuator electrical connector until it clicks.
• Reattach the cables in the same positions as removed.
• Install the Torx fasteners by hand first, then tighten with the Torx T30 screwdriver.
• Torque to 8 Nm (71 in-lbs).

Step 7: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. Add new butyl tape if the old adhesive will not seal.
• Reconnect the door panel electrical connectors.
• Hook the top of the panel over the window ledge, then press the clips in around the edges.
• Reinstall the screws using the 7mm socket and Phillips screwdriver.
• Torque to snug only. Do not overtighten plastic trim screws.

Step 8: Reconnect power and test the repair

• Reconnect the negative battery cable.
• Test the rear door lock with the key fob, door switch, and manual lock lever.
• Open and close the door several times to confirm smooth operation.

---

✅ After Repair

• Confirm the rear door locks and unlocks correctly from all switches.
• Check that the door opens from both inside and outside handles.
• Listen for clicking, binding, or unfinished cable movement.
• If the door panel rattles, recheck clip engagement and screw tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$320 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
