🔧 Camry - Rear Door Lock Actuator Replacement

On your Camry, the rear door lock actuator is built into the door latch assembly. Replacing it means removing the rear door trim panel, disconnecting the latch rods and electrical connector, then swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable before unplugging door wiring to prevent shorts.
• ⚠️ Keep the key fob away from the car while working so the locks don’t cycle unexpectedly.
• ⚠️ Handle the vapor barrier carefully; it must reseal to prevent water leaks.
• ⚠️ Use plastic trim tools to avoid cracking the door panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Panel clip pliers
• Phillips #2 screwdriver
• Flat blade screwdriver (small)
• Pick tool (small)
• Needle-nose pliers
• 10mm socket
• 1/4" ratchet
• 6" extension
• Torx T30 bit
• Inch-pound torque wrench
• Work light
• Magnetic pickup tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Rear door trim panel clips - Qty: 6-10
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and make sure the rear window is fully up.
• Open the rear door you’re repairing and leave it open.
• Disconnect the 12V battery negative cable using a 10mm socket. (On your Camry Hybrid, the 12V battery is in the trunk area.)
• Have a clean spot ready to place the door panel so the fabric/trim doesn’t get scratched.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a plastic trim removal tool set to gently pry up the window switch panel.
• Unplug the window switch connector by pressing the tab and pulling it out by hand.
• Use a Phillips #2 screwdriver to remove the screw(s) in the pull handle area (location varies by panel style).
• Pop off the small cover behind the inside door handle using a plastic trim removal tool set, then remove the hidden screw with a Phillips #2 screwdriver.
• Use a plastic trim removal tool set to pry around the perimeter and release the panel clips.
• Lift the whole door panel straight upward to unhook it from the top lip near the window.
• Disconnect any remaining connectors (courtesy light, if equipped) by hand.

Step 2: Remove the vapor barrier (water shield)

• Carefully peel the plastic vapor barrier back using your hands and a plastic trim removal tool set.
• If the sticky butyl stretches, use a pick tool (small) to help separate it cleanly.
• Don’t tear it; water leaks start here.

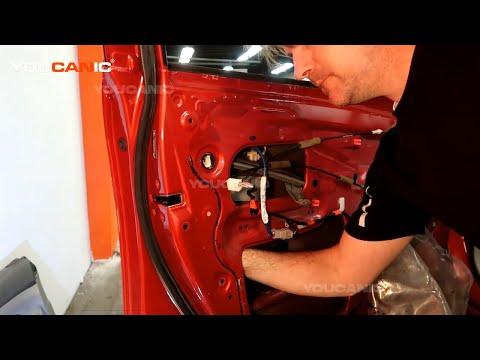

Step 3: Disconnect the latch rods and electrical connector

• Locate the latch/actuator area at the rear edge of the door.
• Find the metal control rods (from the inside handle and lock). Use a pick tool (small) to flip the colored retaining clips open.
• Once the clip is flipped open, lift the rod out of the clip by hand (use needle-nose pliers if tight).
• Unplug the actuator electrical connector by pressing the locking tab (use a flat blade screwdriver (small) only if needed).
• Take a quick photo of rod routing first.

Step 4: Remove the latch/actuator assembly from the door

• At the door’s rear edge, remove the 3 latch screws using a Torx T30 bit with a 1/4" ratchet.
• Support the latch inside the door as the last screw comes out so it doesn’t drop (use a magnetic pickup tool if hardware falls).
• Work the latch/actuator assembly out through the access opening in the door.

Step 5: Install the new latch/actuator assembly

• Place the replacement latch/actuator assembly into the door the same way the old one came out.
• Start all 3 latch screws by hand, then tighten with a Torx T30 bit.
• Torque to 7.5 Nm (66 in-lbs) using an inch-pound torque wrench.
• Reconnect the actuator electrical connector until it clicks.
• Reinstall the rods into their clips, then flip each clip closed using a pick tool (small) (you should feel it “snap” shut).

Step 6: Re-seal the vapor barrier and reinstall the door panel

• Press the vapor barrier back into place firmly by hand.
• If the butyl no longer sticks well, apply butyl tape and press the barrier into it.
• Reconnect all door electrical connectors by hand.
• Hang the top of the door panel on the window ledge first, then press the clips in around the edges by hand.
• Reinstall screws with a Phillips #2 screwdriver, then reinstall the covers using a plastic trim removal tool set.
• Reinstall the window switch panel and plug it in.

Step 7: Reconnect the 12V battery

• Reconnect the 12V battery negative cable using a 10mm socket.

---

✅ After Repair

• Test from outside and inside: lock/unlock with the fob and the interior switch.
• Confirm the inside handle opens the door normally and the child lock (if used) still works as expected.
• Check the window switch works and the door panel is fully seated (no rattles).
• After your next car wash/rain, check the rear carpet area for moisture (verifies the vapor barrier seal).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
