🔧 Rear Door Lock Actuator - Replacement

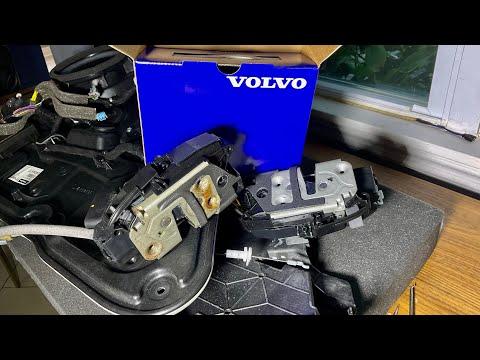

This job requires removing the rear door trim panel, disconnecting the latch assembly, and swapping the lock actuator/latch unit. On your S60, the actuator is integrated with the latch, so the full latch assembly is typically replaced rather than the motor alone.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The door may have side airbags and electrical connectors.
• Wait at least 10 minutes after battery disconnect before unplugging airbag-related connectors.
• Support the door trim carefully so you do not break hidden clips.
• Keep all fasteners organized. Some screws are different lengths.
• Work slowly around the trim clips.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Trim panel removal tool
• Torx T20 screwdriver
• Torx T25 screwdriver
• 8mm socket
• 10mm socket
• Ratchet
• Short extension
• Pick tool
• Flat plastic pry tool
• Torque wrench
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator / latch assembly - Qty: 1
• Door trim panel clips - Qty: 1 set
• Door vapor barrier adhesive - Qty: 1

---

📋 Before You Begin

• Park on level ground and fully open the rear door.
• Lower the window glass fully if possible before disconnecting power.
• Disconnect the negative battery cable with a 10mm socket.
• Wait 10 minutes before touching any side airbag wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel removal tool to pop the lower and side clips loose.
• Remove the visible screws with a Torx T20 screwdriver.
• Lift the panel upward to unhook it from the window ledge.
• Disconnect the electrical connectors for the window switch and any courtesy light.

Step 2: Remove the moisture barrier

• Carefully peel back the vapor barrier by hand or with a flat plastic pry tool.
• Keep the adhesive clean so it can be reused if still sticky.
• Do not tear the barrier.

Step 3: Disconnect the actuator cables and connectors

• Use a pick tool to release the cable retaining clips on the latch assembly.
• Unplug the electrical connector from the lock actuator.
• Move the cables aside without bending them sharply.

Step 4: Remove the latch assembly

• Access the rear edge of the door and remove the latch fasteners with an 8mm socket and Torx T25 screwdriver.
• Slide the latch/actuator assembly out of the door opening.
• If the exterior handle rods interfere, unclip them first with a pick tool.

Step 5: Install the new actuator/latch assembly

• Transfer any rods or clips to the new assembly if required.
• Position the new latch in the door and start all fasteners by hand.
• Tighten the latch fasteners with an 8mm socket and Torx T25 screwdriver.
• Torque to 8-10 Nm (71-89 in-lbs).

Step 6: Reconnect cables and electrical plugs

• Snap the cable ends back into the latch using a pick tool if needed.
• Reconnect the electrical connector until it clicks.
• Make sure the cables move freely and are not kinked.

Step 7: Test the latch before reassembly

• Reconnect the battery temporarily with a 10mm socket.
• Test the power lock, inside handle, and outside handle.
• Make sure the door latches and unlocks normally.

Step 8: Reinstall the moisture barrier and trim panel

• Press the vapor barrier back into place with clean hands.
• Reconnect all trim panel electrical connectors.
• Hook the upper edge of the door panel onto the window ledge first.
• Press the clips back in firmly by hand.
• Reinstall the screws with a Torx T20 screwdriver.
• Torque to 2-3 Nm (18-27 in-lbs).

---

✅ After Repair

• Cycle the lock and unlock button several times.
• Check that the rear door opens from inside and outside.
• Verify the child lock still works correctly if equipped.
• Listen for smooth latch operation with no grinding or sticking.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
