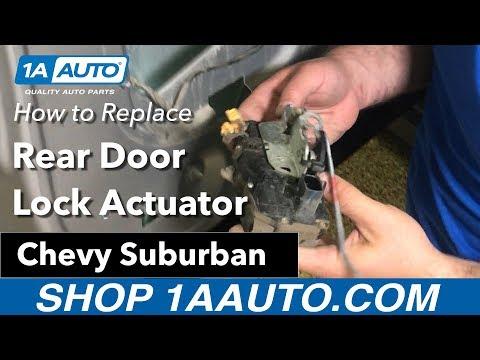

🔧 Suburban - Rear Door Lock Actuator Replacement

On your Suburban, the “door lock actuator” is typically built into the rear door latch assembly (the mechanism on the door edge that grabs the striker). Replacing it means removing the interior door panel, peeling back the moisture barrier, then swapping the latch/actuator and reconnecting the lock/linkage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first time)

---

⚠️ Safety & Precautions

• ⚠️ Work with the window fully up to avoid broken glass and pinched fingers.
• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent accidental shorting.
• ⚠️ Use a trim tool (plastic pry tool) to avoid cracking the door panel.
• ⚠️ Don’t tear the moisture barrier; it prevents water leaks and speaker issues.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Panel clip pliers
• Pick tool
• Needle-nose pliers
• 7mm socket
• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Torx T30 bit
• Small flathead screwdriver
• Painter’s tape
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly - Qty: 1
• Door panel retaining clips - Qty: 4-10
• Butyl tape for moisture barrier - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the rear door fully open.
• Use painter’s tape to protect painted edges near the door handle area.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take photos of rod routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear interior door panel

• Use a trim removal tool set to pry up the window/lock switch bezel (if equipped) and unplug the connector(s) by pressing the tab with a pick tool.
• Remove visible door panel screws using a 7mm socket and 1/4" ratchet (common locations: armrest/pull handle and lower panel).
• Use a trim removal tool set to pop the perimeter clips loose. Work around the panel slowly.
• Lift the panel straight up and off the window ledge, then unplug any remaining connectors using the pick tool.

Step 2: Remove the moisture barrier (water shield)

• Use a trim removal tool set to carefully peel the barrier back.
• If the butyl adhesive fights you, warm it slightly by hand and pull slowly.
• Stick it out of the way (do not crumple it).

Step 3: Disconnect the inside handle and lock linkage

• Locate the metal rods running to the latch (these move when you pull the handle or flip the lock).
• Use a small flathead screwdriver to flip the plastic retaining clip open, then lift the rod out.
• Use needle-nose pliers only if needed—don’t bend the rods.
• A rod clip swings open like a tiny door.

Step 4: Unbolt and remove the latch/actuator from the door edge

• On the rear edge of the door, remove the latch fasteners using a Torx T30 bit, 1/4" ratchet, and 6" socket extension.
• Unplug the actuator electrical connector by pressing the tab with a pick tool and pulling straight out.
• Maneuver the latch assembly out through the access opening. Use a flashlight to avoid snagging wiring.

Step 5: Transfer parts (only if required) and install the new latch/actuator

• If your replacement is the full latch/actuator assembly, install it directly (no transfer needed).
• If any rod bracket or cable guide must be moved over, use a small flathead screwdriver to release its clip and swap it to the new assembly.
• Slide the new latch/actuator into position and start the Torx T30 bit fasteners by hand to avoid cross-threading.
• Tighten the latch fasteners firmly with the Torx T30 bit and 1/4" ratchet. If you have OEM torque specs for your exact latch fasteners, use them.

Step 6: Reconnect linkage rods and electrical connector

• Reconnect the electrical plug until it clicks (use a flashlight to confirm it’s fully seated).
• Reinstall each rod into its hole and swing the plastic clip closed using a small flathead screwdriver.
• Check rod routing matches your photos so nothing binds.

Step 7: Reinstall the moisture barrier

• Press the barrier back into the butyl adhesive.
• If it won’t stick, apply butyl tape (part) along the perimeter and press firmly by hand.

Step 8: Reinstall the door panel

• Plug in the connectors (switch/speaker) until they click.
• Hang the panel on the window ledge, then press clips in around the perimeter with your hands.
• Reinstall screws using a 7mm socket and 1/4" ratchet.
• Snap the switch bezel back in using the trim removal tool set as needed.

Step 9: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• With the door open, test power lock/unlock from the switch and key fob.
• Verify inside handle opens the door smoothly, and the manual lock knob (if equipped) moves freely.
• Close the door and confirm it latches normally and unlocks every time.
• If it won’t unlock/lock, recheck the connector seating and rod clips.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $190-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
