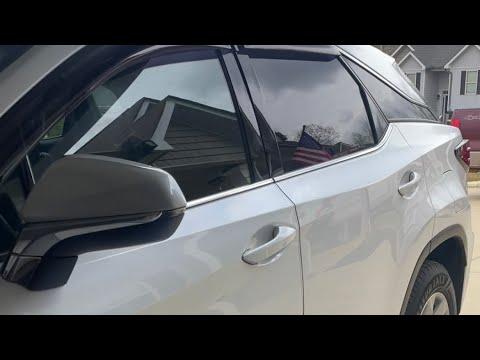

🔧 RX - Rear Door Lock Actuator Replacement

On your RX, the rear door lock “actuator” is built into the door latch assembly (the mechanism the door closes into). Replacement requires removing the interior door panel, peeling back the moisture barrier, disconnecting linkages/connectors, then swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable to reduce airbag/SRS risk when unplugging door wiring.
• ⚠️ Wait at least 90 seconds after battery disconnect before unplugging connectors near the door harness.
• ⚠️ Support the door glass and avoid pulling on wiring; connectors can break easily.
• ⚠️ Use trim tools (not a screwdriver) to prevent cracking the door panel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm wrench
• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Phillips #2 screwdriver
• Torx T30 driver
• Trim removal tool set
• Panel clip pliers
• Small pick tool
• Needle-nose pliers
• Flashlight
• Painter’s tape
• Inch-pound torque wrench (20–200 in-lbs range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door trim panel retainers (clips) - Qty: 6-12 (as needed)
• Butyl sealant tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and keep the key fob at least 10+ feet away from the vehicle.
• Lower the window glass about halfway (this gives better access inside the door).
• Use a 10mm wrench to disconnect the negative battery cable, then wait 90 seconds.
• Take photos of clips and cables first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear interior door trim panel

• Use a trim removal tool set to gently pry off the small trim covers behind the interior door handle and in the armrest area (locations vary slightly by door).
• Remove exposed screws using a Phillips #2 screwdriver (and any 10mm socket fasteners if equipped).
• Use a trim removal tool set and panel clip pliers to pop the door panel clips loose around the edges.
• Lift the panel straight upward to unhook it from the window ledge.

Step 2: Disconnect switches and handle cables

• Unplug the window/lock switch connector(s) using a small pick tool (press the tab, then pull the connector body).
• At the interior handle area, detach the handle cable(s): use a small pick tool to flip the plastic retaining clip up, then slide the cable end out.
• Pull on connectors, not wires.

Step 3: Peel back the moisture barrier

• Carefully peel back the plastic sheet using a trim removal tool set.
• This sheet is the moisture barrier (it keeps water out of the cabin). The sticky black adhesive is butyl (a reusable sealant).
• Use painter’s tape to hold the barrier out of the way without tearing it.

Step 4: Disconnect the actuator/latch electrical connector

• Locate the latch/actuator wiring at the rear edge of the door and unplug it using a small pick tool.
• Free the harness from any clips using needle-nose pliers as needed.

Step 5: Disconnect the door lock/link rods (if equipped)

• If your door uses metal rods (instead of only cables), note each rod location.
• Use a small pick tool to open the colored plastic rod retainers, then lift the rod out.
• Don’t force rods—plastic retainers snap easily.

Step 6: Remove the latch/actuator from the door

• At the rear door edge (where the latch meets the body), remove the latch screws using a Torx T30 driver.
• Inside the door, maneuver the latch/actuator assembly out through the service opening.
• If the assembly hangs up, gently reposition the cables/rods using needle-nose pliers—do not bend rods sharply.
• Torque to 7.5 Nm (66 in-lbs) when reinstalling the latch Torx screws.

Step 7: Install the new rear door lock actuator/latch assembly

• Place the new assembly into the door cavity the same way the old one came out.
• Start the Torx screws by hand using a Torx T30 driver, then tighten with an inch-pound torque wrench (20–200 in-lbs range).
• Torque to 7.5 Nm (66 in-lbs).
• Reconnect the electrical connector (push until it clicks).
• Reconnect rods/cables and lock all plastic retainers back into place.

Step 8: Refit the moisture barrier and door panel

• Press the moisture barrier back onto the butyl. Add butyl sealant tape where the original adhesive is damaged or gaps exist.
• Reconnect the switch connector(s) and interior handle cable(s).
• Hook the door panel on the top lip first, then press clips in around the perimeter.
• Reinstall screws using a Phillips #2 screwdriver (and 10mm socket if equipped).
• Torque to 2.5 Nm (22 in-lbs) for small interior screws (snug—do not overtighten into plastic).

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm wrench.
• Function test before fully cleaning up:
  • Lock/unlock using key fob and interior switch.
  • Open/close the door and confirm the latch fully “catches.”
  • Confirm the child lock (if used) still works as expected.
• If any door functions act weird, recheck that every connector is fully clicked and every rod retainer is locked.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
