🔧 Escape - Rear Door Lock Actuator Replacement

On your Escape, the rear “door lock actuator” is typically built into the rear door latch assembly. Replacement means removing the inner door panel, peeling back the moisture barrier, unplugging the latch wiring, and swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (first-timer)

---

⚠️ Safety & Precautions

• ⚠️ Keep the key fob away from the vehicle while working so the locks can’t cycle unexpectedly.
• ⚠️ Disconnect the negative battery cable before unplugging door wiring connectors.
• ⚠️ Watch for sharp sheet-metal edges inside the door; wear gloves.
• ⚠️ Don’t tear the moisture barrier (vapor barrier); it prevents water leaks into the cabin.
• ⚠️ Support the door panel during removal so you don’t strain the wiring harness.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Small flat-blade screwdriver
• Phillips screwdriver
• Torx T20 screwdriver
• Torx T30 bit socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• 7mm socket
• 8mm socket
• 10mm socket
• Torque wrench (inch-pound)
• Pick tool
• Painter’s tape
• Flashlight
• Panel clip pliers

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly - Qty: 1
• Door panel retainer clips - Qty: 4-10
• Butyl tape (moisture barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and lower the rear window about halfway (gives hand room inside the door).
• Use painter’s tape to protect the paint along the top edge of the door.
• Disconnect the negative battery cable: use a 10mm socket to remove the negative terminal and isolate it.
• Confirm which rear door you’re working on (left or right) so you order the correct latch/actuator assembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door trim panel

• Use a plastic trim removal tool set to pry off the small trim cover(s) near the inside door handle and/or armrest (covers hide screws).
• Remove any exposed screws using a Torx T20 screwdriver and/or 7mm socket (screw types vary by panel location).
• Work around the perimeter of the panel: use the plastic trim removal tool set to pop the push-clips loose.
• Lift the panel straight up to unhook it from the window channel (top edge), then support it close to the door.

Step 2: Disconnect switches and the inside handle linkage

• Unplug the door switch connector(s) using a pick tool to release the locking tab (don’t pull on wires).
• If your Escape uses a cable-style handle: unhook the inside handle cable by flipping the cable retainer out and lifting the cable end from the lever (the “Bowden cable” is a sheathed cable that pulls the latch).
• If it uses a rod-style linkage: use a small flat-blade screwdriver to open the plastic retaining clip, then lift the rod out.

Step 3: Peel back the moisture barrier (vapor barrier)

• Use a plastic trim removal tool set to carefully peel the barrier back near the latch area.
• If the sticky butyl adhesive strings, roll it off with gloved fingers; save it if reusable.
• Don’t rip it—water leaks happen.

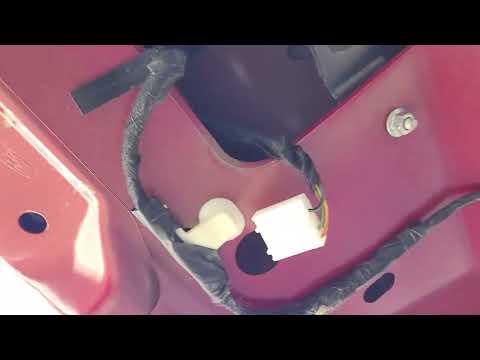

Step 4: Disconnect the latch/actuator electrical connector

• Locate the latch connector near the rear edge of the door.
• Release the connector lock with a pick tool, then unplug it by hand.

Step 5: Remove the latch/actuator from the door

• At the rear door edge, remove the latch fasteners using a Torx T30 bit socket with a 3/8" drive ratchet and 3" extension.
• From inside the door, disconnect the exterior handle linkage from the latch (use a flashlight and small flat-blade screwdriver to open the retaining clip, then remove the rod/cable).
• Slide and maneuver the latch assembly out through the large access opening in the door.

Step 6: Install the new latch/actuator assembly

• Feed the new latch assembly into the door and position it at the rear edge.
• Reconnect the exterior handle linkage to the latch (make sure the retaining clip fully snaps closed).
• Install the latch fasteners using a Torx T30 bit socket, then Torque to 8 Nm (71 in-lbs) using a torque wrench (inch-pound).
• Plug in the latch electrical connector by hand until it clicks.

Step 7: Re-seal the moisture barrier

• Press the barrier back into place firmly by hand.
• If the adhesive no longer sticks, apply butyl tape and press the barrier into it.

Step 8: Reinstall the door panel

• Reconnect all switch connectors by hand (listen/feel for the click).
• Hook the top of the panel onto the window channel, then press the panel into place.
• Use panel clip pliers to replace any broken clips and ensure the panel sits flush.
• Reinstall screws using a Torx T20 screwdriver and/or 7mm socket, then reinstall trim covers using your hands.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Test from outside: lock/unlock with the key fob and confirm that door responds normally.
• Test from inside: confirm the inside handle opens the door smoothly and the lock knob/switch works.
• Close the door and confirm it latches securely and doesn’t “bounce” back open.
• If the door won’t open from inside or outside, stop and recheck the linkage clips (they’re commonly not fully seated).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
