🔧 Camry - Rear Door Lock Actuator Replacement

On your Camry, the “door lock actuator” is typically built into the rear door latch assembly. Replacing it means removing the rear door trim panel, peeling back the moisture barrier, disconnecting the lock/link rods and electrical connector, then swapping the latch/actuator unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable to prevent accidental electrical shorts while unplugging door wiring.
• ⚠️ Keep fingers clear of the window glass and regulator openings inside the door.
• ⚠️ Don’t tear the moisture barrier (plastic sheet); it prevents water leaks into the cabin.
• ⚠️ Support the door panel as you unplug connectors so you don’t pull wires.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Phillips screwdriver #2
• Flat-blade screwdriver small
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension 1/4" drive
• Torx T30 bit
• Pick tool small
• Torque wrench (in-lb or low-range ft-lb)
• Needle-nose pliers
• Painter’s tape
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door lock actuator/latch assembly - Qty: 1
• Door trim panel clips - Qty: 6-12
• Moisture barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and power the car OFF.
• Open the window on the door you’re working on (it gives you more room and visibility).
• Disconnect the 12V battery negative cable using a 10mm socket (on the Hybrid, the 12V battery is in the trunk area). Wait 2 minutes before unplugging door connectors.
• Set a towel or soft mat nearby to place the door panel on.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the inner handle trim and switch panel

• Use a trim removal tool set to gently pry off the small trim cover near the interior door handle area.
• Remove any exposed screws using a Phillips screwdriver #2.
• Use the trim removal tool set to pry up the window switch panel, then unplug the switch connector(s) by pressing the tab with a pick tool small.
• Pry on plastic edges, not soft vinyl.

Step 2: Remove door panel screws

• Remove the screw(s) in the armrest/pull handle pocket using a Phillips screwdriver #2.
• If there’s a small cap hiding a screw, pop it off with a flat-blade screwdriver small and remove the screw with a Phillips screwdriver #2.

Step 3: Pop the door panel clips loose and lift the panel off

• Starting at the lower edge, slide a trim removal tool set between the panel and the metal door and pop the clips free around the perimeter.
• Lift the entire door panel straight up to unhook it from the top window ledge.
• Unplug any remaining connectors (courtesy light, etc.) using a pick tool small to press the release tab.

Step 4: Peel back the moisture barrier

• Carefully peel the plastic moisture barrier back just enough to access the latch area.
• If the butyl is stubborn, use a trim removal tool set to separate it slowly.
• Use painter’s tape to hold the barrier out of your way.

Step 5: Disconnect the latch rods/cables

• At the latch, you’ll see metal rods going to the inside handle and the lock.
• Use a pick tool small to flip the colored retaining clip open, then lift the rod out of the clip.
• Use needle-nose pliers if space is tight, but don’t bend the rods.
• Take a photo first—rod routing matters.

Step 6: Unplug the actuator electrical connector

• Press the connector tab with a pick tool small and pull the connector straight off.

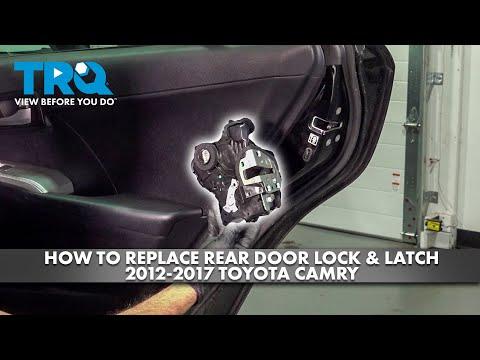

Step 7: Remove the rear door latch/actuator from the door

• On the rear edge of the door (where it closes), remove the 3 latch screws using a Torx T30 bit and 1/4" drive ratchet.
• Support the latch with your other hand so it doesn’t drop inside the door.
• Work the latch/actuator assembly out through the access opening.

Step 8: Install the new latch/actuator

• Position the new assembly into the door and align it to the screw holes.
• Start all 3 screws by hand, then tighten with a Torx T30 bit and 1/4" drive ratchet.
• Torque to 7.5 Nm (66 in-lb) using a torque wrench (in-lb or low-range ft-lb).

Step 9: Reconnect rods and the electrical connector

• Plug the connector in until it clicks (use your hands; no tools needed).
• Reinstall each rod into its lever, then snap the retaining clip closed (use a pick tool small if needed).
• Verify the rods move freely and aren’t crossed.

Step 10: Quick function test before reassembly

• Reconnect the 12V battery negative cable using a 10mm socket.
• Test lock/unlock with the key fob and the interior switch while the door is open.
• If the latch won’t behave correctly, re-check rod placement and connector seating.
• Disconnect the 12V battery negative cable again using a 10mm socket before reinstalling the panel.

Step 11: Reinstall the moisture barrier

• Press the moisture barrier back onto the butyl adhesive.
• If it won’t stick or you tore the seal, apply moisture barrier butyl tape and press firmly by hand.

Step 12: Reinstall the door panel

• Reconnect all electrical connectors (use a work light to confirm they’re fully seated).
• Hang the door panel on the top ledge first, then press the panel inward to engage the clips.
• Reinstall screws using a Phillips screwdriver #2.
• Snap trim covers back on by hand.

---

✅ After Repair

• Reconnect the 12V battery negative cable using a 10mm socket.
• Verify: inside handle opens the door, outside handle opens the door, power lock works, and the door locks/unlocks smoothly.
• Close the door and confirm it latches solidly and doesn’t “bounce” back open.
• If you hear wind noise or see water leaks later, re-check the moisture barrier seal.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $220-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
