🔧 Journey - Rear Door Lock Actuator Replacement

On your Journey, the rear door lock actuator is typically built into the rear door latch assembly. Replacing it means removing the interior door panel, unplugging the latch connector and linkages, then swapping the latch/actuator unit so the power locks work correctly again.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent shorts and accidental lock operation.
• ⚠️ Keep the window fully up; avoid bumping the glass while working inside the door.
• ⚠️ Wear gloves—door shell edges are sharp.
• ⚠️ Do not tear the vapor barrier; it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Phillips screwdriver #2
• Flathead screwdriver (small)
• Torx T30 bit
• Torx T20 bit
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Needle-nose pliers
• Pick tool (small)
• Painter’s tape (1")
• Torque wrench (in-lb or low-range ft-lb)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear door latch/lock actuator assembly - Qty: 1
• Door trim panel clips - Qty: 6-12
• Butyl seal tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key.
• Lower the rear window slightly to confirm it moves, then raise it fully.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Tip: Put screws in labeled cups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear interior door panel

• Use a trim removal tool set (plastic) to carefully pry up the window/lock switch panel (if equipped) and unplug the connector(s).
• Remove any visible screws in the pull handle/armrest area using a Phillips screwdriver #2 (some doors use hidden screws behind small caps—pop caps with a flathead screwdriver (small)).
• Starting at the bottom edge, use the trim removal tool set (plastic) to pop the door panel clips loose.
• Lift the panel straight up and off the window ledge, then support it close to the door.
• Unplug any remaining electrical connectors and set the panel aside.

Step 2: Remove the vapor barrier (water shield)

• The vapor barrier is the plastic sheet glued to the door; it keeps water from getting into the cabin.
• Use a pick tool (small) and your fingers to peel it back slowly without ripping it.
• If the butyl adhesive gets stringy, use mechanic gloves and take your time.

Step 3: Disconnect the latch cables/rods

• Locate the latch area toward the rear edge of the door (near the door striker).
• Disconnect the inside handle cable/rod at the latch:
  • Use a pick tool (small) to flip the plastic retaining clip open.
  • Use needle-nose pliers to lift the rod/cable end out of its socket.
• Disconnect any additional linkages (outside handle rod/cable) the same way.
• Tip: Take a quick photo before disconnecting.

Step 4: Unplug the actuator electrical connector

• Find the latch electrical connector (usually a small plug at the latch/actuator).
• Press the tab and unplug it; use a pick tool (small) gently if the tab is stubborn.

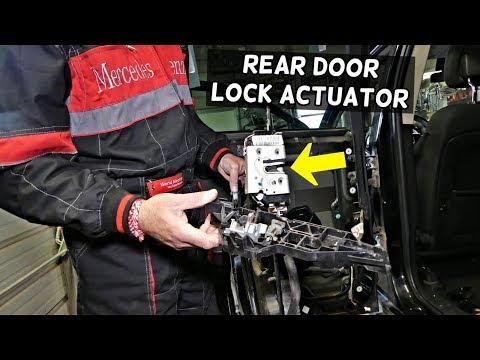

Step 5: Remove the latch/actuator assembly from the door

• Open the door and locate the latch fasteners on the door edge.
• Use a Torx T30 bit with a 1/4" drive ratchet and 6" extension (1/4" drive) to remove the three latch screws.
• Carefully maneuver the latch assembly out through the access opening in the door.
• If it catches, gently reposition rods/cables—do not force it against the window glass.

Step 6: Install the new latch/actuator assembly

• Slide the new latch/actuator into position in the door.
• Start the three latch screws by hand, then snug them with a Torx T30 bit.
• Final-tighten with a torque wrench (in-lb or low-range ft-lb): Torque to 9 Nm (80 in-lbs).
• Reconnect the electrical connector until it clicks.
• Reconnect all rods/cables:
  • Seat the rod/cable end fully into its socket.
  • Close the retaining clip fully (it should snap/lock in place).

Step 7: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the original butyl adhesive.
• If it won’t stick well, apply butyl seal tape and press the barrier firmly around the perimeter.
• Reconnect all door panel electrical connectors.
• Hang the door panel on the top window ledge, then press the clips in around the edges using your hands.
• Reinstall screws using a Phillips screwdriver #2 and reinstall any trim caps using a trim removal tool set (plastic).

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• With the door open, test:
  • Power lock/unlock from the key fob and driver switch
  • Inside handle operation
  • Outside handle operation
• Close the door and confirm it latches smoothly and locks/unlocks normally.
• If equipped, verify the rear child safety lock still works as intended.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $230-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: rear lock actuator is integrated with the rear door latch (most common setup on Journey).
