🔧 Explorer - Rear Door Lock Actuator Replacement

On your Explorer, the rear door “lock actuator” is typically built into the rear door latch assembly. Replacement means removing the inner door panel, peeling back the water shield, swapping the latch/actuator, then reconnecting the rods and electrical connector.

Quick questions (so I guide you perfectly): Which rear door is it—left (driver-side rear) or right (passenger-side rear)? And does the door still open from the inside/outside, or is it stuck shut?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working inside the door to prevent electrical shorts.
• ⚠️ Wear safety glasses—small clips can pop off suddenly.
• ⚠️ Don’t tear the water shield (the plastic sheet). It prevents water leaks into the cabin.
• ⚠️ Support the door glass—don’t pry against it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Work gloves
• 10mm socket
• 7mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Torx T27 bit
• Torx T30 bit
• Phillips screwdriver #2
• Small flathead screwdriver
• Trim removal tool (panel popper)
• Needle-nose pliers
• Pick tool
• Painter’s tape
• Flashlight
• Torque wrench (inch-pound, 20–200 in-lb range)
• Torque wrench (foot-pound, 10–100 ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

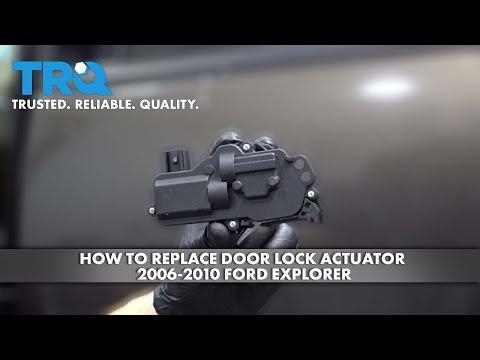

• Rear door latch/lock actuator assembly (Left or Right, as needed) - Qty: 1
• Door trim panel clips - Qty: 6-12
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and keep the transmission in Park.
• Lower the rear window glass about halfway if the door still has power (this improves access), then turn the key off.
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Take photos of rods before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the rear door interior trim panel

• Use a trim removal tool (panel popper) to gently pry up the window/lock switch bezel (if equipped), then unplug the switch connectors by pressing the tabs with a small flathead screwdriver.
• Remove visible screws in the pull handle/armrest area using a 7mm socket and 1/4" ratchet.
• If there’s a screw behind a small cover, pop the cover with a pick tool, then remove the screw using a Phillips screwdriver #2 or 7mm socket (whichever matches your fastener).
• Work around the panel edges and pop the clips free using the trim removal tool (panel popper).
• Lift the panel straight up and off the window channel, then set it aside.

Step 2: Remove the water shield (vapor barrier)

• Peel the plastic water shield back slowly by hand.
• If the adhesive is stubborn, carefully help it with a small flathead screwdriver.
• Use painter’s tape to hold the shield out of your way without tearing it.

Step 3: Disconnect the latch rods and electrical connector

• Locate the latch area at the rear edge of the door (near the striker).
• Unplug the latch/actuator electrical connector by pressing the tab using needle-nose pliers or a small flathead screwdriver (gentle—don’t break the tab).
• Disconnect the linkage rods (metal rods) from the latch:
  • Each rod is held by a colored plastic retaining clip. Flip the clip open using a pick tool, then lift the rod out.
  • Do one rod at a time to avoid mix-ups.

Step 4: Remove the latch/actuator assembly

• At the door’s rear edge, remove the latch fasteners using a Torx T27 bit or Torx T30 bit (use the one that fully seats—don’t strip it) with a 1/4" ratchet and 6" extension.
• Carefully work the latch/actuator assembly out through the access opening in the door.
• If the outer handle rod blocks removal, disconnect that rod clip using the pick tool, then continue pulling the assembly out.

Step 5: Install the new latch/actuator assembly

• Transfer any bracket or foam pieces from the old unit to the new one (match positions) using a small flathead screwdriver if needed.
• Slide the new latch/actuator into position inside the door.
• Start the latch fasteners by hand to avoid cross-threading, then tighten with the Torx T27 bit or Torx T30 bit.
• Torque to 10 Nm (89 in-lb) using a torque wrench (inch-pound, 20–200 in-lb range).

Step 6: Reconnect rods and the electrical connector

• Reconnect each linkage rod into its hole, then snap the plastic retaining clip closed using your fingers or needle-nose pliers.
• Plug the electrical connector back in until it clicks.
• Before reassembling the panel, do a quick “hand test”:
  • Move the lock rod up/down by hand and confirm the latch responds.
  • Pull the inside handle rod and confirm the latch releases.

Step 7: Reinstall the water shield

• Press the water shield back into place firmly.
• If the adhesive no longer sticks, apply butyl tape (water shield adhesive) and press the shield into it by hand.

Step 8: Reinstall the door trim panel

• Hang the trim panel on the top window channel first, then align the clips.
• Press around the edges with your hands to snap all clips in.
• Reinstall screws using a 7mm socket and 1/4" ratchet or Phillips screwdriver #2 (as removed).
• Reconnect the window/lock switch connectors and snap the bezel back in using your hands.

Step 9: Reconnect the battery and function-test

• Reconnect the negative battery cable using a 10mm socket.
• Test power lock/unlock with the key fob and door switch.
• Test inside and outside door handles, and verify the child safety lock (if equipped) still works correctly.

---

✅ After Repair

• Cycle the locks 10–15 times to confirm consistent operation.
• Close the door and confirm it latches securely and doesn’t bounce back.
• If the door was stuck shut originally, confirm the outside handle opens it normally now.
• Listen for water shield leaks later: after a car wash/rain, check the carpet near that door.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$200 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
