🔧 Corolla - Radiator Hose Replacement

You have two main radiator hoses on your Corolla: an upper hose and a lower hose. The steps are similar, but access is a bit different for each.

Difficulty Level: Beginner | Estimated Time: 1–2 hours

---

⚠️ Safety & Precautions

• 🔥 Only work on the cooling system when the engine is completely cold. Hot coolant can cause serious burns.
• 🧯 Slowly loosen the radiator cap with a cloth when cold to release any leftover pressure.
• 🧤 Coolant is toxic. Avoid skin/eye contact and keep away from children and pets.
• ♻️ Do not dump coolant on the ground or drain. Collect it in a container and dispose of it properly.
• 🔌 Battery disconnection is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/4" drive ratchet
• 3/8" drive ratchet
• 10mm socket
• 12mm socket
• Socket extension 3"
• Flathead screwdriver medium
• Pliers regular
• Hose clamp pliers (specialty)
• Utility knife or hose pick tool (specialty)
• Drain pan 10-liter minimum
• Small funnel
• Shop towels or rags
• Plastic trim removal tool set
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose (engine to top of radiator) - Qty: 1
• Lower radiator hose (engine to bottom of radiator) - Qty: 1
• Radiator hose clamps (correct size for upper and lower) - Qty: 4
• Toyota Super Long Life coolant (red/pink premixed) - Qty: 2–3 gallons
• Coolant reservoir cap gasket - Qty: 1 (optional but recommended)
• Small hose clamps for any small bypass hose you disturb - Qty: 2 (optional)

---

📋 Before You Begin

• Park your Corolla on level ground, shift to Park, and set the parking brake.
• Let the engine cool for at least 1–2 hours, ideally overnight.
• Place wheel chocks behind the rear wheels.
• Have your drain pan ready under the front of the car before opening anything.
• Turn the cabin heater control to full hot before you start bleeding later. This helps coolant flow through the heater core.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which hose(s) you are replacing

• The upper radiator hose runs from the top of the radiator (front of car, driver side) to the engine near the cylinder head.
• The lower radiator hose runs from the bottom of the radiator (front, lower area) to the water pump area on the engine.
• Best practice: replace both hoses together.

Step 2: Raise and secure the front of the car

• Use the floor jack on the front center jacking point (under the front crossmember) to lift the front of your Corolla.
• Place jack stands under the factory pinch weld points on both sides and gently lower the car onto them with the floor jack.
• Keep the floor jack just touching the crossmember as a backup.

Step 3: Remove lower splash shield for access (for lower hose)

• If you are doing the lower hose, you need access from below.
• Use the 10mm socket and ratchet to remove the bolts holding the plastic splash shield under the front bumper.
• Use the plastic trim removal tool to pop out any plastic clips.
• Lower the shield and set it aside.

Step 4: Relieve pressure and drain coolant

• Put on safety glasses and gloves.
• Place the drain pan under the radiator drain area (bottom of radiator on passenger side).
• Slowly loosen the radiator cap by hand with a rag. Do this only when the engine is cold.
• From underneath, use the pliersflathead screwdriver (depending on style) to open the radiator drain cock if equipped, and let coolant drain into the pan.
• If there is no easy drain cock, you will drain when you remove the lower hose; position the pan directly under the hose joint.

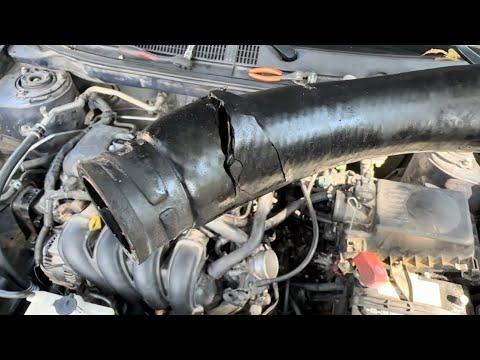

Step 5: Remove the upper radiator hose

• Locate the upper radiator hose at the top of the radiator.
• Use hose clamp pliers to squeeze the spring clamp at the radiator end and slide it back along the hose.
• Do the same at the engine end clamp.
• Gently twist the hose by hand to break it loose. If stuck, carefully slide a hose pick tool or the tip of a flathead screwdriver under the hose edge to break the seal. Do not gouge the metal or plastic neck.
• Pull the hose off and direct any remaining coolant into the drain pan.

Step 6: Remove the lower radiator hose

• From underneath, locate the lower radiator hose at the bottom of the radiator and where it connects to the engine.
• Place the drain pan directly under the lower hose—this will release the most coolant.
• Use hose clamp pliers to compress the spring clamp at the radiator side and slide it back.
• Repeat at the engine side clamp.
• Twist and pull the hose free, using the hose pick tool gently if it is stuck.
• Let coolant finish draining into the pan.

Step 7: Inspect hose connections and clamps

• Wipe the radiator necks and engine pipe ends with shop towels until they are clean and smooth.
• Check for cracks or corrosion on the plastic radiator necks. If badly damaged, the radiator may need replacement.
• Inspect old clamps; replace with new radiator hose clamps if rusty or weak.

Step 8: Install the new upper radiator hose

• Compare the new upper hose with the old one to match shape and length.
• Slide two radiator hose clamps onto the hose before installing it.
• Push the hose fully onto the radiator neck first, then onto the engine neck.
• Use hose clamp pliers to position each clamp over the raised bead on the necks. This bead helps hold the hose.
• Make sure hose is not twisted or rubbing.

Step 9: Install the new lower radiator hose

• Compare the new lower hose with the old one.
• Slide two radiator hose clamps onto the new hose.
• From underneath, push the hose onto the radiator lower outlet fully.
• Then push the other end onto the engine/water pump inlet.
• Use hose clamp pliers to move clamps into place over the raised beads.
• Check that the hose has clearance from the drive belt, pulleys, and any sharp edges.

Step 10: Reinstall lower splash shield

• Lift the plastic shield back into place under the bumper.
• Use the 10mm socket and ratchet to reinstall bolts.
• Press any plastic clips back in using the trim removal tool if needed to help align them.

Step 11: Lower the car

• Use the floor jack to lift the front slightly and remove the jack stands.
• Lower the Corolla gently to the ground.

Step 12: Refill the cooling system

• Make sure the radiator drain cock (if you opened it) is fully closed using pliers or your fingers.
• Using a funnel, slowly pour Toyota Super Long Life coolant (premixed) into the radiator filler neck until full.
• Fill the coolant reservoir to the FULL mark.
• Leave the radiator cap off for now.

Step 13: Bleed air from the system

• Sit in the driver seat and make sure the heater control is set to full hot and the fan on low.
• Start the engine and let it idle.
• Watch the coolant level in the radiator neck; as the thermostat opens, the level may drop.
• Add more coolant with the funnel as needed to keep it near the top.
• Gently squeeze the upper radiator hose by hand to help push air bubbles out.
• Once bubbles stop and the level stabilizes, install the radiator cap firmly.

Step 14: Final checks for leaks

• With the engine idling and warm, check the upper and lower hose connections for leaks.
• Look underneath for any dripping coolant around the new hoses.
• If you see a small leak at a connection, shut the engine off and, once cool, reposition or tighten the clamp using hose clamp pliers.

---

✅ After Repair

• Take a short drive (10–15 minutes) with the heater on and then let the engine cool fully.
• After cooling, recheck the coolant level in the radiator and reservoir; top up if needed using the funnel.
• Inspect under the front of the car and around both hoses again for any new leaks.
• Over the next few days, check the reservoir level each morning and adjust if it drops slightly.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$400 (parts + labor for both hoses)

DIY Cost: $70–$140 (hoses, clamps, coolant)

You Save: $180–$260 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
