🔧 Equinox - Radiator Hose Replacement

You’ll be removing the old coolant hose, draining some coolant, then installing a new hose and refilling/bleeding the cooling system. This keeps the engine from overheating and prevents leaks that can damage the engine.

Difficulty Level: Intermediate | Estimated Time: 1.5–2.5 hours

Quick question before we start: Are you replacing the upper radiator hose (top of radiator to engine) or the lower radiator hose (bottom of radiator to engine), or both?

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system when the engine is hot; hot coolant can spray and cause serious burns.
• ⚠️ Allow the engine in your Equinox to cool at least 1–2 hours before starting.
• ⚠️ Use jack stands whenever the vehicle is lifted; never work under a car supported only by a jack.
• ⚠️ Coolant is toxic to people and animals; avoid skin contact and clean spills immediately.
• ⚠️ Keep coolant off the serpentine belt and electrical connectors to avoid slipping and electrical issues.
• ⚠️ Battery disconnect is not required, but keep metal tools away from the battery terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 8mm socket
• 🛠️ Socket wrench (3/8" drive)
• 🛠️ Socket extension 6"
• 🛠️ Hose clamp pliers (specialty)
• 🛠️ Slip-joint pliers
• 🛠️ Flathead screwdriver medium
• 🛠️ Razor blade or hose pick tool (specialty)
• 🛠️ Coolant drain pan (at least 10-liter capacity)
• 🛠️ Small funnel
• 🛠️ Shop towels or rags
• 🛠️ Safety glasses
• 🛠️ Nitrile gloves
• 🛠️ Torque wrench (5–30 ft-lb range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Upper radiator hose (engine to top of radiator) - Qty: 1
• 🔩 Lower radiator hose (engine to bottom of radiator) - Qty: 1
• 🔩 Radiator hose clamps (correct size for upper/lower hoses) - Qty: 2–4
• 🔩 Dex-Cool compatible engine coolant (50/50 premix) - Qty: 2–3 gallons
• 🔩 Coolant reservoir cap (optional, if old or cracked) - Qty: 1
• 🔩 Small hose clamps for heater/bleed hoses (if damaged) - Qty: 1–2

---

📋 Before You Begin

• Park your Equinox on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely; the upper radiator hose should feel cold to the touch.
• Turn the heater controls inside the cabin to the HOT setting; this helps coolant flow through the heater core when you refill.
• Locate the coolant reservoir, radiator, upper hose, and lower hose so you know what you’re working on.
• Place your coolant drain pan under the front of the vehicle where the lower radiator hose connects; that’s where most coolant will drain.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the vehicle

• Use the floor jack (rated 3-ton minimum) to lift the front of the Equinox at the front subframe or center jacking point.
• Place jack stands (rated 3-ton minimum) under the proper support points on each side and lower the vehicle onto them.
• Confirm the vehicle is stable before you go underneath. Try rocking it slightly.

Step 2: Remove the lower splash shield (if equipped)

• Use an 8mm socket and the socket wrench to remove the small bolts holding the plastic splash shield under the front bumper.
• Carefully pull the shield down and set it aside.

Step 3: Relieve any pressure and prepare to drain coolant

• With the engine cool, slowly loosen the coolant reservoir cap by hand to release any remaining pressure, then remove it completely.
• Position the coolant drain pan under the lower radiator hose connection on the radiator (passenger side bottom area).

Step 4: Drain coolant from the system

• On many Equinox radiators there is no easy drain plug, so you’ll release coolant by loosening the lower radiator hose.
• Use hose clamp pliers or slip-joint pliers to squeeze the spring clamp on the lower hose at the radiator and slide it back along the hose.
• Slowly twist the hose by hand to break it free, then pull it off the radiator outlet and let coolant drain into the pan.
• If the hose is stuck, gently work a flathead screwdriver medium under the edge to break the seal, being careful not to scratch the radiator outlet.

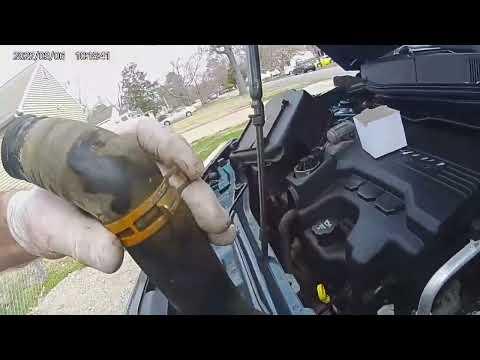

Step 5: Remove the old upper radiator hose

• From above, follow the upper radiator hose from the top of the radiator to the engine (thermostat housing/engine outlet).
• Use hose clamp pliers to squeeze the spring clamp at the radiator end, then slide it back on the hose.
• Twist the hose by hand to loosen; if stuck, gently use the flathead screwdriver medium to help break the seal.
• Pull the hose off the radiator nipple and aim it toward the coolant drain pan to catch any remaining coolant.
• Repeat the clamp removal and hose removal at the engine end of the upper hose.

Step 6: Remove the old lower radiator hose (if replacing)

• From underneath, follow the lower hose from the bottom of the radiator to the engine water pump/pipe.
• Use hose clamp pliers to move the clamp back from the engine-side connection.
• Twist and pull the hose off the engine connection; use the flathead screwdriver medium carefully if it is stuck.
• Remove the hose completely from the vehicle.

Step 7: Clean the hose seating surfaces

• Inspect the radiator outlets and engine hose necks for leftover rubber or corrosion.
• If rubber is stuck, carefully scrape it off with a razor blade or hose pick tool (specialty) without gouging the metal or plastic.
• Wipe all sealing surfaces clean with shop towels or rags.

Step 8: Install the new upper radiator hose

• Slide new radiator hose clamps over the new upper hose before installing it.
• Push one end of the hose fully onto the radiator outlet by hand until it bottoms out on the stop.
• Position the clamp over the raised bead or thickest part of the outlet using hose clamp pliers.
• Route the hose exactly like the original, avoiding sharp bends or rubbing points.
• Install the engine-side end the same way and set the clamp in the correct position with hose clamp pliers.
• Factory spring clamps do not need torque. If using screw-type clamps, snug them with a flathead screwdriver medium or 8mm socket—do not overtighten. Stop when hose slightly bulges.

Step 9: Install the new lower radiator hose

• Slide radiator hose clamps onto the new lower hose.
• Fit the hose onto the engine-side neck first, making sure it is fully seated.
• Use hose clamp pliers to move the clamp into position over the sealing bead.
• Route the hose to the radiator, avoiding moving parts like the cooling fan and belts.
• Push the hose onto the radiator outlet and secure the clamp with hose clamp pliers.

Step 10: Reinstall the lower splash shield

• Hold the plastic splash shield in place and align the holes.
• Use the 8mm socket and socket wrench to reinstall the bolts snugly. Torque to 3–5 Nm (2–4 ft-lbs) (just hand-snug, don’t over-tighten).

Step 11: Lower the vehicle

• Use the floor jack (rated 3-ton minimum) to lift the front slightly and remove the jack stands.
• Lower the Equinox to the ground slowly.

Step 12: Refill the cooling system

• Place a small funnel into the coolant reservoir opening.
• Pour in Dex-Cool compatible engine coolant (50/50 premix) until the level reaches the FULL COLD mark on the reservoir.
• Wait a few minutes as air bubbles escape, then top up again if the level drops.

Step 13: Bleed air from the system

• Leave the coolant reservoir cap off for now.
• Start the engine and let it idle; keep an eye on the coolant level in the reservoir.
• As the engine warms up, the thermostat will open and the level may drop; add more coolant as needed to maintain near the FULL COLD line.
• Turn the cabin heater to HOT and fan to medium; ensure warm air blows after a few minutes.
• Once the upper radiator hose feels hot and the heater blows steady warm air, install the reservoir cap by hand.
• Let the engine reach normal operating temperature and check the temperature gauge; it should stay in the normal mid-range.

Step 14: Final leak check

• Turn off the engine and let it cool down completely again.
• Inspect all hose connections (radiator ends and engine ends) for any signs of coolant seepage.
• If you used screw-type clamps, lightly re-snug them with an 8mm socket or flathead screwdriver medium if you see leaks. Torque to about 3–4 Nm (2–3 ft-lbs) if using a torque wrench.

---

✅ After Repair

• Take the Equinox for a short, gentle drive (10–15 minutes), watching the temperature gauge.
• Park, let the engine cool fully, then recheck coolant level and top up to the FULL COLD mark if needed.
• Look underneath and around the radiator and hose connections for any fresh coolant drips.
• Over the next few days of driving, check the coolant level each morning with a cold engine.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 (parts + labor for one hose; both hoses can be more)

DIY Cost: $70–$150 (hoses, clamps, coolant)

You Save: $180–$300 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
