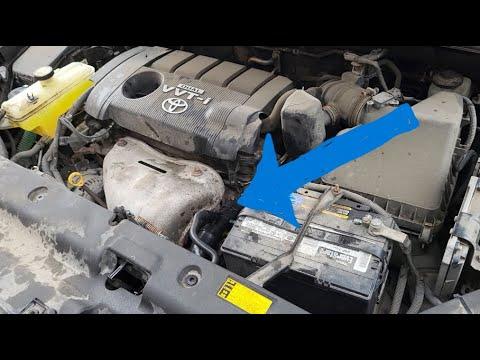

🔧 RAV4 - Radiator Hose Replacement

You’ll be draining some coolant and swapping the old radiator hose for a new one on your RAV4. This stops leaks and prevents overheating if your hose is cracked, swollen, or soft. We’ll go slowly with clear steps so a first-time DIYer can handle it.

Difficulty Level: Beginner/Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• 🔥 Only work on a completely cool engine. Hot coolant can cause serious burns.
• ⚡ Keep the battery connected, but do not crank the engine while hoses are off.
• 🧴 Coolant is toxic. Keep away from children, pets, and food areas.
• 🌫 Work in a well-ventilated area and avoid breathing coolant mist.
• 🧤 Wear gloves and safety glasses to protect your skin and eyes.
• 🚗 Use jack stands if you raise the vehicle; never rely only on a jack.
• ♻️ Collect old coolant in a clean drain pan and dispose of it properly. Do not dump it outside.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Flathead screwdriver (medium size)
• Pliers (regular slip-joint)
• Hose clamp pliers (specialty)
• Utility knife
• Coolant drain pan (at least 10-liter capacity)
• Small funnel
• Clean rags or shop towels
• Plastic trim tool
• Flashlight
• Gloves (chemical resistant)
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upper radiator hose (engine to top of radiator) - Qty: 1
• Lower radiator hose (engine to bottom of radiator) - Qty: 1
• Radiator hose clamps (correct size for RAV4) - Qty: 4
• Engine coolant (Toyota Super Long Life or equivalent pink HOAT) - Qty: 6-7 liters premixed
• Distilled water - Qty: 2-3 liters (if mixing concentrate)
• Radiator drain plug gasket (if damaged or leaking) - Qty: 1
• Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the RAV4 on a flat, level surface, shift to P, and set the parking brake.
• Let the engine cool for at least 1–2 hours until the upper hose feels cold to the touch.
• Turn the heater controls inside the cabin to HOT so coolant can flow through the heater core during bleeding.
• Make sure you have enough new coolant on hand before draining the system.
• Place wheel chocks behind the rear wheels if you plan to jack up the front.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm Which Hose(s) You’re Replacing

• The upper radiator hose runs from the top of the radiator on the passenger side to the engine (near the thermostat housing on the front of the engine).
• The lower radiator hose runs from the bottom of the radiator to the water pump area lower down.
• Tip: Replace both hoses if one is bad.

Step 2: Raise the Front (If Needed) and Remove Under Cover

• Use the floor jack to lift the front center jacking point behind the radiator support.
• Place the RAV4 securely on jack stands under the front pinch welds.
• Use the 10mm socket and ratchet to remove the bolts holding the front plastic engine under cover, if equipped.
• Use the plastic trim tool to pop out any plastic clips.
• Set the cover aside.

Step 3: Drain the Coolant

• Place the coolant drain pan under the radiator drain cock (bottom of radiator, usually on the passenger side).
• Slowly loosen the radiator cap at the top using your hand; do this only when the engine is fully cool.
• Use your fingers or pliers to open the radiator drain cock and let coolant flow into the pan.
• Allow coolant to drain until flow stops. This will be several liters.
• Close the drain cock firmly by hand. Do not overtighten.

Step 4: Remove the Upper Radiator Hose

• Locate the upper hose at the top of the radiator and where it meets the engine.
• If you have spring-type clamps, use hose clamp pliers or regular pliers to squeeze the clamp tabs and slide the clamp away from the hose end.
• If you have screw-type clamps, use the flathead screwdriver to loosen the clamp and slide it back.
• Twist the hose gently at the radiator end to break it loose, then pull it off. Use pliers to help if it’s stuck.
• If the hose is very stuck, carefully cut a slit lengthwise along the hose end with a utility knife and peel it off. Do not cut into the plastic radiator neck.
• Repeat at the engine side and remove the hose completely.

Step 5: Remove the Lower Radiator Hose

• From underneath, locate the lower hose at the bottom of the radiator and where it meets the engine/water pump area.
• Use hose clamp pliers or pliers for spring clamps, or a flathead screwdriver for screw clamps, to loosen and slide the clamps back.
• Twist the hose to break it free, then pull it off the radiator side.
• Repeat at the engine side and remove the hose completely.
• Tip: Expect some extra coolant to spill when removing this hose.

Step 6: Clean the Hose Fittings

• Use clean rags to wipe the radiator necks and engine hose fittings until they are clean and smooth.
• Remove any old rubber stuck to the fittings with the utility knife very gently, if needed.
• Tip: Clean surfaces help prevent leaks.

Step 7: Install the New Upper Radiator Hose

• Compare the new upper hose to the old one to confirm shape and length are the same.
• Slide the new hose clamps onto the hose first.
• Push the hose fully onto the radiator neck using your hands; make sure it seats all the way against the stop.
• Place the clamp about 5–10 mm from the hose end and release it with hose clamp pliers or tighten with a flathead screwdriver for screw clamps.
• Repeat on the engine side: push hose fully on, position clamp, and secure it.
• No torque spec for spring clamps; for screw clamps, snug firmly but do not strip: Torque to about 3–4 Nm (2–3 ft-lbs).

Step 8: Install the New Lower Radiator Hose

• Compare the new lower hose to the old one to confirm shape and length.
• Slide hose clamps onto the hose.
• From underneath, push the hose onto the engine-side fitting first, seat it fully, then secure the clamp with hose clamp pliers or flathead screwdriver.
• Push the other end onto the radiator lower outlet and secure the clamp.
• Again, for screw clamps: Torque to about 3–4 Nm (2–3 ft-lbs).

Step 9: Refit Under Cover and Lower the Vehicle

• Reinstall the plastic under cover with the 10mm socket and ratchet.
• Reinsert any clips using the plastic trim tool.
• Raise the RAV4 slightly with the floor jack, remove the jack stands, and lower the vehicle to the ground.

Step 10: Refill the Cooling System

• Make sure the radiator drain cock is closed.
• Remove the radiator cap completely.
• Using a funnel, slowly pour new premixed coolant into the radiator until it is full.
• Fill the coolant reservoir (plastic tank) to the FULL mark using the funnel.
• Tip: Pour slowly to reduce trapped air.

Step 11: Bleed Air from the System

• Leave the radiator cap off for now.
• Start the engine and let it idle. Turn the cabin heater to HOT and fan on low.
• Watch the coolant level in the radiator neck. As the thermostat opens, the level may drop.
• Add more coolant with the funnel to keep it near the top.
• Squeeze the upper radiator hose gently with your hand several times to help push out air bubbles.
• Once warm air blows from the heater and the upper hose is hot, most air is out.
• Top off the radiator to just below the neck and install the radiator cap firmly.
• Torque for radiator cap: Hand-tight until it seats and clicks; no wrench.

Step 12: Final Checks for Leaks

• With the engine still idling, inspect the upper and lower hose connections using a flashlight.
• Look for any drips or wet spots at each clamp and fitting.
• Shut off the engine and let it cool completely (about 1–2 hours).
• Recheck the coolant level in the reservoir and top up to FULL if needed using the funnel.

---

✅ After Repair

• Drive the RAV4 normally for 10–15 minutes while watching the temperature gauge; it should stay in the normal middle range.
• After your first drive, park and check under the front of the vehicle for any signs of coolant leaks.
• Once the engine is cool, recheck coolant level in reservoir and top up if it has dropped.
• Over the next few days, glance at the ground where you park and at the reservoir level to ensure everything stays dry and stable.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$400 (parts + labor for both hoses and coolant)

DIY Cost: $70-$140 (hoses, clamps, coolant)

You Save: $180-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
