🔧 Jetta - Radiator Hose Replacement

Replacing a radiator hose on your Jetta means draining (or catching) some coolant, removing the old hose and clamps, then installing the new hose and refilling/bleeding the cooling system. This prevents overheating and coolant leaks that can leave you stranded.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine—hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands before working underneath; never rely on a jack alone.
• ⚠️ Coolant is toxic—keep it off the ground and away from pets/kids.
• ⚠️ If you raise the front end, chock the rear wheels so the car can’t roll.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Torx T25 bit
• 1/4" ratchet
• 3" extension (1/4" drive)
• 10mm socket
• Slip-joint pliers
• Hose clamp pliers (specialty)
• Pick tool (hook pick)
• Trim clip removal tool
• Funnel
• Shop towels
• Flashlight
• Cooling system vacuum fill tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Radiator hose (upper or lower, as needed) - Qty: 1
• Hose clamps (matching the hose ends) - Qty: 2
• VW-compatible coolant (G13 type) - Qty: 1-2 gallons
• Distilled water - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool fully (at least 2-3 hours).
• Put the heater setting to HOT later during bleeding; you don’t need to change any infotainment menu settings first.
• If you’re replacing the lower hose, plan to raise the front of the car for access and place a drain pan underneath.
• Vacuum fill tool pulls air out before refilling. (It helps prevent air pockets, which can cause overheating.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify the hose you’re replacing

• Use flashlight to locate the leaking/damaged hose.
• Upper radiator hose is typically the hose running to the top portion of the radiator area.
• Lower radiator hose routes to the lower portion of the radiator and is usually harder to access from above.

Step 2: Depressurize the cooling system (cold engine only)

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant expansion tank cap by hand to release any leftover pressure, then re-tighten it loosely.

Step 3: Raise the front and remove the lower cover (if needed)

• Place wheel chocks behind the rear wheels.
• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine cover/undertray using Torx T25 bit, 1/4" ratchet, and 3" extension.
• If there are push-clips, remove them with a trim clip removal tool.

Step 4: Drain/catch coolant to minimize the spill

• Position a drain pan (at least 2-gallon) under the hose connection you’re opening.
• Use shop towels under the joint to guide drips into the pan.
• If you’re doing the lower hose, expect more coolant to drain when you remove it.

Step 5: Remove the clamp(s)

• If your Jetta uses spring-style clamps, squeeze and slide the clamp back with hose clamp pliers (specialty).
• If space is tight, use slip-joint pliers carefully.
• Move the clamp far enough back that it’s fully off the hose barb area.

Step 6: Remove the old hose

• Twist the hose to break it free by hand (don’t yank straight off).
• If it’s stuck, gently work around the hose edge with a pick tool (hook pick) to break the seal. (A pick is a small hooked tool used to lift an edge.)
• Pull the hose off slowly and let coolant drain into the drain pan.

Step 7: Prep the connections

• Wipe the radiator/engine necks clean with shop towels.
• Use flashlight to check for cracks, broken plastic necks, or heavy corrosion.
• Don’t scrape plastic fittings aggressively.

Step 8: Install the new hose and clamps

• Slide new clamps onto the new hose before fitting it.
• Push the hose fully onto the fitting until it bottoms out (you should feel it seat).
• Position the clamp in the same spot as the original and compress/release it using hose clamp pliers (specialty) (or slip-joint pliers).
• Make sure the clamp sits evenly all the way around.

Step 9: Reinstall the undertray (if removed)

• Reinstall the lower engine cover using Torx T25 bit, 1/4" ratchet, and 3" extension.
• Reinstall any push-clips using a trim clip removal tool as needed.

Step 10: Refill coolant (correct type and mix)

• Mix VW-compatible coolant (G13 type) with distilled water at about a 50/50 ratio unless your coolant is pre-mixed.
• Refill at the expansion tank using a funnel.
• Best method: use a cooling system vacuum fill tool (specialty) to pull vacuum, then draw in the mixed coolant. (This helps prevent air pockets.)

Step 11: Bleed air and check operation

• Start the engine and set the HVAC temperature to HOT and fan to LOW.
• Let it idle while watching the coolant level; top off using a funnel as needed.
• As it warms up, carefully squeeze the upper hose by hand (with nitrile gloves) to help move air.
• Watch for leaks at both ends of the new hose using a flashlight.
• Once warm, shut the engine off, let it cool, then set coolant to the MAX line if needed.

---

✅ After Repair

• Check for leaks with the engine idling and again after a short 10-15 minute drive.
• Recheck coolant level the next morning (fully cold) and top off to the MAX line if needed.
• Make sure cabin heat works normally; weak heat can mean trapped air.
• Dispose of old coolant properly (sealed container; take to a recycling center/parts store).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $40-$180 (parts only)

You Save: $210-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

---

Quick questions so I can tailor the steps exactly:

• Which hose are you replacing on your Jetta: upper or lower radiator hose?

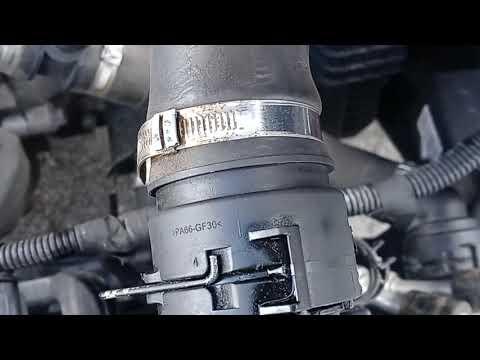

• Is your new hose the same style as the old one (standard hose ends), or does it have a quick-connect locking fitting on one end?
