🔧 Sequoia - Power Steering Pump Replacement

On your Sequoia, the power steering pump is belt-driven and supplies hydraulic pressure for easy steering. Replacing it involves removing the drive belt, swapping the pump, and then bleeding air out of the system so the steering stays smooth and quiet.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot parts can burn you.
• ⚠️ Use jack stands if you raise the front; never rely on a jack alone.
• ⚠️ Power steering fluid is slippery and flammable; wipe spills immediately.
• ⚠️ Keep fluid off belts and pulleys to prevent belt slip.
• ⚠️ Battery disconnect is recommended to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Fender cover
• Shop rags
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet
• Socket set 10mm-19mm
• Wrench set 10mm-19mm
• Line wrench set 14mm-17mm
• Torque wrench 10-80 ft-lbs
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Pliers
• Hose pinch-off pliers (specialty)
• Fluid transfer pump (specialty)
• Vacuum bleeder (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pump O-ring set - Qty: 1
• Power steering reservoir return hose clamp - Qty: 1
• Serpentine drive belt - Qty: 1
• Power steering fluid (Dexron III / ATF-type) - Qty: 2 quarts
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and install a fender cover.
• Disconnect the negative battery cable using a 10mm socket.
• If you need more access, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Use a fluid transfer pump (specialty) to suck old fluid from the reservoir into a drain pan.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove covers for access

• Remove any engine appearance cover(s) using a 10mm socket and 3/8-inch drive ratchet.
• Lay bolts in a tray so nothing gets lost. Take a photo before disassembly.

Step 2: Loosen the drive belt

• Locate the belt tensioner and rotate it with a serpentine belt tool (specialty) to relieve belt tension.
• Slip the belt off the power steering pump pulley, then slowly release the tensioner.
• If the belt is cracked or glazed, plan to replace it.

Step 3: Drain and disconnect the return hose

• Place a drain pan (at least 2-gallon) under the pump area.

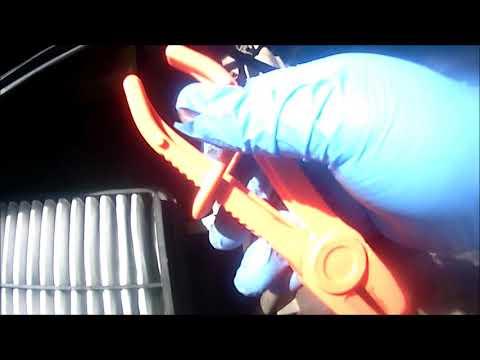

• Pinch the return hose with hose pinch-off pliers (specialty) to reduce mess.
• Use pliers to slide the clamp back, then pull the return hose off.
• Let the fluid drain into the pan and plug the hose end with a rag.

Step 4: Disconnect the high-pressure line

• Clean the fitting area with shop rags so dirt doesn’t enter the system.
• Use a line wrench set 14mm-17mm to loosen the high-pressure line fitting at the pump.
• Remove the line carefully and aim it into the drain pan.
• Cap/cover the open line with a clean rag to keep dirt out.

Step 5: Remove the pump mounting bolts

• Support the pump with one hand.
• Remove the pump mounting bolts using a socket set 10mm-19mm with a 3/8-inch drive ratchet.
• Lift the pump out of the engine bay.

Step 6: Transfer parts to the new pump

• If your new pump does not come with a pulley, the pulley must be swapped using the correct puller/installer; if that applies, stop and tell me and I’ll give the exact pulley procedure.
• Install new O-rings from the power steering pump O-ring set where applicable.
• Lightly coat O-rings with fresh fluid before installation. Dry O-rings can tear.

Step 7: Install the new pump

• Position the new pump and start all mounting bolts by hand.
• Tighten the mounting bolts with a torque wrench 10-80 ft-lbs to Torque to 35 Nm (26 ft-lbs).

Step 8: Reconnect the high-pressure line

• Thread the high-pressure line fitting by hand first to avoid cross-threading.
• Snug the fitting with a line wrench set 14mm-17mm, then torque with a torque wrench 10-80 ft-lbs to Torque to 44 Nm (32 ft-lbs).
• Wipe the area clean with shop rags.

Step 9: Reconnect the return hose

• Push the return hose fully onto the pump nipple.
• Install the clamp using pliers.
• Remove the hose pinch-off pliers (specialty).

Step 10: Reinstall/route the drive belt

• Route the belt correctly around all pulleys.
• Rotate the tensioner with the serpentine belt tool (specialty) and slip the belt onto the power steering pump pulley.
• Release the tensioner slowly and confirm the belt is seated in every pulley groove.

Step 11: Fill with fluid

• Fill the reservoir with power steering fluid (Dexron III / ATF-type).
• Do not overfill; bring it to the “COLD” mark if the engine is cold.

Step 12: Bleed air from the system

• With the front wheels off the ground (on jack stands (rated 3-ton minimum)), leave the engine OFF.
• Turn the steering wheel slowly from lock-to-lock about 10 times to push air out.
• Top off fluid as the level drops.
• Reconnect the battery negative cable using a 10mm socket.
• Start the engine and let it idle; do not rev it.
• Turn lock-to-lock 5 more times, slowly, and watch for bubbles/foam in the reservoir.
• If fluid foams, shut it off, wait 10 minutes, and repeat until the fluid stays clear.
• If you have a vacuum bleeder (specialty), you can pull air out at the reservoir to speed this up.

---

✅ After Repair

• Check for leaks at the high-pressure fitting and return hose while idling.
• Verify the fluid level is at the correct mark after a short test drive.
• Listen for whining; mild noise can happen until all air is out.
• Recheck belt alignment on the pulleys and clean any spilled fluid with brake cleaner.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
