🔧 Land Cruiser - Power Steering Pump Replacement

On your Land Cruiser, the power steering pump is belt-driven and supplies hydraulic pressure so the steering stays light and smooth. Replacing it usually involves removing the drive belt, disconnecting the pressure/return hoses, swapping the pump, then refilling and bleeding the system to remove air.

Difficulty Level: Advanced | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool fully before working near the belt and hoses.
• 🛑 Power steering fluid can be hot and can spray—wear eye protection and gloves.
• 🛑 Support the vehicle with jack stands if you lift it; never rely on a jack alone.
• 🛑 Keep hands/tools clear of the belt path; do not start the engine until tools are removed.
• 🛑 Battery disconnect is recommended if you’ll work near the starter/main power wiring with metal tools.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Shop rags
• Serpentine belt tool or 14mm long-handled wrench
• Metric socket set (10mm-19mm)
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Metric combination wrench set (10mm-19mm)
• Line wrench set (14mm-19mm)
• Torque wrench (10-100 ft-lbs)
• Hose clamp pliers
• Trim clip removal tool
• Funnel
• Hand suction pump or fluid syringe (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering fluid (Toyota-approved ATF for power steering system) - Qty: 2-3 quarts
• Pressure line sealing washers/O-rings (as equipped) - Qty: 1 set
• Return hose clamp(s) (optional if originals are weak) - Qty: 1-2
• Serpentine belt (optional if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and locate the power steering reservoir and pump (front of engine, belt-driven).
• Use a hand suction pump or fluid syringe (specialty) to pull old fluid out of the reservoir to reduce spillage. (A suction pump is a hand tool that pulls fluid out through a hose.)
• If you’ll lift the front end for easier bleeding later, loosen nothing yet—lift only when ready and support with jack stands.
• If desired for safety, disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove covers for access

• Remove any upper engine cover/air ducting that blocks access using a 10mm socket and trim clip removal tool.
• Place a drain pan under the pump area.

Step 2: Release serpentine belt tension

• Note the belt routing (take a quick photo).
• Use a serpentine belt tool or 14mm long-handled wrench on the belt tensioner to rotate the tensioner and slide the belt off the power steering pump pulley.
• Inspect the belt for cracks/glazing; replace if needed.

Step 3: Disconnect the return hose at the reservoir or pump

• Use hose clamp pliers to move the clamp back on the return hose.
• Carefully twist and pull the hose off (use shop rags to catch fluid).
• Tip: Twisting breaks the hose seal.

Step 4: Disconnect the high-pressure line at the pump

• Clean the area around the fitting with shop rags so dirt can’t enter.
• Use the correct line wrench (preferred over an open-end wrench to avoid rounding) to loosen the pressure line fitting.
• Once loose, finish by hand and direct the line into the drain pan.
• Remove and discard any old sealing washers/O-rings and plan to install new ones.

Step 5: Unbolt and remove the power steering pump

• Remove the pump mounting bolts using a metric socket, ratchet, and extensions as needed.
• Support the pump with one hand while removing the last bolt.
• Lift the pump out carefully without snagging hoses or wiring.

Step 6: Transfer parts (if required) and install the new pump

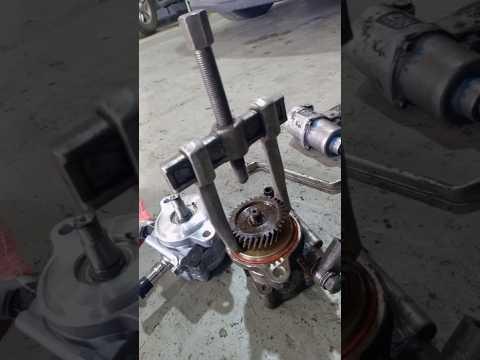

• If your replacement pump does not include the pulley or fittings, transfer them following the pump manufacturer’s instructions.
• Position the new pump and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts evenly using a torque wrench: Torque to factory spec.

Step 7: Reconnect the high-pressure line with new seals

• Install new sealing washers/O-rings (as equipped).
• Thread the fitting by hand first, then tighten using a line wrench.
• Final-tighten with a torque wrench if accessible: Torque to factory spec.

Step 8: Reconnect the return hose

• Push the return hose fully onto its nipple.
• Reposition the clamp using hose clamp pliers.

Step 9: Reinstall the serpentine belt

• Route the belt per your photo.
• Use a serpentine belt tool or 14mm long-handled wrench to move the tensioner and slide the belt onto the power steering pump pulley.
• Double-check that the belt is seated in every pulley groove.

Step 10: Refill and bleed the power steering system

• Fill the reservoir with Toyota-approved ATF for the power steering system using a funnel to the correct level.
• If possible, raise the front wheels off the ground with a floor jack and support with jack stands.
• Engine OFF: slowly turn the steering wheel from lock-to-lock 10-15 times, pausing at each end (do not force it).
• Check the reservoir level and top off as needed.
• Start the engine and let it idle; keep the cap loosely on to reduce splashing.
• Slowly turn lock-to-lock a few more times while watching for foaming/bubbles.
• Tip: Don’t hold full lock.

Step 11: Reinstall covers and clean up

• Reinstall any ducts/covers using a 10mm socket and trim clip removal tool.
• Wipe any spilled fluid and confirm hoses are not rubbing on the belt.

---

✅ After Repair

• With the engine idling, check carefully for leaks at the pressure fitting and return hose.
• Confirm the steering is smooth and quiet. Mild noise can happen briefly if tiny air remains.
• Recheck fluid level after a 10-15 minute drive, then again the next day.
• If the fluid stays foamy or the steering groans, stop and re-bleed; persistent foam usually means an air leak on the suction/return side.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$750 (parts only)

You Save: $650-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
