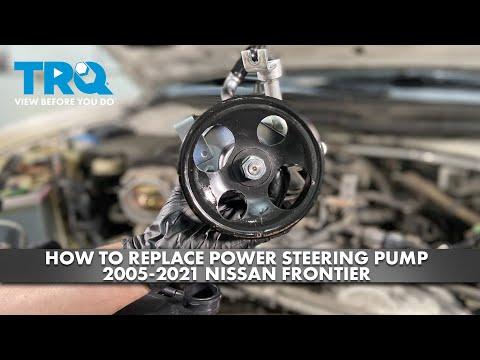

🔧 Frontier - Power Steering Pump Replacement

You’ll remove the belt, disconnect the power steering lines, swap the pump, then refill and bleed the system. This is important because a leaking or noisy pump can contaminate the fluid and damage the steering gear over time.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine—hot belts and fluid can burn you.
• ⚠️ Support the truck securely if you raise it: use jack stands on solid ground.
• ⚠️ Keep power steering fluid off the drive belt—slipping can cause loss of charging/overheating.
• ⚠️ Clean around hose connections before opening them to keep dirt out.
• ⚠️ Battery disconnect is not required, but it’s safer to disconnect the negative cable if your tools may contact the alternator positive stud.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Shop rags
• Funnel
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (10–80 ft-lbs range)
• 14mm combination wrench
• 17mm flare-nut wrench
• Hose clamp pliers
• Power steering pulley puller/installer (specialty)
• Flat-blade screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pump pulley (only if damaged) - Qty: 1
• High-pressure line O-ring/seal (pump side) - Qty: 1
• Return hose clamp (only if original is weak/damaged) - Qty: 1
• Power steering fluid (Nissan PSF or Dexron III/Mercon ATF compatible) - Qty: 2 quarts
• Serpentine drive belt (recommended if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park your Frontier on level ground, set the parking brake, and chock the rear wheels.
• Place a drain pan under the front of the engine where the pump and hoses sit.
• Wipe dirt off the pump body and hose fittings so debris can’t enter the system.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative cable and tuck it aside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve belt tension and remove the belt from the pump

• Locate the serpentine belt and the automatic tensioner near the front of the engine.
• Use a 14mm socket and 3/8" drive ratchet on the tensioner arm bolt, rotate to relieve tension, and slip the belt off the power steering pump pulley.
• Tip: Take a quick belt-routing photo first.

Step 2: Drain as much power steering fluid as possible

• Remove the power steering reservoir cap.
• At the pump, use hose clamp pliers to slide the return-hose clamp back.
• Twist and pull the return hose off the pump nipple (use a flat-blade screwdriver gently if it’s stuck).
• Point the hose into the drain pan and let it drain.

Step 3: Disconnect the high-pressure line at the pump

• Place rags under the fitting to catch fluid.
• Use a 17mm flare-nut wrench to loosen the high-pressure line fitting at the pump.
• Flare-nut wrench = grips more sides to prevent rounding.
• Once loose, finish unthreading by hand and move the line slightly aside.

Step 4: Remove the power steering pump from its bracket

• Remove the pump mounting bolts using a 12mm socket and 14mm socket with a 3/8" drive ratchet and extension as needed.
• Lift the pump out carefully, keeping the pulley from snagging hoses/wiring.

Step 5: Transfer the pulley to the new pump

• If your replacement pump does not include a pulley, remove the pulley from the old pump using a power steering pulley puller/installer (specialty).
• Pulley puller/installer = removes/presses a press-fit pulley safely.
• Install the pulley onto the new pump with the installer tool, pressing it on straight.
• Press the pulley until it aligns with the other belt pulleys (same plane).

Step 6: Install the new pump

• Set the new pump in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten the pump mounting bolts with a 12mm socket/14mm socket.
• Torque to 34 Nm (25 ft-lbs).

Step 7: Reconnect the high-pressure line and return hose

• Install a new high-pressure line O-ring/seal at the pump side (match the old one’s position).
• Thread the high-pressure fitting in by hand first, then tighten with the 17mm flare-nut wrench.
• Torque to 44 Nm (32 ft-lbs).
• Push the return hose fully onto the pump nipple, then move the clamp back into position with hose clamp pliers.

Step 8: Reinstall the serpentine belt

• Route the belt correctly, leaving the power steering pulley for last.
• Use the 14mm socket and ratchet to rotate the tensioner, then slip the belt onto the power steering pulley.
• Visually confirm the belt sits centered in every pulley groove.

Step 9: Refill and bleed the power steering system

• Fill the reservoir using a funnel with power steering fluid (Nissan PSF or Dexron III/Mercon ATF compatible) to the COLD level.
• With the front wheels off the ground (use floor jack and jack stands), engine OFF, turn the steering wheel slowly lock-to-lock 15–20 times.
• Top off fluid as the level drops (do not let it run dry).
• Start the engine and let it idle. Turn lock-to-lock slowly 5–10 times, pausing at the ends briefly (don’t hold hard against the stop).
• Check for foamy fluid (air). If foamy, shut off, wait 5–10 minutes, and repeat until clear.
• Set final level per the reservoir markings.

---

✅ After Repair

• With the engine idling, inspect the pump, high-pressure fitting, and return hose for leaks.
• Verify steering is smooth and quiet during a short test drive (low-speed turns both directions).
• Recheck fluid level after the test drive and top off if needed.
• Check the serpentine belt for squeal or wandering—misaligned pulley usually causes this.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
