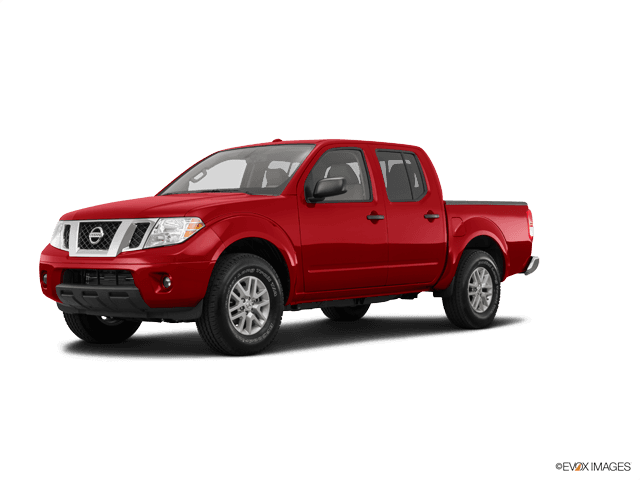

🔧 Frontier - Power Steering Pump Replacement

The power steering pump provides hydraulic pressure so the steering feels light and smooth. When it leaks, whines, or loses assist, replacing the pump (and sealing washers/O-rings) restores proper pressure and prevents fluid loss.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your A4—use jack stands, never only a jack.
• ⚠️ Keep hands clear of the belt drive with engine running.
• ⚠️ Power steering fluid can damage paint—wipe spills immediately.
• ⚠️ Don’t hold the steering at full lock—can overheat fluid.
• ⚠️ Battery disconnect is recommended to prevent accidental starts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Shop rags
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10-100 ft-lbs range)
• Metric combination wrench set (10mm-19mm)
• Flare nut wrench set (14mm-17mm)
• Flat-blade screwdriver
• Pliers
• Serpentine belt tool or 1/2" breaker bar
• Power steering pulley puller/installer kit (specialty)
• Funnel
• Fluid transfer syringe or turkey baster
• Line caps/plugs assortment (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pressure line sealing washers/O-rings (as equipped) - Qty: 1 set
• Power steering return hose clamp - Qty: 1
• Drive belt - Qty: 1
• Nissan-approved power steering fluid (ATF Matic D / Dexron III equivalent) - Qty: 2 quarts

---

📋 Before You Begin

• 🅿️ Park on level ground, wheels straight, transmission in neutral, parking brake set.
• 🛞 Chock the rear wheels, then raise the front and set it on jack stands.
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧴 Use a fluid transfer syringe or turkey baster to remove as much old fluid as possible from the reservoir.
• Take photos of belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove skid plate/splash shield (if equipped)

• Place a drain pan underneath the front of the engine.
• Remove the front skid plate or splash shield bolts using a 12mm socket and 3/8" ratchet.

Step 2: Loosen the drive belt

• Relieve belt tension using a serpentine belt tool or 1/2" breaker bar on the tensioner (or loosen the adjuster/lock bolts if your belt uses an adjuster).
• Slip the belt off the power steering pump pulley and inspect it for cracks or glazing.

Step 3: Remove the power steering pump pulley

• Use a power steering pulley puller/installer kit (specialty) to pull the pulley off the pump shaft.
• A pulley puller prevents bending the pulley.

Step 4: Disconnect the hoses/lines from the pump

• Put shop rags under the pump and keep the drain pan positioned to catch fluid.
• Disconnect the low-pressure return hose using pliers, then twist and pull the hose off carefully.
• Disconnect the high-pressure line using a flare nut wrench (a flare nut wrench grips more sides of the fitting to reduce rounding).
• Cap/plug the open lines using line caps/plugs assortment (specialty) to reduce mess and keep dirt out.
• When reinstalling the high-pressure fitting: Torque to 44 Nm (32 ft-lbs).

Step 5: Unbolt and remove the pump

• Remove the pump mounting bolts using a 14mm socket and 3/8" ratchet.
• Lift the pump out of the bracket and out of the engine bay.
• When reinstalling pump mounting bolts: Torque to 24 Nm (18 ft-lbs).

Step 6: Transfer parts to the new pump (as needed)

• If the reservoir or bracket transfers over, move it to the new pump using a 10mm socket.
• Replace any O-rings/sealing washers you disturbed—do not reuse flattened seals.

Step 7: Install the new pump

• Set the pump into position and start all mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts with a torque wrench: Torque to 24 Nm (18 ft-lbs).

Step 8: Reconnect the lines/hoses

• Reconnect the return hose and secure it with a new clamp using pliers.
• Reconnect the high-pressure line using a flare nut wrench: Torque to 44 Nm (32 ft-lbs).
• Wipe everything clean with shop rags so you can spot leaks later.

Step 9: Install the pulley

• Use the power steering pulley puller/installer kit (specialty) to press the pulley onto the new pump shaft.
• Press it until the pulley sits aligned with the other belt pulleys (same “plane” as the others).

Step 10: Reinstall and tension the belt

• Route the belt back on using your photo as reference.
• Apply tension with the serpentine belt tool or 1/2" breaker bar (or set tension via the adjuster if equipped).
• If it squeals, tension may be too low.

Step 11: Refill fluid and bleed the system

• Fill the reservoir with Nissan-approved power steering fluid (ATF Matic D / Dexron III equivalent) using a funnel to the “MAX” line.
• With the engine OFF and front wheels off the ground, turn the steering wheel slowly lock-to-lock 10-15 times.
• Check fluid level, top off, and repeat until bubbles reduce.
• Start the engine and let it idle; do not rev.
• Turn lock-to-lock slowly 5-10 times, never holding full lock more than 1 second.
• Shut off, recheck fluid level, and top off to the correct mark.

Step 12: Reinstall skid plate/splash shield

• Reinstall the skid plate/splash shield using a 12mm socket and 3/8" ratchet.
• Tighten fasteners snugly and evenly.

---

✅ After Repair

• 🧪 Start the engine and listen—whine usually means air is still trapped.
• 🔎 Check for leaks at the pressure fitting and return hose while idling.
• 🛣️ Road test at low speed first, then recheck fluid level and top off if needed.
• 🧼 Clean any spilled fluid off belts/pulleys to prevent squeal.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$400 (parts only)

You Save: $300-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
