🔧 GLE - Power Steering Pump Replacement

On your GLE, the power steering pump is belt-driven and supplies hydraulic pressure to make steering easy. Replacing it involves removing the serpentine belt, disconnecting the high/low pressure lines, swapping the pump, then refilling and bleeding the system to remove air.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: hydraulic, belt-driven pump (most GLE350). Torque values can vary slightly by pump/bracket; use the values below as typical and don’t over-tighten aluminum threads.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before working near the belt and front of engine.
• ⚠️ Keep hands/tools clear of pulleys—never work with the engine running.
• ⚠️ Power steering fluid is slippery and flammable—wipe spills immediately.
• ⚠️ Support the vehicle securely if you raise it—never rely on a jack alone.
• ⚠️ Battery disconnect is not strictly required, but recommended to prevent accidental cranking while your hands are near the belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• Fluid transfer syringe (specialty)
• Trim clip removal tool
• Serpentine belt tool (specialty)
• 17mm socket
• 10mm socket
• 13mm socket
• E10 external Torx socket
• E12 external Torx socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Torque wrench (10–100 Nm range)
• Line/flare-nut wrench set (17mm, 19mm)
• Pick set
• Shop rags
• Brake cleaner spray
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering fluid (MB spec 236.3 / CHF 11S equivalent) - Qty: 2 liters
• Power steering pressure line sealing washers/O-rings kit - Qty: 1
• Power steering return hose clamp(s) - Qty: 1-2
• Serpentine belt - Qty: 1 Optional but recommended if belt is cracked/glazed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Turn the steering wheel so the front wheels point straight.
• Open the hood and remove the engine cover (pull up firmly by hand).
• If disconnecting the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Place a drain pan under the front of the engine where the pump/lines are.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove lower splash shield (if equipped)

• Raise the front safely with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove underbody fasteners using a trim clip removal tool and 10mm socket.
• Set the shield aside in order so reinstallation is easier.

Step 2: Extract old fluid from the reservoir

• Open the reservoir cap.
• Use a fluid transfer syringe (specialty) to suck out as much fluid as possible into the drain pan.
• Less fluid now = less mess later.

Step 3: Relieve serpentine belt tension and remove belt from the pump

• Use a paint marker to draw the belt routing, or take a photo.
• Use a serpentine belt tool (specialty) with a 17mm socket on the belt tensioner and rotate to relieve tension.
• Slide the belt off the power steering pump pulley first, then slowly release the tensioner.

Step 4: Disconnect the return hose (low-pressure line)

• Place shop rags under the pump connections.
• Use pliers integrated on your trim clip removal tool (or carefully by hand) to move the clamp back.
• Twist and pull the return hose off the pump/reservoir nipple.
• Let fluid drain into the drain pan, then plug the hose with a rag to reduce dripping.

Step 5: Disconnect the pressure line (high-pressure fitting)

• Use a line/flare-nut wrench set (17mm, 19mm) to loosen the pressure fitting (flare-nut wrenches grip more sides and help prevent rounding).
• Once loose, finish by hand and catch fluid in the drain pan.
• Remove and discard old sealing washers/O-rings using a pick set.

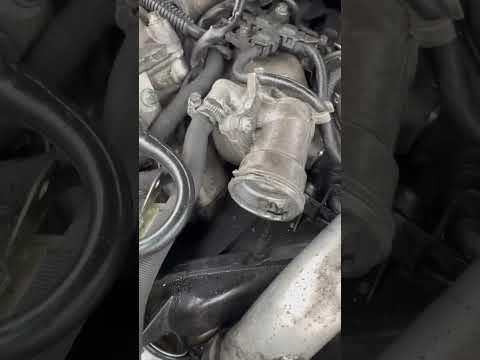

Step 6: Unbolt and remove the power steering pump

• Locate the pump mounting bolts (commonly external Torx on Mercedes).
• Use an E10 external Torx socket or E12 external Torx socket with a 3/8" drive ratchet and extensions (3" and 6") to remove the mounting bolts.
• Support the pump with your free hand as the last bolt comes out.
• Remove the pump from the engine bay.

Step 7: Prep the new pump

• Compare the new pump to the old one (mount points, pulley alignment, and line ports).
• Install new sealing washers/O-rings from the power steering pressure line sealing washers/O-rings kit (never reuse the old seals).
• Clean the line ends and sealing surfaces using brake cleaner spray and shop rags.

Step 8: Install the new pump

• Position the pump and start all mounting bolts by hand first to avoid cross-threading.
• Tighten bolts using an E10 external Torx socket / E12 external Torx socket.
• Final tighten with a torque wrench (10–100 Nm range): Torque to 25 Nm (18 ft-lbs) for typical pump mounting bolts.

Step 9: Reconnect the pressure and return lines

• Start the high-pressure fitting by hand to avoid cross-threading.
• Tighten with a line/flare-nut wrench set (17mm, 19mm).
• Final tighten: Torque to 30 Nm (22 ft-lbs) for a typical banjo/pressure fitting.
• Reinstall the return hose and position the clamp using your trim clip removal tool (or by hand).

Step 10: Reinstall serpentine belt

• Route the belt according to your photo/marking.
• Use the serpentine belt tool (specialty) with a 17mm socket to rotate the tensioner.
• Slip the belt over the power steering pump pulley last, then release the tensioner slowly.
• Double-check the belt is seated in every pulley groove (this is critical).

Step 11: Refill and bleed the power steering system

• Fill the reservoir using a funnel with power steering fluid (MB spec 236.3 / CHF 11S equivalent) to the correct level.
• With the engine OFF, turn the steering wheel slowly from lock-to-lock 10–15 times (lock-to-lock means full left to full right).
• Check fluid level and top off using the funnel.
• Start the engine and let it idle; do NOT rev the engine.
• Turn lock-to-lock 5–8 more times, slowly.
• Shut the engine off, recheck level, and top off as needed.
• Foamy fluid means air—keep bleeding slowly.

Step 12: Reinstall splash shield and lower vehicle

• Reinstall the underbody shield using the 10mm socket and trim clip removal tool.
• Lower the vehicle from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Start the engine and verify steering is smooth and quiet (no whining/groaning).
• Inspect for leaks at the pressure fitting and return hose with a flashlight after idling 2–3 minutes.
• Recheck the reservoir level after a short test drive, then again the next morning (tiny air pockets can purge overnight).
• If steering is jerky or fluid stays foamy, stop driving and re-bleed—air can damage the new pump.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
