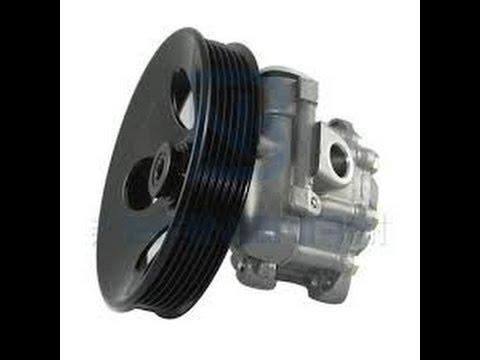

🔧 Grand Caravan - Power Steering Pump Replacement

You’ll remove the belt-driven power steering pump, transfer the pulley to the new pump, then refill and bleed the system so the steering is quiet and smooth. Most problems after this job come from air in the system or reused sealing O-rings.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

Assumption: your Grand Caravan uses a hydraulic pump with a press-fit pulley (common on the 3.6L).

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot exhaust/fluids can burn you.
• ⚠️ Support the van with jack stands; never rely on a jack.
• ⚠️ Keep fingers/tools clear of the belt path when rotating the engine.
• ⚠️ Power steering fluid is slippery—clean spills immediately.
• ⚠️ Battery disconnect is recommended to prevent accidental starts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Shop rags
• Metric socket set (8mm-18mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs)
• Extensions (3" and 6")
• Serpentine belt tool or 15mm wrench
• Metric combination wrench set (10mm-18mm)
• Line wrench set (flare nut) (16mm-18mm)
• Flat trim tool
• Hose clamp pliers
• Funnel
• Power steering pump pulley puller/installer kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pressure line O-ring/seal - Qty: 1
• Power steering return hose clamp - Qty: 1
• Power steering fluid (ATF+4) - Qty: 2 quarts
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• Brake cleaner or degreaser - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Turn the steering wheel so the front wheels point straight ahead.
• Disconnect the battery negative cable using a 10mm socket.
• Plan to lift the front end for bleeding (front wheels off the ground makes bleeding much easier).
• A “line wrench” grips fittings to prevent rounding.
• A pulley puller/installer presses the pulley off/on safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and access the front of the engine

• Use a floor jack (rated 3-ton minimum) to lift the front and set it on jack stands (rated 3-ton minimum).
• If access is tight, remove the right-front splash shield fasteners using a flat trim tool and 8mm socket.

Step 2: Remove the serpentine belt

• Place a serpentine belt tool or 15mm wrench on the belt tensioner and rotate to relieve tension.
• Slip the belt off the power steering pump pulley, then off the rest of the pulleys.
• Take a quick photo of belt routing.

Step 3: Drain the power steering system

• Position a drain pan (at least 2-gallon) under the pump/hoses.
• Use hose clamp pliers to release the return hose clamp at the reservoir/pump return port (whichever is easiest to reach).
• Twist and pull the return hose off using shop rags to catch fluid.
• Let it drain fully, then cap/raise the hose to reduce dripping.

Step 4: Disconnect the pressure line from the pump

• Clean around the fitting using brake cleaner or degreaser and shop rags.
• Use a line wrench set (flare nut) (16mm-18mm) to loosen the high-pressure line fitting at the pump.
• Remove the fitting and discard the old O-ring/seal.
• Line wrenches help prevent rounding the nut.

Step 5: Remove the power steering pump

• Unplug any nearby brackets/retainers as needed using a flat trim tool.
• Remove the pump mounting bolts using a metric socket set (8mm-18mm), 3/8" drive ratchet, and extensions (3" and 6").
• Remove the pump from the engine bay and drain remaining fluid into the drain pan.
• Torque note: On reassembly, torque pump mounting bolts to OEM specification.

Step 6: Transfer the pulley to the new pump

• Secure the old pump on a stable surface.
• Use a power steering pump pulley puller/installer kit (specialty) to press the pulley off the old pump.
• Inspect the pulley grooves for damage and clean them with brake cleaner or degreaser.
• Use the same pulley puller/installer kit (specialty) to press the pulley onto the new pump.
• Press until pulley alignment matches the original; the belt must run straight.
• Never hammer a power steering pulley on.

Step 7: Install the new pump

• Set the new pump into place and start all mounting bolts by hand.
• Tighten mounting bolts evenly using a 3/8" drive ratchet.
• Final tighten using a 3/8" drive torque wrench (10-100 ft-lbs) and torque to OEM specification.

Step 8: Reconnect the pressure and return lines

• Install a new power steering pressure line O-ring/seal (lightly wet it with ATF+4 first).
• Thread the pressure fitting by hand to avoid cross-threading, then tighten with a line wrench set (flare nut) (16mm-18mm).
• Torque note: Torque the pressure fitting to OEM specification (do not over-tighten).
• Reconnect the return hose and install a new clamp using hose clamp pliers.

Step 9: Reinstall the serpentine belt

• Route the belt per the under-hood belt diagram (or your photo).
• Use a serpentine belt tool or 15mm wrench to rotate the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt is seated in every pulley groove.

Step 10: Fill and bleed the power steering system

• Fill the reservoir with power steering fluid (ATF+4) using a funnel to the “COLD” mark.
• Engine OFF bleed: With the front wheels still off the ground, slowly turn the steering wheel lock-to-lock 10–15 times.
• Check fluid level and top off with ATF+4 as it drops.
• Engine ON bleed: Reconnect the battery (use a 10mm socket), start the engine, and let it idle.
• Slowly turn lock-to-lock 5–10 times; do not hold against the stops.
• If the fluid looks foamy, shut off the engine and wait 10 minutes, then repeat.
• Slow steering prevents air from whipping into foam.

---

✅ After Repair

• With the engine idling, inspect for leaks at the pressure fitting and return hose using shop rags.
• Recheck the reservoir level and set it to the correct mark (COLD/HOT depending on temperature).
• Road test in a parking lot first; steering should be smooth and quiet.
• After the road test, recheck for leaks and recheck fluid level again.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
