🔧 Forester - Power Steering Pump Replacement

Your Forester uses a belt-driven hydraulic power steering pump. Replacing the pump involves removing the drive belt, disconnecting the pressure/return hoses, swapping the pump, then refilling and bleeding the system to prevent noise and hard steering.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns from hot coolant/exhaust.
• ⚠️ Power steering fluid is slippery and flammable—wipe spills immediately.
• ⚠️ Support the vehicle with jack stands before turning the steering with wheels off the ground.
• ⚠️ Keep hands clear of the belt drive while the engine is running.
• 🔌 Disconnecting the negative battery cable is recommended to prevent accidental starts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Funnel
• Shop rags
• Ratchet
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 10mm wrench
• 12mm wrench
• 14mm wrench
• 17mm wrench
• 17mm flare nut wrench
• Torque wrench (10–80 ft-lbs range)
• Hose clamp pliers
• Hose pinch-off pliers
• Flat trim tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

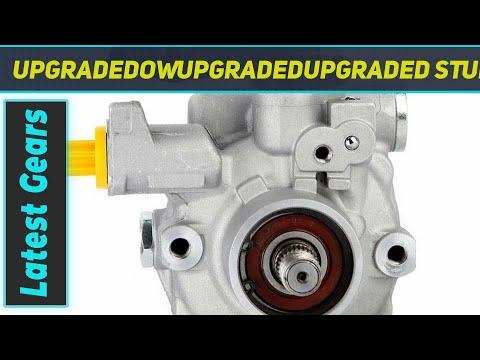

• Power steering pump - Qty: 1
• Power steering pressure line sealing washers - Qty: 2
• Power steering return hose clamp - Qty: 1
• Power steering fluid (Dexron III / ATF equivalent) - Qty: 2 quarts
• Accessory drive belt - Qty: 1 Replace if cracked or glazed

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔋 Use a 10mm wrench to disconnect the negative battery cable.
• 🧼 Clean around the pump and hoses so dirt doesn’t enter the system.
• 📌 Plan to use new sealing washers on the pressure connection to prevent leaks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working room

• Use a 10mm socket and flat trim tool to remove the intake snorkel/upper ducting as needed for access.
• Place a drain pan under the power steering pump area.

Step 2: Drain the reservoir (minimize the mess)

• Use hose pinch-off pliers to gently clamp the return hose (the low-pressure rubber hose) near the reservoir.
• Use hose clamp pliers to release the clamp, then pull the return hose off and aim it into the drain pan.
• Remove the reservoir cap and let the fluid drain. Use shop rags for spills.
• “Return hose” is the softer rubber hose.

Step 3: Remove tension from the accessory drive belt

• Use a 14mm wrench on the belt tensioner (spring-loaded arm) and rotate to relieve belt tension.
• Slip the belt off the power steering pump pulley.
• Inspect the belt for cracks or glazing; replace if needed.

Step 4: Disconnect the pressure line from the pump

• Place shop rags under the fitting to catch fluid.
• If your pump uses a banjo bolt connection: use a 17mm socket to remove the banjo bolt and discard the two old sealing washers.
• If your pump uses a flare fitting: use a 17mm flare nut wrench to loosen the line fitting (a flare nut wrench grips more sides of the nut to prevent rounding).
• Cap/cover the open line with a clean rag to keep dirt out.

Step 5: Disconnect the return hose at the pump

• Use hose clamp pliers to slide the clamp back.
• Twist and pull the hose off the pump nipple and drain into the drain pan.

Step 6: Unbolt and remove the pump

• Use a 12mm socket and ratchet to remove the pump mounting bolts.
• Lift the pump out carefully, keeping it upright to reduce spills.

Step 7: Transfer the pulley (only if your new pump doesn’t include one)

• Hold the pulley and use a 17mm socket to remove the pulley retaining nut (if equipped).
• Move the pulley to the new pump and install the nut.
• Torque to 49 Nm (36 ft-lbs).

Step 8: Install the new pump

• Set the pump in place and hand-start the mounting bolts.
• Use a 12mm socket to tighten mounting bolts evenly.
• Torque to 25 Nm (18 ft-lbs).

Step 9: Reconnect the hoses/lines

• Reconnect the return hose and secure the clamp using hose clamp pliers.
• Reconnect the pressure line:
• If banjo style: install new sealing washers (one on each side of the banjo fitting), then tighten the banjo bolt with a 17mm socket to 39 Nm (29 ft-lbs).
• If flare style: start the fitting by hand (avoid cross-threading), then tighten with a 17mm flare nut wrench to 30 Nm (22 ft-lbs).

Step 10: Reinstall the belt

• Route the belt correctly on all pulleys.
• Use a 14mm wrench to rotate the tensioner and slip the belt back onto the power steering pulley.
• Visually confirm the belt sits fully in every pulley groove.

Step 11: Refill and bleed the power steering system

• Fill the reservoir with Dexron III / ATF equivalent using a funnel to the “COLD” level.
• Lift the front of the vehicle with a floor jack and support it with jack stands.
• With the engine OFF, slowly turn the steering wheel lock-to-lock 15–20 times to push air out.
• Top off fluid as needed (don’t let the reservoir run low).
• Reconnect the battery using a 10mm wrench.
• Start the engine and let it idle. Turn lock-to-lock slowly a few more times.
• Check for foaming/bubbles; if present, shut off, wait 5 minutes, then repeat the bleed.
• Slow steering turns prevent new bubbles.

---

✅ After Repair

• 🔍 With the engine idling, inspect all connections for leaks using a bright light and shop rags.
• 🛞 Road test at low speed first; verify smooth steering and no whining noises.
• 📏 Recheck the reservoir level after the test drive and top off to the correct mark.
• 🧼 Clean any spilled fluid off belts and pulleys to prevent belt slip.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$520 (parts only)

You Save: $430-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
