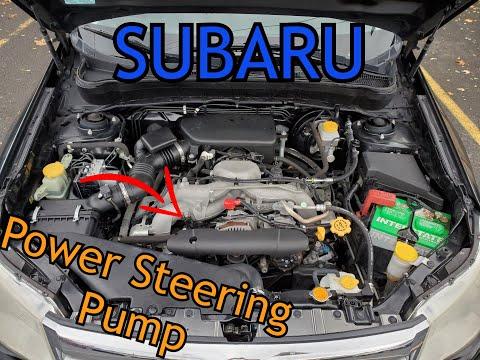

🔧 Forester - Power Steering Pump Replacement

On your Forester, the power steering pump creates hydraulic pressure so the steering stays light and smooth. Replacement is usually needed for leaks, whining noise, or a seized pulley bearing.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine—hot exhaust/turbo parts can burn you.
• 🛑 Support the vehicle with jack stands if you lift it; never rely on a jack.
• 🛑 Power steering fluid/ATF is flammable—keep away from sparks and wipe spills.
• 🛑 Keep fluid off the alternator and drive belt (it can cause belt slip).
• 🛑 Battery disconnect is recommended before working near the alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm combination wrench
• 12mm combination wrench
• 14mm combination wrench
• 17mm flare-nut wrench
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (5–80 Nm range)
• Serpentine belt tool or 14mm long wrench
• Pliers (hose clamp pliers)
• Flat-blade screwdriver
• Drain pan (at least 6-quart)
• Fluid transfer pump or funnel
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pressure line sealing washers - Qty: 2
• Power steering return hose clamp - Qty: 1
• Power steering fluid (ATF Dexron III/Mercon compatible) - Qty: 2 quarts
• Accessory drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and locate the power steering reservoir (cap usually says “Power Steering”).
• Disconnect the battery negative terminal using a 10mm socket.
• If you want easier bleeding, lift the front end and set it on jack stands (front wheels off the ground).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fluid and protect components

• Place a drain pan under the pump/hoses area.
• Use a shop rag and brake cleaner spray to clean the pump and hose fittings so dirt can’t enter the system.
• Remove the reservoir cap by hand.
• Clean first so you don’t contaminate the steering rack.

Step 2: Remove the accessory drive belt

• Locate the belt tension/adjust hardware at the power steering pump bracket.
• Use a 12mm socket and 14mm socket (as equipped) to loosen the pump pivot/lock bolts.
• Use a 12mm socket on the adjuster to back tension off until the belt slips off the pump pulley.
• If reusing the belt, mark its rotation direction with a flat-blade screwdriver tip or marker.

Step 3: Drain and disconnect the return (low-pressure) hose

• Use pliers (hose clamp pliers) to slide the return hose clamp back.
• Twist the hose gently by hand to break it loose, then pull it off the pump/reservoir nipple.
• Let fluid drain into the drain pan. Plug the hose end with a clean rag.
• The return hose is soft; don’t use a knife.

Step 4: Disconnect the pressure line (high-pressure fitting)

• Place rags under the fitting to catch fluid.
• If your line uses a flare fitting: use a 17mm flare-nut wrench to loosen the pressure line at the pump.
• If your line uses a banjo bolt: use a 17mm combination wrench (or 17mm socket if it fits) to remove the banjo bolt.
• Remove and discard the old sealing washers; you will install new ones.
• Torque to 34 Nm (25 ft-lbs) when reinstalling (flare fitting or banjo bolt at pump).
• A flare-nut wrench grips better than an open-end wrench.

Step 5: Unbolt and remove the power steering pump

• Remove the pump mounting bolts using a 12mm socket and/or 14mm socket (bolt heads vary by bracket position).
• Lift the pump out carefully, keeping the pulley from hitting the radiator fans.
• Torque to 25 Nm (18 ft-lbs) for pump mounting bolts during installation.

Step 6: Transfer the pulley (only if your new pump does not include one)

• Check your replacement pump: if it has no pulley installed, you must reuse your old pulley.
• Use a power steering pulley puller/installer set (specialty) to remove and install the pulley.
• Install the pulley until it aligns with the other belt pulleys (straight belt path).
• Do not hammer the pulley on.

Step 7: Install the new pump

• Position the pump on the bracket and start bolts by hand.
• Tighten mounting bolts using a 12mm socket/14mm socket.
• Torque to 25 Nm (18 ft-lbs) for pump mounting bolts.

Step 8: Reconnect the pressure and return lines

• Reconnect the pressure line using a 17mm flare-nut wrench (or 17mm socket for banjo bolt).
• Install new sealing washers if using a banjo bolt (one washer on each side of the banjo fitting).
• Torque to 34 Nm (25 ft-lbs) at the pump pressure fitting.
• Reinstall the return hose and position the clamp using pliers (hose clamp pliers).

Step 9: Reinstall and tension the belt

• Route the belt correctly on all pulleys.
• Use a 12mm socket on the adjuster to tension the belt.
• Snug the lock/pivot bolts using a 12mm socket and 14mm socket.
• Torque to 24 Nm (18 ft-lbs) for the pump lock/pivot bolts.
• If it squeals, it’s usually too loose.

Step 10: Fill and bleed the power steering system

• Fill the reservoir with ATF Dexron III/Mercon compatible using a funnel.
• With front wheels off the ground, engine OFF: slowly turn steering wheel lock-to-lock 10–15 times.
• Check fluid level and top off.
• Reconnect the battery negative terminal using a 10mm socket.
• Start engine and let it idle; do not hold steering at full lock.
• Turn lock-to-lock 5–8 more times, then recheck level and top off.
• Foamy fluid means air—keep bleeding.

---

✅ After Repair

• Inspect for leaks at the pressure fitting and return hose while the engine idles.
• Verify quiet operation (no whining) and smooth steering assist.
• Recheck fluid level after a 10–15 minute test drive, then again the next morning.
• If the belt squeals, recheck belt tension and pulley alignment.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹8,000-₹22,000 (parts only)

You Save: ₹10,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 2-4 hours.

---
