🔧 Sierra 1500 - Power Steering Pump Replacement

You’ll remove the belt-driven power steering pump, transfer any reusable parts (like the reservoir if your replacement doesn’t include one), install the new pump, then bleed air out of the system. A proper bleed is critical—air in the system can cause whining, foamy fluid, and hard steering.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting.
• ⚠️ Support the truck with jack stands if you raise the front wheels—never rely on a jack alone.
• ⚠️ Power steering fluid is slippery—clean spills immediately to prevent falls.
• ⚠️ Keep hands and tools clear of the fan and belt path.
• ⚠️ Battery disconnect is recommended if your hands will be near the fan/belt area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 6-quart)
• Funnel
• Fluid suction pump
• Shop rags
• Metric socket set (10mm-15mm)
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool with 15mm socket
• Metric combination wrench set (10mm-15mm)
• Metric flare-nut wrench set (16mm-18mm)
• Pliers
• Hose clamp pliers
• Torque wrench (10-80 ft-lbs range)
• Power steering pump pulley puller/installer set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pump pulley - Qty: 1 (only if damaged or replacement pump requires)
• Power steering pressure line O-ring seal - Qty: 1
• Power steering return hose - Qty: 1 (recommended if hose is soft/cracked)
• Power steering fluid (GM-approved) - Qty: 2 quarts

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Use a fluid suction pump to remove as much fluid as possible from the power steering reservoir into a drain pan.
• If you plan to “air bleed” with the front wheels off the ground, lift the front end with a floor jack and support with jack stands.
• If disconnecting the battery, use a 10mm socket to remove the negative battery cable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped) and gain access

• Remove any top cover/intake ducting that blocks access using your metric socket set (10mm-15mm) and pliers as needed.
• Place a drain pan under the pump area.

Step 2: Release the serpentine belt from the power steering pump pulley

• Use a serpentine belt tool with 15mm socket to rotate the belt tensioner and slip the belt off the power steering pump pulley.
• Tip: Take a quick photo of belt routing.

Step 3: Disconnect the return hose at the reservoir/pump

• Use hose clamp pliers to slide the clamp back on the return hose.
• Twist and pull the return hose off (use pliers carefully if it’s stuck).
• Let fluid drain into the drain pan, then cap/cover the hose with a rag to reduce dripping.

Step 4: Disconnect the high-pressure power steering line

• Use a metric flare-nut wrench set (16mm-18mm) to loosen the pressure line fitting at the pump.
• Remove the line from the pump and discard the old pressure line O-ring seal if it stays on the fitting.
• Tip: Flare-nut wrenches reduce rounding.

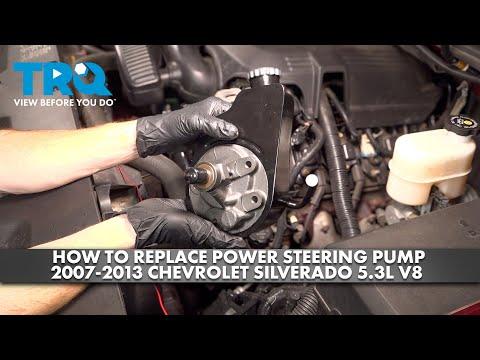

Step 5: Remove the power steering pump from its bracket

• Remove the pump mounting bolts using a metric socket set (10mm-15mm) with a 3/8" drive ratchet and extensions.
• Lift the pump out of the engine bay.
• During reassembly, pump mounting bolts: Torque to 25 Nm (18 ft-lbs).

Step 6: Remove the pulley from the old pump (if your new pump does not include a pulley)

• Use a power steering pump pulley puller/installer set (specialty) to remove the pulley from the old pump.
• A pulley puller/installer is a tool that presses the pulley on/off without damaging the pump shaft.
• Inspect the pulley for cracks or wobble; replace if damaged.

Step 7: Transfer the reservoir (if required)

• If your replacement pump does not include a reservoir, transfer it from the old pump using a metric socket set (10mm-15mm).
• Reservoir fasteners (if equipped): Torque to 10 Nm (89 in-lbs).

Step 8: Install the pulley onto the new pump (if required)

• Use the power steering pump pulley puller/installer set (specialty) to press the pulley onto the new pump shaft.
• Press until the pulley is fully seated and aligned with the other belt pulleys (straight belt path).

Step 9: Install the new pump onto the bracket

• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten with a metric socket set (10mm-15mm) and 3/8" drive ratchet.
• Final tighten with a torque wrench (10-80 ft-lbs range): Torque to 25 Nm (18 ft-lbs).

Step 10: Reconnect the high-pressure line with a new O-ring

• Install a new power steering pressure line O-ring seal on the pressure line fitting.
• Thread the fitting in by hand first, then tighten using a metric flare-nut wrench set (16mm-18mm).
• Pressure line fitting: Torque to 30 Nm (22 ft-lbs).

Step 11: Reconnect the return hose

• Push the return hose fully onto the pump/reservoir nipple.
• Use hose clamp pliers to reinstall the clamp in the original position.

Step 12: Reinstall the serpentine belt

• Route the belt correctly, then use the serpentine belt tool with 15mm socket to rotate the tensioner and slip the belt back onto the power steering pulley.
• Double-check the belt is seated in every pulley groove.

Step 13: Fill and bleed the power steering system

• Fill the reservoir with power steering fluid (GM-approved) using a funnel.
• Engine OFF bleed: With front wheels off the ground (recommended), slowly turn the steering wheel from lock-to-lock 10–15 times. Keep the reservoir from running low.
• Engine ON bleed: Start the engine and let it idle. Slowly turn lock-to-lock 5–10 times. Do not hold against the stops.
• Shut off, recheck fluid, and top off to the correct level.
• Tip: Foamy fluid means more bleeding needed.

---

✅ After Repair

• Check carefully for leaks at the pressure fitting and return hose connection with the engine idling.
• Verify steering is smooth and quiet on a short test drive.
• Recheck the reservoir level after the drive and top off if needed.
• Dispose of old fluid properly.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor, varies by parts quality)

DIY Cost: ₹8,000-₹25,000 (parts only)

You Save: ₹10,000-₹20,000 by doing it yourself!

Shops typically charge 2-4 hours for this job.

---
