🔧 Suburban - Power Steering Pump Replacement

You’ll remove the belt-driven power steering pump, transfer the pulley to the new pump, then refill and bleed the system so it doesn’t whine or foam. On your Suburban, doing the pulley transfer correctly is the make-or-break part of the job.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a cool engine; keep hands clear of the fan and belt drive.
• 🧤 Wear safety glasses and gloves; power steering fluid can irritate skin/eyes.
• 🧯 Power steering fluid is flammable—keep it off hot exhaust parts.
• 🔋 Battery disconnect is recommended if your hands/tools will be near the fan/belt area for extended time.
• 🪝 Support the vehicle securely if you lift the front wheels for bleeding—use jack stands, not just a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Shop rags
• Serpentine belt tool 3/8" drive
• 3/8" drive ratchet
• Socket set (10mm, 13mm, 15mm)
• Torque wrench (10–80 ft-lbs range)
• Line wrench set (16mm, 18mm)
• Hose clamp pliers
• Trim clip remover
• Power steering pulley puller/installer kit (specialty)
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pump reservoir O-ring/seal kit - Qty: 1
• Power steering pressure line O-ring/seal - Qty: 1
• Power steering fluid (GM-approved) - Qty: 2 quarts
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧼 Clean around the pump/hoses so dirt doesn’t enter the system.
• 🔋 Disconnect the negative battery cable using a 10mm socket (recommended).
• 🛞 For easiest bleeding later, plan to lift the front wheels off the ground with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve belt tension and remove the serpentine belt

• Use a serpentine belt tool 3/8" drive to rotate the belt tensioner and slip the belt off the power steering pump pulley.
• Snap a quick photo of belt routing.

Step 2: Make room to access the pump

• Remove the intake duct/covering as needed using a 10mm socket and trim clip remover.
• Position a drain pan under the pump area.

Step 3: Drain as much power steering fluid as possible

• Remove the reservoir cap and use a funnel (or siphon if you have one) to remove fluid into the drain pan.
• Wipe spills using shop rags.

Step 4: Disconnect the return hose (low-pressure) from the pump/reservoir

• Use hose clamp pliers to move the clamp back on the return hose.
• Twist and pull the hose off the nipple, aiming it into the drain pan.
• Cap/plug the hose with a rag to reduce dripping.

Step 5: Disconnect the pressure line (high-pressure) from the pump

• Use a line wrench (16mm or 18mm) to loosen the pressure fitting at the pump.
• A line wrench is a “boxed” wrench with a slot; it grips fittings better and helps prevent rounding.
• Remove the line and let it drain into the drain pan.
• Remove and discard the old pressure line seal/O-ring; install the new one during reassembly.

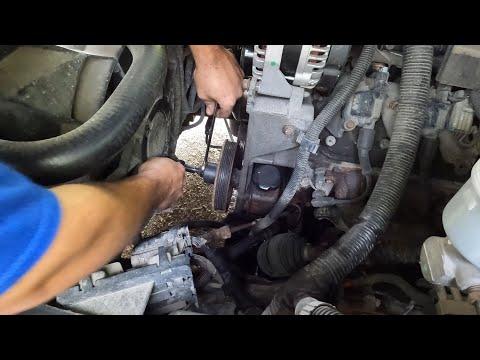

Step 6: Remove the power steering pump from the bracket

• Remove the pump mounting bolts using a 13mm socket and 3/8" drive ratchet.
• Lift the pump out carefully without forcing the lines or wiring nearby.

Step 7: Transfer the pulley to the new pump

• Use a power steering pulley puller/installer kit (specialty) to remove the pulley from the old pump.
• This tool threads onto the pump shaft and presses/pulls the pulley off without bending it.
• Use the same kit to install the pulley onto the new pump.
• Install the pulley until it sits flush/aligned with the other belt pulleys; the belt must run straight.

Step 8: Install the new pump

• Set the pump into position and start all mounting bolts by hand.
• Tighten using a 13mm socket, then Torque to 25 Nm (18 ft-lbs) with a torque wrench.

Step 9: Reconnect the pressure line and return hose

• Install the new pressure line seal/O-ring, then thread the pressure fitting in by hand to avoid cross-threading.
• Tighten with a line wrench (16mm or 18mm) and Torque to 27 Nm (20 ft-lbs).
• Reinstall the return hose and position the clamp using hose clamp pliers.

Step 10: Reinstall the serpentine belt

• Route the belt correctly and use the serpentine belt tool 3/8" drive to rotate the tensioner.
• Visually check the belt is seated in every pulley groove.

Step 11: Refill fluid and bleed air from the system

• Fill the reservoir with GM-approved power steering fluid using a funnel to the “COLD” mark.
• Lift the front wheels off the ground using a floor jack and support with jack stands.
• With engine OFF, turn the steering wheel slowly lock-to-lock 15–20 times to push air out.
• Top off fluid as needed (don’t let it run dry).
• Start the engine and let it idle; continue slow lock-to-lock turns 5–10 times.
• If fluid foams or looks milky, shut off and wait 10–15 minutes, then repeat.

---

✅ After Repair

• 🔎 With the engine idling, inspect for leaks at the pressure fitting and return hose.
• 🧭 Verify steering is smooth and quiet at idle and during a short test drive.
• 🧪 Recheck fluid level after the test drive and again the next morning (cold).
• 🧼 Clean any spilled fluid off belts/pulleys with rags to prevent squeal.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
