🔧 Sierra 1500 - Power Steering Pump Replacement

Replacing the power steering pump fixes whining, hard steering, leaks at the pump, or metal contamination in the fluid. On your Sierra 1500, the job mainly involves removing the serpentine belt, pulling the pump pulley, swapping the pump, then bleeding air out of the system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the belt/pulleys.
• ⚠️ Support the truck with jack stands if you raise it—never rely on a jack.
• ⚠️ Power steering fluid is slippery—clean spills right away.
• ⚠️ Keep fingers/tools clear of the belt path during checks.
• ⚠️ If your truck has a mechanical fan, avoid leaning into the fan area.
• ⚠️ Battery disconnect: recommended—remove the negative cable to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Serpentine belt tool 15mm
• Socket set 8mm–18mm
• Ratchet 3/8"
• Breaker bar 3/8"
• Torque wrench 10–100 ft-lbs
• Flare-nut wrench set 13mm–19mm
• Pliers (hose clamp)
• Trim clip tool
• Power steering pulley puller/installer kit (specialty)
• Funnel
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pump pulley - Qty: 1
• Power steering pressure line O-ring/seal kit - Qty: 1
• Power steering fluid (GM-approved) - Qty: 2 quarts
• Return hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Turn the steering wheel so the front wheels point straight ahead.
• Use an 8mm socket to disconnect the negative battery cable and set it aside.
• Place a drain pan under the pump/hoses area.
• Pro tip: Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine covers/intake ducting if it blocks access

• Use an 8mm socket and trim clip tool to remove any cover/duct fasteners in the way.
• Move parts aside carefully so you can reach the pump pulley and hoses.

Step 2: Relieve serpentine belt tension and remove the belt from the pump pulley

• Use a serpentine belt tool 15mm on the belt tensioner and rotate to relieve tension.
• Slip the belt off the power steering pump pulley and slowly release the tensioner.

Step 3: Drain fluid from the reservoir/return hose

• Remove the reservoir cap by hand.
• Use pliers (hose clamp) to slide the return-hose clamp back.
• Pull the return hose off the pump/reservoir nipple and aim it into the drain pan.
• Plug the hose with a clean rag to slow dripping.

Step 4: Disconnect the pressure line from the pump

• Use a flare-nut wrench set 13mm–19mm to loosen the pressure line fitting (a flare-nut wrench grips more sides of the nut to prevent rounding).
• Keep the drain pan under the fitting—more fluid will drain.
• Remove and discard the old seal/O-ring from the fitting area (don’t reuse it).

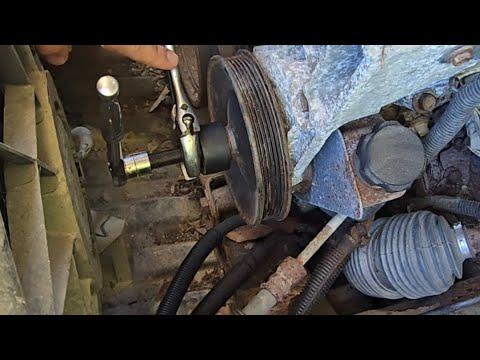

Step 5: Remove the pump pulley

• Install the power steering pulley puller/installer kit (specialty) onto the pulley.
• Use the puller per the kit instructions to press the pulley off the pump shaft.
• Pro tip: Don’t pry on the pulley.

Step 6: Unbolt and remove the power steering pump

• Use a socket set 8mm–18mm and ratchet 3/8" to remove the pump mounting bolts.
• Lift the pump out of the bracket and remove it from the engine bay.

Step 7: Transfer reservoir (only if your replacement pump doesn’t include one)

• If your pump uses a snap-on reservoir, use pliers (hose clamp) to remove hoses, then carefully release reservoir retainers.
• Install the reservoir onto the new pump with its seals seated fully.
• Pro tip: Replace brittle reservoir seals.

Step 8: Install the new pump and torque the mounting bolts

• Position the new pump in the bracket and start bolts by hand.
• Use a torque wrench 10–100 ft-lbs to tighten pump mounting bolts: Torque to 25 N·m (18 ft-lbs).

Step 9: Install the pulley onto the new pump

• Use the power steering pulley puller/installer kit (specialty) in “installer” mode to press the pulley onto the shaft.
• Press the pulley until it aligns with the other belt pulleys (same plane).

Step 10: Reconnect the pressure line with a new seal

• Install the new O-ring/seal from the power steering pressure line O-ring/seal kit.
• Thread the fitting in by hand first to avoid cross-threading.
• Use a flare-nut wrench set 13mm–19mm and then a torque wrench 10–100 ft-lbs: Torque to 27 N·m (20 ft-lbs).

Step 11: Reconnect the return hose

• Push the return hose fully onto the nipple.
• Use pliers (hose clamp) to reposition the clamp in its original spot.

Step 12: Reinstall the serpentine belt

• Route the belt using your photo reference.
• Use the serpentine belt tool 15mm to move the tensioner and slip the belt onto the pump pulley.
• Double-check the belt is seated in every pulley groove.

Step 13: Refill and bleed the power steering system (no-scan-tool bleed)

• Fill the reservoir using a funnel with power steering fluid (GM-approved) to the COLD line.
• With the front tires off the ground (optional but easier), use a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum) to support the front.
• Engine OFF: slowly turn the steering wheel from lock-to-lock 15–20 times.
• Check fluid level and top off as needed.
• Reconnect battery using an 8mm socket.
• Start the engine and let it idle. Do not hold the wheel hard against the stops.
• Turn lock-to-lock a few more times, watching for foaming. Top off fluid.

---

✅ After Repair

• With the engine idling, check for leaks at the pressure fitting and return hose using a flashlight and shop rags.
• Verify steering is smooth and quiet on a short test drive.
• Recheck fluid level after the drive and again the next morning (cold).
• If fluid stays foamy or the pump whines, re-bleed (air is still trapped).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
