🔧 Santa Fe - Power Steering Pump Replacement

On your Santa Fe, the power steering pump (belt-driven) creates hydraulic pressure so the steering feels light and smooth. Replacing it typically involves removing the drive belt, disconnecting the pressure/return lines, swapping the pump, then refilling and bleeding the system to remove air.

Assumption: Your Santa Fe has a hydraulic power steering pump with a reservoir and hoses. If your Santa Fe has electric power steering (no pump/reservoir), this repair doesn’t apply.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the vehicle with jack stands—never rely on a floor jack alone.
• ⚠️ Power steering fluid is slippery and flammable—wipe spills immediately and keep away from hot exhaust parts.
• ⚠️ Don’t start the engine with the belt removed, and keep hands clear of rotating parts during checks.
• ⚠️ Avoid turning the steering wheel hard against the stop for more than 2 seconds (it spikes pressure).
• Disconnecting the battery is recommended if you’ll be working near the cooling fan or main electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 2-gallon)
• Shop rags
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Metric combination wrench set 10mm-19mm
• 14mm flare-nut wrench
• Torque wrench (10-100 Nm range)
• Serpentine belt tool or long 3/8" breaker bar
• Hose clamp pliers
• Trim clip tool
• Flat-blade screwdriver
• Funnel
• Fluid suction pump (hand pump) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering fluid (Hyundai PSF-4 or equivalent) - Qty: 2 quarts
• Pressure line sealing washers - Qty: 2
• Power steering return hose clamp - Qty: 1
• Serpentine drive belt - Qty: 1 Replace if cracked or glazed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks at the rear tires.
• Let the engine cool fully; you’ll be working near the radiator and exhaust heat.
• Use a fluid suction pump (a hand-operated pump that removes fluid from a reservoir) to remove as much old fluid as possible from the power steering reservoir into a drain pan.
• If you plan to work near the radiator fan, disconnect the negative battery cable using a 10mm socket.
• If access is tight, raise the front of the Santa Fe using a floor jack and support it on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Place a drain pan underneath the front of the engine area.
• Remove the under-cover clips/screws using a trim clip tool and 10mm socket.

Step 2: Remove the serpentine belt

• Locate the belt routing sticker in the engine bay, or take a clear photo for reference.
• Use a serpentine belt tool or long 3/8" breaker bar to rotate the belt tensioner and release belt tension. (The tensioner is a spring-loaded arm that keeps the belt tight.)
• Slip the belt off the power steering pump pulley first, then remove the belt from the rest of the pulleys.

Step 3: Disconnect the return hose at the reservoir/pump

• Use hose clamp pliers to slide the clamp back on the return hose.
• Twist and pull the return hose off carefully; use a flat-blade screwdriver gently if it’s stuck.
• Let fluid drain into the drain pan and plug the hose end with a clean rag to limit dripping.

Step 4: Disconnect the high-pressure line from the pump

• Use a 14mm flare-nut wrench to loosen the pressure fitting. (A flare-nut wrench wraps more of the nut to reduce rounding.)
• Finish removing the fitting by hand and keep the line supported to avoid bending.
• Remove and discard the old sealing washers if your connection uses them (common on banjo-style fittings).

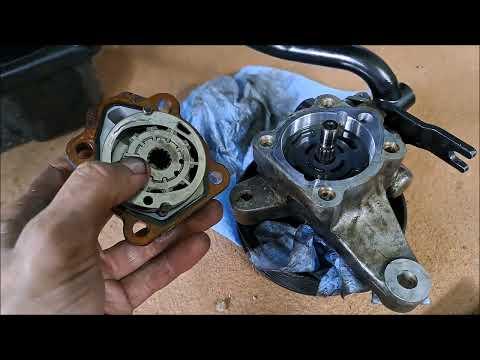

Step 5: Unbolt and remove the power steering pump

• Remove any nearby brackets or intake ducting that blocks access using a 10mm socket and 12mm socket.
• Remove the pump mounting bolts using a 14mm socket and 3/8" ratchet.
• Lift the pump out carefully, keeping it upright to avoid spilling fluid.

Step 6: Transfer the pulley (only if your new pump doesn’t include one)

• If the pulley must be moved, use a fluid suction pump to remove any remaining fluid from the old pump first to reduce mess.
• Remove the pulley fasteners (if applicable) using the correct metric socket or metric wrench.
• Install the pulley onto the new pump and tighten fasteners evenly.
• Torque to 10 Nm (7 ft-lbs) for small pulley bolts (if equipped).
• If it needs a press-fit tool, don’t hammer it.

Step 7: Install the new pump

• Position the new pump and hand-start all mounting bolts using a 14mm socket to prevent cross-threading.
• Tighten mounting bolts evenly using a torque wrench.
• Torque to 45 Nm (33 ft-lbs) for pump mounting bolts.

Step 8: Reconnect the high-pressure line

• Start the fitting by hand to avoid stripping threads.
• Tighten using a 14mm flare-nut wrench, then finish with a torque wrench if you can fit it.
• Torque to 40 Nm (30 ft-lbs) for the pressure line fitting (or banjo bolt if equipped) and use new sealing washers.

Step 9: Reconnect the return hose

• Slide the hose fully onto the nipple.
• Reposition the clamp using hose clamp pliers.

Step 10: Reinstall the serpentine belt

• Route the belt per your photo/sticker, leaving an easy pulley for last.
• Rotate the tensioner with the serpentine belt tool or long 3/8" breaker bar and slip the belt onto the last pulley.
• Double-check the belt is centered in every pulley groove using a flashlight and your eyes.

Step 11: Reinstall the splash shield

• Reinstall the under-cover using the trim clip tool and 10mm socket.

Step 12: Refill and bleed the power steering system

• Fill the reservoir to the correct level using a funnel and Hyundai PSF-4.
• Engine OFF bleed: With the front wheels off the ground (on jack stands), slowly turn the steering wheel lock-to-lock 10-15 times. (Lock-to-lock means full left to full right.)
• Check fluid level, top off, and watch for bubbles/foam.
• Engine ON bleed: Start the engine and let it idle. Slowly turn the wheel lock-to-lock 5-10 times.
• Shut the engine off, recheck the fluid level, and top off to the “HOT” mark once warmed up.
• Foamy fluid means air—keep bleeding.

---

✅ After Repair

• With the engine idling, inspect the pump, pressure fitting, and return hose for leaks using a flashlight.
• Listen for whining noises; a brief noise can be normal until all air is out, but it should fade quickly.
• Road-test at low speed first and confirm the steering is smooth and consistent.
• Recheck fluid level after the test drive and inspect again for seepage.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
