🔧 E-150 - Power Steering Pump Replacement

Replacing the power steering pump fixes whining, leaks, or heavy steering caused by a worn pump or bad shaft seal. On your E-150, the pump is belt-driven and the pulley must be transferred to the new pump using a puller/installer tool.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the van with jack stands; never rely on a jack.
• ⚠️ Keep hands/clothes clear of the serpentine belt and fan areas.
• ⚠️ Power steering fluid can be hot; work on a cool engine.
• ⚠️ Clean around hose fittings before opening them to avoid contamination.
• 🔋 Battery disconnect is recommended to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Socket set 8mm–18mm
• Ratchet 3/8" drive
• Extension set 3"–10"
• Serpentine belt tool 1/2" drive
• Wrench set 10mm–19mm
• Line wrench set 16mm–19mm
• Torque wrench 10–100 ft-lbs
• Power steering pulley puller/installer kit (specialty)
• Hose clamp pliers
• Drain pan 2-gallon
• Fluid transfer syringe
• Shop rags
• Brake cleaner spray
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Power steering pump - Qty: 1
• Power steering pressure hose O-ring/seal (if equipped/serviceable) - Qty: 1
• Power steering return hose clamp - Qty: 1
• Power steering fluid (MERCON ATF) - Qty: 2 quarts

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and let the engine cool fully.
• Disconnect the negative battery cable using a 10mm wrench.
• Use a fluid transfer syringe (big “turkey baster”) to remove as much old fluid as possible from the reservoir.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (optional, but helps bleeding)

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum) at the frame.
• Front wheels off ground = easier bleed.

Step 2: Remove the serpentine belt from the power steering pump

• Relieve belt tension using a serpentine belt tool 1/2" drive on the tensioner.
• Slip the belt off the power steering pump pulley and slowly release the tensioner.
• If the belt routing isn’t on a sticker, take a photo before removal.

Step 3: Disconnect and drain the return hose

• Position a drain pan 2-gallon under the pump area.
• Use hose clamp pliers to move the clamp back on the return hose.
• Twist and pull the return hose off the reservoir/pump nipple and drain into the pan.
• Plug the hose end with a shop rag to reduce mess.

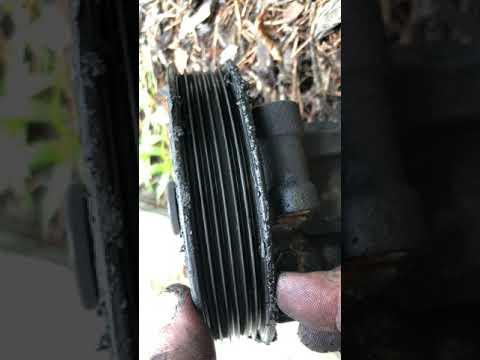

Step 4: Remove the power steering pump pulley

• Install the power steering pulley puller/installer kit (specialty) on the pulley hub and remove the pulley from the pump shaft.
• This tool “pulls” the pulley straight off without bending it. Don’t pry the pulley.

Step 5: Disconnect the high-pressure line

• Clean around the fitting using brake cleaner spray and shop rags.
• Hold the pump/adapter steady with an open-end wrench set 10mm–19mm if needed.
• Loosen the pressure line flare nut using a line wrench set 16mm–19mm (a line wrench grips more sides to prevent rounding).
• Cap/cover the open line end with a clean rag to keep dirt out.

Step 6: Remove the pump from its bracket/mount

• Remove pump mounting bolts using a socket set 8mm–18mm, ratchet 3/8" drive, and extension set 3"–10".
• Remove the pump from the engine bay.

Step 7: Prepare the new pump

• Compare the new pump to the old one: port locations, mounting points, and reservoir style.
• Replace the pressure fitting seal/O-ring (if your hose/fitting uses one).
• Lightly lubricate the new seal with fresh MERCON ATF.

Step 8: Install the new pump onto the bracket/mount

• Position the new pump and start all mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a torque wrench 10–100 ft-lbs: Torque to 34 Nm (25 ft-lbs).

Step 9: Reconnect the high-pressure line

• Start the flare nut by hand several turns (it should turn easily at first).
• Tighten using a line wrench set 16mm–19mm.
• Final tighten with a torque wrench 10–100 ft-lbs if you can access it: Torque to 27 Nm (20 ft-lbs).
• Cross-threading here is an expensive mistake.

Step 10: Press the pulley onto the new pump

• Use the power steering pulley puller/installer kit (specialty) in “install” mode to press the pulley onto the shaft.
• Press until the pulley sits flush to the same depth as it was on the old pump.
• Visually align the pulley grooves with the other belt-driven pulleys.

Step 11: Reconnect the return hose

• Slide the return hose onto the nipple fully.
• Install a good clamp using hose clamp pliers.
• Wipe everything clean with shop rags so leaks are easy to spot.

Step 12: Reinstall the serpentine belt

• Route the belt correctly, then use the serpentine belt tool 1/2" drive to move the tensioner.
• Slip the belt over the power steering pulley and release the tensioner slowly.
• Double-check the belt is seated in every pulley groove.

Step 13: Fill and bleed the power steering system

• Fill the reservoir with power steering fluid (MERCON ATF) to the “COLD” mark.
• With the engine OFF, turn the steering wheel from lock-to-lock slowly 15–20 times to push air out.
• Top off fluid as the level drops (don’t let it run dry).
• Start the engine and let it idle; do not rev it.
• Turn lock-to-lock slowly 5–10 more times and re-check fluid.
• If the fluid looks foamy, shut it off and wait 10 minutes, then repeat.
• If your E-150 has Hydro-Boost brakes: after the steering feels normal, press the brake pedal a few times and re-check fluid level again.

---

✅ After Repair

• With the engine idling, inspect the pressure fitting and return hose for seepage.
• Confirm steering is smooth and quiet during a short test drive.
• Recheck fluid level after the test drive and top off to the correct mark.
• Clean any spilled fluid off belts/pulleys using brake cleaner spray and shop rags.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$320 (parts only)

You Save: $330-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
