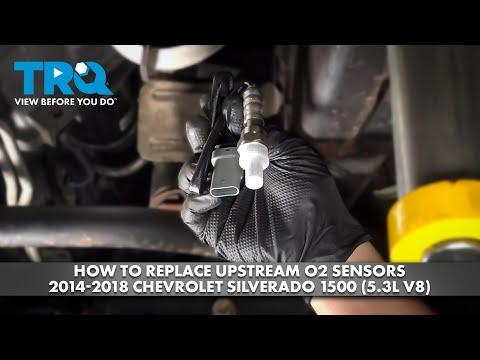

🔧 Oxygen Sensor - Replacement

This job usually means replacing one failed oxygen sensor in the exhaust stream. On your Silverado, the sensor location and connector routing matter a lot, so the steps below cover the common front or rear sensor replacement process on the 5.3L V8.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before touching any sensor or wiring.
• Use jack stands on solid ground if you need access from underneath.
• Disconnect the negative battery cable if the connector routing is tight or you may contact wiring while working.
• Do not pull on the sensor wire to remove it; always unplug the connector first.
• Keep the new sensor tip clean. Do not touch the sensing element.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8 in. or 22mm
• 3/8 in. drive ratchet
• 3/8 in. drive extensions
• Breaker bar
• Penetrating oil
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Trim clip tool
• Torque wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Exhaust sensor anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• If you are replacing a sensor on the exhaust manifold, make sure the engine is cold.
• If the sensor connector is clipped to the frame or harness bracket, note the routing before removal.
• If the check engine light is on, a scan tool may be needed to clear codes after repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the truck safely

• Use the floor jack to raise the truck if the sensor is accessible from underneath.
• Support it with jack stands before going under it.
• Never work under a jack alone.

Step 2: Locate the oxygen sensor

• Find the failed sensor on the exhaust pipe, exhaust manifold, or near the catalytic converter.
• Follow the sensor wire to its connector so you can see how it is clipped in place.

Step 3: Unplug the sensor connector

• Use your fingers or a trim clip tool if needed to release the connector lock.
• Separate the connector carefully and free the harness from any clips.

Step 4: Loosen the old sensor

• Spray penetrating oil on the sensor threads if it is rusty.
• Use the oxygen sensor socket 7/8 in. or 22mm, 3/8 in. drive ratchet, and breaker bar if needed to break it loose.
• Turn counterclockwise to remove the sensor.
• Work it slowly if the threads are rusty.

Step 5: Compare the old and new sensor

• Make sure the connector style, wire length, and sensor tip match.
• Do not touch the sensor tip with greasy hands.

Step 6: Install the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 7/8 in. or 22mm and torque wrench to tighten it.
• Torque to 40 Nm (30 ft-lbs).
• If the new sensor does not already have thread compound, apply a very small amount of sensor-safe anti-seize only to the threads, not the tip.

Step 7: Reconnect the harness

• Route the wire exactly like the original and snap it back into every clip.
• Reconnect the electrical plug until it clicks.
• Keep the wire away from the exhaust.

Step 8: Lower the truck and verify operation

• Remove the jack stands and lower the truck.
• Start the engine and let it idle.
• Check for exhaust leaks, loose wiring, or warning lights.

---

✅ After Repair

• Use a scan tool to clear the fault code if the check engine light stays on.
• Drive the truck through a few warm-up cycles so the PCM can verify the new sensor.
• If the light returns, recheck the connector and confirm you replaced the correct bank and sensor position.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
