🔧 Oxygen Sensor - Replacement

On your Camry Hybrid, the exhaust uses different sensors depending on location: the upstream sensor is an air-fuel ratio sensor and the downstream sensor is an oxygen sensor. Replacement is usually straightforward, but rust, heat, and tight access can make the job slow. Work on a cool exhaust only.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before starting. Hot sensors and pipes can burn you.
• Disconnect the 12V battery negative cable if you will be unplugging harness connectors near tight metal edges.
• Do not pull on the sensor wire. Always disconnect the electrical connector first.
• Use care around the hybrid system components. You are working on the exhaust side only, not the high-voltage system.
• If the sensor is seized, stop and use penetrating oil. Forcing it can damage the exhaust bung.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 22mm
• 3/8-inch ratchet
• 3/8-inch breaker bar
• Penetrating oil
• Torque wrench 3/8-inch drive
• Trim clip tool
• Jack stands
• Floor jack (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air-fuel ratio sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Exhaust sensor thread anti-seize - Qty: 1
• Sensor harness clip(s) - Qty: 1

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Chock the rear wheels before lifting the front if needed.
• Let the exhaust cool fully.
• If replacing the upstream sensor, plan for access from above and below depending on the exact sensor location.
• If the connector is heat-brittle, inspect it before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

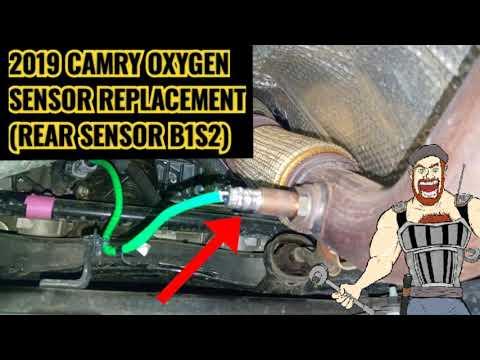

Step 1: Locate the sensor

• Find the sensor you are replacing on the exhaust manifold or exhaust pipe.
• Trace the wire to its connector before loosening anything.
• Take a photo first.

Step 2: Unplug the connector

• Use a trim clip tool to release any harness retainers.
• Disconnect the electrical connector by pressing the lock tab and pulling the connector apart.
• Do not twist or yank the wire.

Step 3: Loosen the old sensor

• Spray penetrating oil on the sensor threads and let it soak if the sensor is rusty.
• Use a 22mm oxygen sensor socket with a 3/8-inch breaker bar to break the sensor loose.
• Once loose, remove it by hand.
• If it binds hard, stop and reapply penetrating oil.

Step 4: Prepare the new sensor

• Compare the new sensor to the old one to make sure the connector and wire length match.
• If the new sensor does not come with pre-applied compound, apply a tiny amount of exhaust sensor thread anti-seize to the threads only.
• Keep compound off the sensing tip and connector.

Step 5: Install the new sensor

• Thread the sensor in by hand first to avoid cross-threading.
• Use the 22mm oxygen sensor socket to snug it down.
• Torque to 39 Nm (29 ft-lbs).
• Hand-starting saves threads.

Step 6: Reconnect and secure the harness

• Reconnect the electrical connector until it clicks.
• Reinstall any harness clips with the trim clip tool.
• Make sure the wire is routed away from the exhaust and moving parts.

Step 7: Lower the vehicle if raised

• Use the floor jack and jack stands to safely lower the Camry.
• Remove the wheel chocks only after the car is fully on the ground.

---

✅ After Repair

• Start the engine and check for exhaust leaks around the sensor bung.
• Verify the check engine light is off after a short drive.
• If the light stays on, scan and clear codes, then recheck live data.
• Make sure the harness is not touching the exhaust after a test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$600 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $170-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
