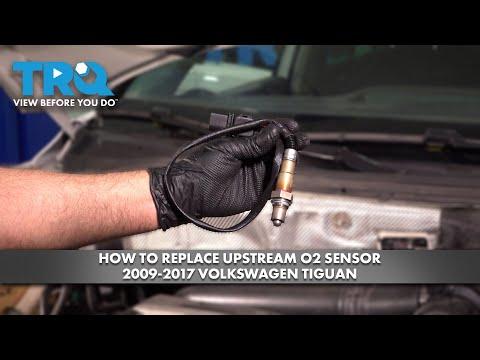

🔧 Oxygen Sensor - Replacement

This job is usually the same basic process for the upstream or downstream oxygen sensor on your Tiguan, but the exact sensor location and access can change. The sensor may be tight from heat and rust, so plan on using a penetrating lubricant and the correct sensor socket.

Assumption: This guide covers a typical oxygen sensor replacement on the exhaust system; if your sensor location is different, the access steps may vary.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before starting. Oxygen sensors sit in very hot exhaust parts.
• Disconnect the negative battery cable if the sensor wiring runs close to the starter or exposed power feeds.
• Use jack stands if you raise the vehicle. Never work under a vehicle supported only by a jack.
• Do not twist the sensor harness when loosening the sensor.
• Keep the connector and threads clean. Dirt can damage the new sensor or the exhaust bung.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8 in. (specialty)
• 3/8-inch ratchet
• 3/8-inch breaker bar
• 10mm socket
• Flat-blade trim tool
• Penetrating lubricant
• Torque wrench
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor - Qty: 1
• Anti-seize compound - Qty: 1
• Exhaust sensor seal washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the exhaust cool fully.
• If needed for access, raise the Tiguan safely and support it with jack stands.
• Disconnect the negative battery cable if the sensor connector is in a tight or exposed area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the oxygen sensor

• Find the sensor on the exhaust pipe or catalytic converter area.
• Follow the sensor wire to the electrical connector.
• Take a quick photo first.

Step 2: Disconnect the sensor connector

• Use the flat-blade trim tool to release any wire clips or retainers.
• Unplug the connector by hand once the lock tab is released.
• Do not pull on the wire harness.

Step 3: Loosen the old sensor

• Spray penetrating lubricant on the sensor threads and let it soak for a few minutes.
• Use the oxygen sensor socket 7/8 in. (specialty) with a 3/8-inch ratchet to loosen the sensor.
• If it is very tight, use the 3/8-inch breaker bar for more leverage.
• Remove the sensor by hand once it breaks free.

Step 4: Prepare the new sensor

• Compare the new sensor to the old one to make sure the connector and wire length match.
• If the new sensor threads are not pre-coated, apply a small amount of anti-seize compound to the threads only.
• Keep anti-seize off the sensing tip.

Step 5: Install the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 7/8 in. (specialty) to tighten it.
• Torque to 35 Nm (26 ft-lbs).
• Route the wire exactly like the original and secure it with the clips.

Step 6: Reconnect and secure the harness

• Plug the connector back in until it clicks.
• Use the flat-blade trim tool if needed to reinstall the harness retainer.
• Make sure the wire is clear of the exhaust and moving parts.

---

✅ After Repair

• Start the engine and check for exhaust leaks.
• Verify the engine light stays off after a short drive cycle.
• If the check engine light remains on, scan for stored codes and clear them if the repair is confirmed.
• Make sure the sensor wire does not touch the exhaust.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
