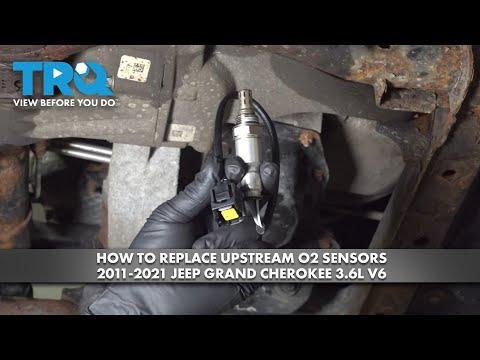

🔧 Oxygen Sensor - Replacement

This covers replacing one oxygen sensor on your Grand Cherokee 3.6L. The sensor threads into the exhaust and sends fuel mixture feedback to the engine computer, so a bad one can cause rough running, poor fuel economy, or check engine lights.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool fully before starting. Hot exhaust parts can cause serious burns.
• Use jack stands on a flat surface. Never work under a vehicle supported only by a jack.
• Disconnect the negative battery cable before unplugging the sensor connector if you want to avoid setting additional codes.
• Keep wiring away from the exhaust. A new sensor can fail fast if the harness touches hot pipes.
• If the sensor is seized, use penetrating oil and let it soak. Do not force it with a small wrench.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 7/8 in. (22mm) or 6-point crowfoot wrench
• 3/8-inch ratchet
• 3/8-inch extension
• Breaker bar
• Penetrating oil
• Torque wrench
• Jack stands
• Floor jack (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Trim clip tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the exhaust cool completely.
• If replacing an upstream sensor, plan for a check engine light to clear only after a proper drive cycle or scan tool clear.
• If your Grand Cherokee has an underbody shield in the way, remove it before reaching the sensor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle

• Use the floor jack to lift the front or rear of the vehicle, depending on which sensor you are replacing.
• Support it with jack stands before going underneath.
• Use wheel chocks on the opposite axle.

Step 2: Locate the oxygen sensor

• Find the sensor threaded into the exhaust pipe or catalytic converter area.
• Follow the sensor wire to its connector and note the routing before unplugging it.
• Take a quick photo first.

Step 3: Disconnect the sensor connector

• Use the trim clip tool to release any harness clips holding the wire to the body or heat shield.
• Press the lock tab and unplug the sensor connector by hand.
• Do not pull on the wire itself.

Step 4: Remove the old sensor

• Spray the sensor threads with penetrating oil and wait a few minutes if it is rusted.
• Use the oxygen sensor socket 7/8 in. (22mm) with a 3/8-inch ratchet or breaker bar to loosen it.
• Turn counterclockwise to remove the sensor from the exhaust.
• If the sensor is tight, work it slowly to avoid damaging the exhaust bung.

Step 5: Prepare the new sensor

• Compare the new sensor to the old one for connector shape and wire length.
• If the replacement sensor does not come with anti-seize, do not add any unless the sensor maker says it is allowed.
• Keep the tip clean.

Step 6: Install the new sensor

• Thread the new sensor in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 7/8 in. (22mm) and torque wrench to tighten it to Torque to 40 Nm (30 ft-lbs).
• Reconnect the electrical connector until it clicks.
• Reinstall all harness clips so the wire stays away from the exhaust.

Step 7: Lower the vehicle and verify repair

• Remove the tools, lower the vehicle, and reconnect the battery if you disconnected it.
• Start the engine and check for exhaust leaks, warning lights, or loose wiring.
• If the check engine light stays on, clear codes with a scan tool and perform a short drive cycle.

---

✅ After Repair

• Road test the vehicle and make sure the engine runs smoothly.
• Check that the warning light does not return.
• Inspect the sensor harness again after the test drive to confirm it is not touching the exhaust.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
