🔧 Altima - Oxygen Sensor Replacement

Replacing an oxygen sensor on your Altima involves unplugging the sensor, removing it from the exhaust, and installing the correct replacement sensor. Oxygen sensors monitor exhaust oxygen content so the engine computer can adjust fuel mixture and keep emissions under control.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: This guide covers replacement of either upstream air/fuel ratio sensor or downstream oxygen sensor; the access point depends on which sensor has failed.

---

⚠️ Safety & Precautions

• ⚠️ Let the exhaust cool completely before touching the sensor or exhaust pipe; it can cause severe burns.
• ⚠️ Work on a level surface and support your Altima with jack stands if you raise it. Never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging sensor connectors to reduce the chance of electrical shorts.
• ⚠️ Do not twist the sensor wiring while removing or installing the sensor.
• ⚠️ If you are replacing an upstream sensor near the exhaust manifold, expect tight space near hot engine components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7/8-inch oxygen sensor socket (specialty)
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• 10mm socket
• 12mm socket
• Flathead screwdriver
• Needle-nose pliers
• Torque wrench 3/8-inch drive
• Penetrating oil
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Mechanic gloves
• Safety glasses
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor or air/fuel ratio sensor - Qty: 1
• Exhaust-safe anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park your Altima on level ground, shift to Park, and set the parking brake.
• Use wheel chocks behind the rear wheels if raising the front of the vehicle.
• Let the engine and exhaust cool for at least 1 hour before starting.
• Use an OBD2 scan tool to read the trouble code and identify the failed sensor location before removal.
• Common sensor naming: Bank 1 is the cylinder bank containing cylinder 1; Sensor 1 is before the catalytic converter, and Sensor 2 is after the catalytic converter.
• Disconnect the negative battery cable with a 10mm socket before unplugging the oxygen sensor connector.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Read the fault code

• Use an OBD2 scan tool to read stored engine codes before replacing parts.
• Look for codes such as P0130-P0167, P0030-P0064, or heater circuit codes.
• Write down the bank and sensor number shown by the scan tool.
• Replace the coded sensor only.

Step 2: Cool and secure the vehicle

• Make sure the exhaust is cool to the touch before working.
• Place wheel chocks behind the rear wheels.
• If you need underside access, use a floor jack rated 2-ton minimum to lift the front of your Altima.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands.

Step 3: Disconnect the battery

• Put on safety glasses and mechanic gloves.
• Use a 10mm socket to loosen the negative battery terminal nut.
• Move the negative cable aside so it cannot spring back onto the battery post.

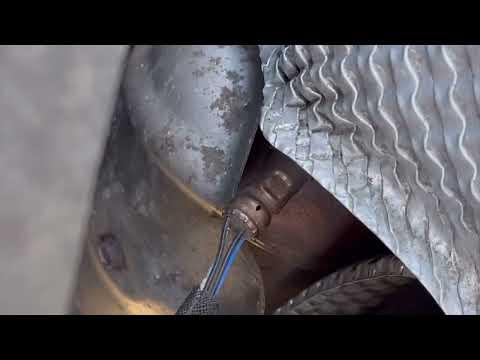

Step 4: Locate the oxygen sensor

• Use the bank and sensor number from your OBD2 scan tool to locate the correct sensor.
• Sensor 1 is mounted before the catalytic converter and is usually accessed from the engine bay or upper exhaust area.
• Sensor 2 is mounted after the catalytic converter and is usually accessed from underneath.
• Use a flathead screwdriver or needle-nose pliers to release any wiring retainers carefully.

Step 5: Unplug the sensor connector

• Follow the sensor wire from the exhaust sensor body to its electrical connector.
• Press the connector lock tab by hand or with a flathead screwdriver.
• Pull the connector halves apart without pulling on the wires.
• Pull plastic connector, not wires.

Step 6: Loosen the old sensor

• Spray penetrating oil around the sensor threads where it enters the exhaust.
• Let the oil soak for 5-10 minutes.
• Slide the 7/8-inch oxygen sensor socket over the sensor wiring and onto the sensor hex.
• Use a 3/8-inch drive ratchet and 3/8-inch drive 6-inch extension if extra reach is needed.
• Turn counterclockwise to break the sensor loose.

Step 7: Remove the old sensor

• Once loose, continue turning the sensor counterclockwise with the 7/8-inch oxygen sensor socket.
• Remove the sensor from the exhaust bung. The bung is the threaded fitting welded into the exhaust pipe.
• Compare the old and new sensors for connector shape, wire length, and thread size.

Step 8: Prepare the new sensor

• If the new sensor threads already have anti-seize coating, do not add more.
• If the threads are bare, apply a tiny amount of exhaust-safe anti-seize compound only to the threads.
• Keep anti-seize away from the sensor tip and vents.
• Do not touch the sensor tip.

Step 9: Install the new sensor

• Start the new sensor by hand to avoid cross-threading.
• Thread it clockwise until snug.
• Use the 7/8-inch oxygen sensor socket and torque wrench 3/8-inch drive to tighten the sensor.
• Torque to 40 Nm (30 ft-lbs).

Step 10: Route and connect the wiring

• Route the sensor wire the same way as the original.
• Use needle-nose pliers to reinstall wiring retainers if needed.
• Keep the wire away from the exhaust pipe, steering shaft, axle, and moving parts.
• Push the connector together until it clicks.

Step 11: Reinstall any removed shields or covers

• If an under-cover or small heat shield was removed, reinstall it now.
• Use a 10mm socket or 12mm socket for the fasteners that match the cover hardware.
• Snug small cover bolts evenly. Do not overtighten plastic under-cover hardware.

Step 12: Reconnect the battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket to tighten the terminal nut until secure.
• Do not overtighten the battery terminal.

Step 13: Lower the vehicle

• Use the floor jack rated 2-ton minimum to raise your Altima slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower the vehicle slowly to the ground.
• Remove the wheel chocks.

---

✅ After Repair

• Use the OBD2 scan tool to clear the engine fault code.
• Start the engine and let it idle for a few minutes.
• Check that the check engine light stays off after clearing codes.
• Listen for exhaust leaks near the sensor. A leak may sound like ticking or puffing.
• Take a short 10-15 minute test drive with gentle acceleration and steady cruising.
• Recheck for pending codes with the OBD2 scan tool after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$520 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $150-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.8-1.5 hours.

---
