🔧 Oxygen Sensor - Replacement

This guide covers replacing the oxygen sensors on your RAV4’s 2.5L engine. Since you asked generally, I’m including both the upstream sensor and the downstream sensor path, because they are serviced differently.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Exhaust components get very hot. Let the vehicle cool completely before starting.
• Use jack stands on solid ground if you need to get underneath. Never rely on a jack alone.
• Disconnect the negative battery cable if you will be working near wiring connectors for a long time.
• Do not pull on the sensor wire. Unplug the connector first, then remove the sensor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Oxygen sensor socket 22mm
• 3/8-inch ratchet
• 3/8-inch breaker bar
• Torque wrench
• Penetrating oil
• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Trim clip tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream oxygen sensor - Qty: 1

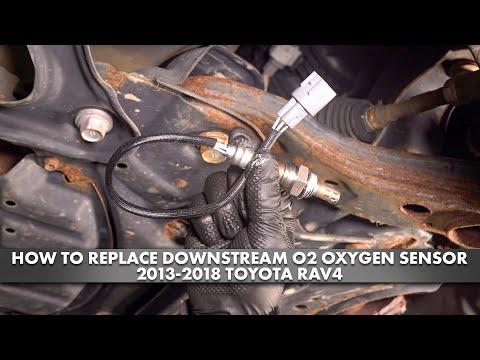

• Downstream oxygen sensor - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the exhaust cool fully before touching anything underneath.
• If replacing the upstream sensor, it is located on the exhaust manifold area.
• If replacing the downstream sensor, it is located farther back in the exhaust system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle if needed

• Use the floor jack (rated 3-ton minimum) to lift the front of the vehicle if you need underbody access.
• Support it with jack stands (rated for vehicle weight).
• Use wheel chocks at the rear wheels.

Step 2: Locate the sensor

• Find the oxygen sensor you are replacing on the exhaust.
• The upstream sensor is closer to the engine.
• The downstream sensor is farther back after the catalytic converter.

Step 3: Disconnect the sensor connector

• Use a trim clip tool if the wiring is clipped to brackets or retainers.
• Unplug the sensor connector carefully.
• Press the lock tab fully before pulling.

Step 4: Loosen the old sensor

• Spray penetrating oil on the sensor threads if rust is present.
• Use the oxygen sensor socket 22mm with a 3/8-inch ratchet or 3/8-inch breaker bar to remove the sensor.
• If it is tight, work it slowly to avoid damaging the bung in the exhaust.

Step 5: Install the new sensor

• Compare the new sensor to the old one before installing.
• Thread it in by hand first to avoid cross-threading.
• Use the oxygen sensor socket 22mm to tighten it.
• Torque to 44 Nm (32 ft-lbs).

Step 6: Reconnect the wiring

• Plug the connector back in until it clicks.
• Route the wire exactly like the original so it stays away from hot exhaust parts.
• Reinstall any clips or retainers using the trim clip tool.

Step 7: Lower the vehicle

• Remove the tools and lower the vehicle carefully from the jack stands with the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Start the engine and check for exhaust leaks or warning lights.
• Use a scan tool to clear any stored oxygen sensor codes.
• Drive normally and confirm the check engine light stays off.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$600 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $170-$350 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
