🔧 Highlander - Oxygen Sensor Replacement

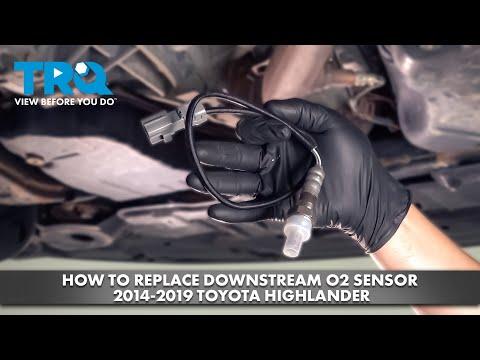

This repair replaces a faulty oxygen sensor, also called an O2 sensor. Your Highlander uses oxygen sensors in the exhaust system to help the engine computer control fuel mixture and monitor catalytic converter performance.

Assumption: This guide covers the common upstream or downstream O2 sensor replacement on the 2.7L engine. Use the new sensor location that matches your trouble code.

Difficulty Level: Beginner to Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool exhaust system. Exhaust parts can cause severe burns.
• ⚠️ Support your Highlander with jack stands before going underneath. Never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging the sensor connector.
• ⚠️ Do not twist or pull on the sensor wiring. The wires are easily damaged.
• ⚠️ Use only oxygen-sensor-safe anti-seize if the new sensor does not already have coating on the threads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• 3/8-inch extension
• 22mm oxygen sensor socket (specialty)
• 22mm wrench
• Torque wrench rated 10-80 Nm
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Trim clip remover
• Penetrating oil
• Safety glasses
• Mechanic gloves
• OBD2 scan tool

An oxygen sensor socket is a slotted 22mm socket that fits over the sensor wire while gripping the sensor body.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Oxygen sensor matching fault location - Qty: 1
• Oxygen-sensor-safe anti-seize compound - Qty: 1
• Exhaust heat shield clips - Qty: As needed

Sensor location note: Bank 1 Sensor 1 is the upstream sensor before the catalytic converter. Bank 1 Sensor 2 is the downstream sensor after the catalytic converter. Your inline-4 engine has only one bank.

---

📋 Before You Begin

• 🚗 Park your Highlander on level ground and set the parking brake.
• 🧊 Let the engine and exhaust cool for at least 1 hour.
• 🛞 Place wheel chocks behind the rear wheels if lifting the front.
• 🔎 Use an OBD2 scan tool to confirm the code points to Sensor 1 or Sensor 2 before replacing parts.
• 🔋 Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm Which Sensor You Are Replacing

• Use the OBD2 scan tool to read the stored diagnostic code.
• If the code says Bank 1 Sensor 1, replace the upstream sensor located in the exhaust manifold area before the catalytic converter.
• If the code says Bank 1 Sensor 2, replace the downstream sensor located after the catalytic converter under the vehicle.
• Match the code before buying parts.

Step 2: Disconnect the Battery

• Use a 10mm socket and 3/8-inch ratchet to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post and move it aside so it cannot spring back.

Step 3: Raise the Vehicle if Replacing the Downstream Sensor

• Use the floor jack rated 3-ton minimum to lift the front of your Highlander at the front center jacking point.
• Place jack stands rated 3-ton minimum under the approved front support points.
• Lower the vehicle gently onto the jack stands.
• Keep the wheel chocks installed behind the rear wheels.
• If replacing the upstream sensor from above, you may not need to lift the vehicle.

Step 4: Locate the Oxygen Sensor Connector

• Put on safety glasses and mechanic gloves.
• Follow the oxygen sensor wire from the exhaust pipe or manifold to its electrical connector.
• Use a trim clip remover to release any plastic wire clips from brackets.
• Press the connector lock tab by hand and unplug the sensor connector.
• Do not pull on the wires.

Step 5: Loosen the Old Oxygen Sensor

• Spray penetrating oil on the sensor threads where it screws into the exhaust.
• Let the penetrating oil soak for 5-10 minutes.
• Slide the 22mm oxygen sensor socket over the sensor wire and onto the sensor.
• Use the 3/8-inch ratchet and 3/8-inch extension to turn the sensor counterclockwise.
• If space is tight, use a 22mm wrench to break it loose.
• Slow pressure works better than jerking.

Step 6: Remove the Old Sensor

• Once loose, unscrew the sensor the rest of the way by hand.
• Compare the old sensor to the new sensor. The connector shape and wire length should match.
• If the old sensor threads look damaged, do not force the new sensor into the exhaust bung. The bung is the threaded mounting hole welded into the exhaust pipe.

Step 7: Prepare the New Oxygen Sensor

• Check the new sensor threads.
• If the new sensor already has gray or silver coating on the threads, do not add more anti-seize.
• If the threads are bare, apply a very small amount of oxygen-sensor-safe anti-seize compound to the threads only.
• Keep anti-seize away from the sensor tip.

Step 8: Install the New Oxygen Sensor

• Thread the new oxygen sensor into the exhaust by hand first.
• Turn it several full turns by hand to avoid cross-threading. Cross-threading means the sensor is going in crooked and can damage the exhaust threads.
• Use the 22mm oxygen sensor socket and torque wrench rated 10-80 Nm to tighten the sensor.
• Torque to 44 Nm (32 ft-lbs)
• If your replacement sensor instructions list a different torque, follow the sensor manufacturer’s specification.

Step 9: Reconnect the Wiring

• Route the sensor wire the same way the original wire was routed.
• Use the trim clip remover to help reinstall any wire retainers or clips.
• Plug the oxygen sensor connector in until it clicks.
• Make sure the wire is not touching the exhaust pipe, catalytic converter, axle, or steering components.

Step 10: Lower the Vehicle

• If the vehicle was raised, use the floor jack rated 3-ton minimum to lift it slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower your Highlander slowly to the ground.
• Remove the wheel chocks.

Step 11: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket and 3/8-inch ratchet to tighten the terminal nut snugly.
• Do not overtighten the battery terminal.

Step 12: Clear Codes and Verify Repair

• Use the OBD2 scan tool to clear stored engine codes.
• Start the engine and let it idle.
• Check for exhaust leaks near the sensor. A ticking sound can mean a leak.
• Take a short test drive and recheck for warning lights.

---

✅ After Repair

• ✅ The check engine light may stay off right away after clearing codes, but readiness monitors need drive time to complete.
• ✅ Drive normally for several trips so the engine computer can relearn oxygen sensor readings.
• ✅ Recheck for pending codes with the OBD2 scan tool after 1-2 days.
• ✅ If the same code returns, inspect wiring, exhaust leaks, fuel trim issues, or catalytic converter condition before replacing another sensor.

---
