🔧 Oxygen Sensor - Replacement

This covers the sensor replacement on your Outback, including the upstream air-fuel ratio sensor and the downstream rear oxygen sensor. The exact location matters because the front sensor is threaded into the exhaust manifold area, while the rear sensor is farther back in the exhaust. If you only need one sensor, follow the matching step set below.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Let the exhaust cool completely before starting. Hot exhaust parts can burn you.
• Disconnect the negative battery cable before unplugging sensors to avoid setting faults.
• Use jack stands if you need to get under the vehicle. Never rely on a jack alone.
• Do not let oil, grease, or anti-seize get on the sensor tip.
• Use a sensor socket or line wrench carefully to avoid twisting the harness.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 14mm wrench
• 22mm oxygen sensor socket
• Ratchet
• 3/8-inch breaker bar
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves
• Penetrating oil
• Torque wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Upstream air-fuel ratio sensor - Qty: 1
• Downstream oxygen sensor - Qty: 1
• Sensor thread anti-seize - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or key fob from the vehicle.
• Let the exhaust cool fully.
• Disconnect the negative battery cable with a 10mm wrench.
• If replacing the rear sensor, raise the vehicle and support it with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the sensor

• Find the sensor you are replacing.

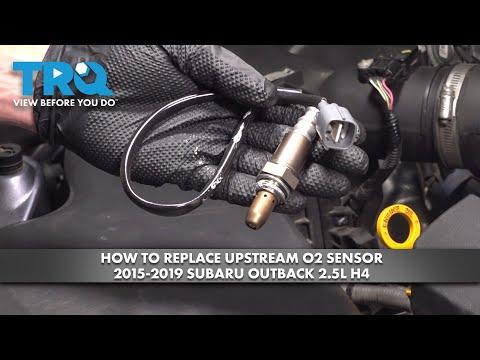

• The upstream air-fuel ratio sensor is near the engine exhaust manifold.
• The downstream oxygen sensor is farther back in the exhaust pipe.
• Trace the wire before loosening anything.

Step 2: Disconnect the sensor connector

• Use your hands to release the connector lock and unplug the sensor.
• Follow the wire to its clip points and free it carefully.
• Do not pull on the wire itself.

Step 3: Loosen the old sensor

• Spray penetrating oil on the sensor threads if they are rusty.
• Use a 22mm oxygen sensor socket and ratchet to break the sensor loose.
• If it is tight, use a 3/8-inch breaker bar for extra leverage.
• Remove the sensor by hand once it turns freely.

Step 4: Install the new sensor

• Compare the new sensor to the old one to confirm the connector and harness length match.
• Start the new sensor by hand to avoid cross-threading.
• Tighten with the 22mm oxygen sensor socket.
• Torque to 44 Nm (32 ft-lbs).
• Start it by hand first.

Step 5: Reconnect and secure the harness

• Plug the connector back in until it clicks.
• Reinstall the wire clips so the harness stays away from the exhaust.
• Make sure the cable is not stretched, pinched, or touching hot parts.

Step 6: Reassemble and lower the vehicle

• If the vehicle was lifted, remove the jack stands and lower it with the floor jack.
• Reconnect the negative battery cable with the 10mm wrench.

---

✅ After Repair

• Start the engine and let it idle.
• Check for exhaust leaks and verify the engine light is off.
• If the check engine light stays on, scan and clear codes with an OBD-II scanner.
• Take a short test drive and confirm normal drivability.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$650 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $190-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
